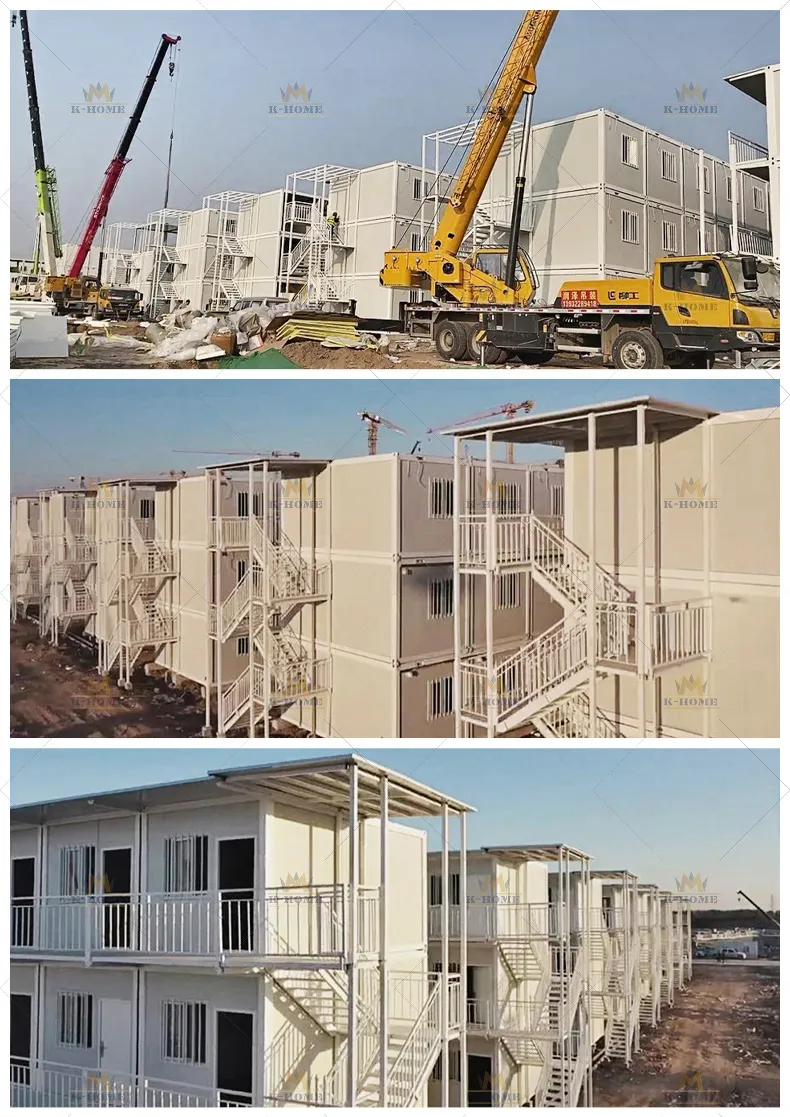

Affordable Emergency Housing Repossessed Mobile Dorm for Worker
Because the construction site is limited by the site, service life, and budget cost, only the prefabricated houses can be installed. Fast assembly flat pack containers are suitable for construction sites with high-end demand for superimposed products, such as temporary places of project offices, residential buildings, meeting rooms, toilets, overall kitchen, restaurants, etc.

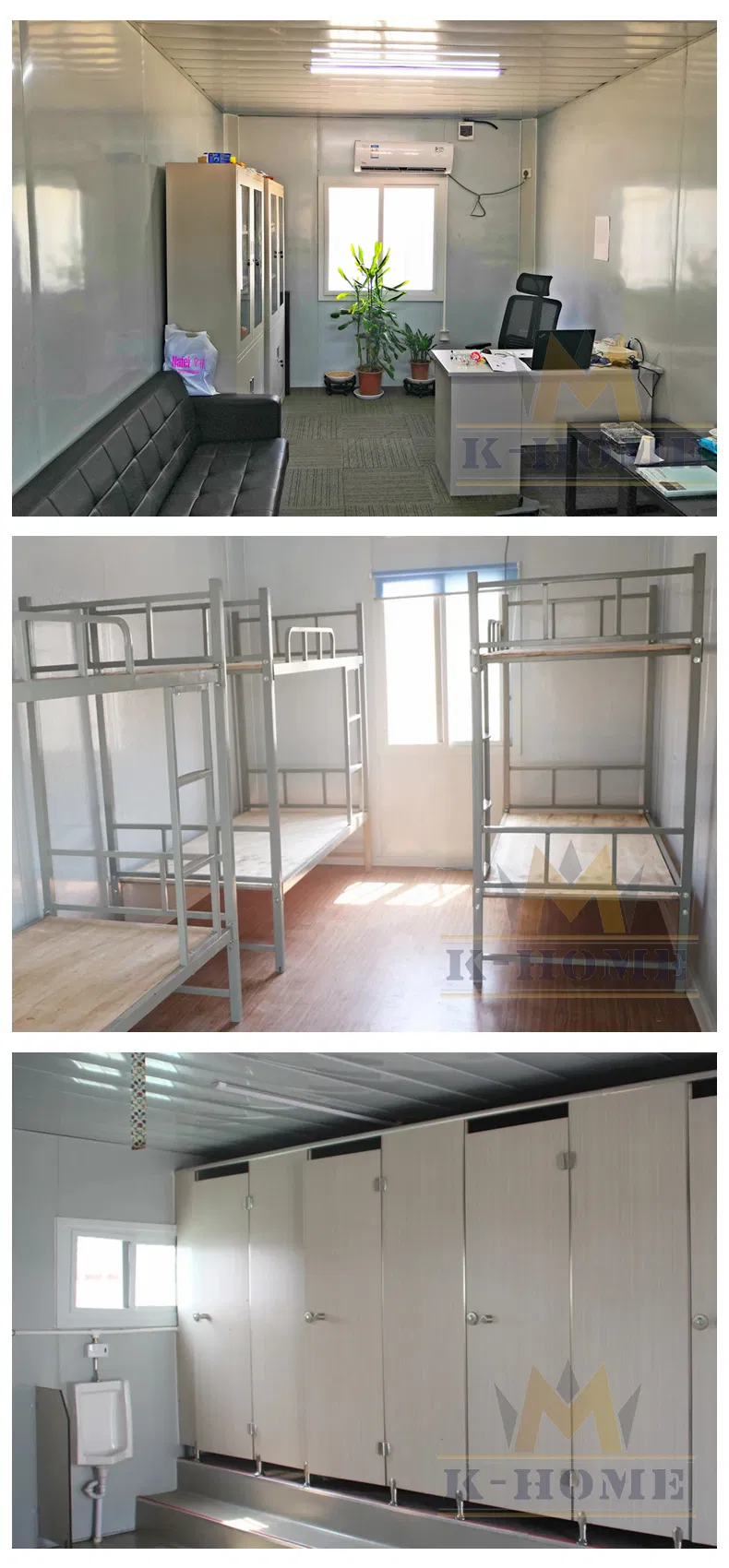

At the same time, this modular container house can also be used for the field survey, mobile office, and dormitory, emergency rooms such as a military command center, other field workers. The whole series of buildings have strong adaptability to the environment and simple installation.

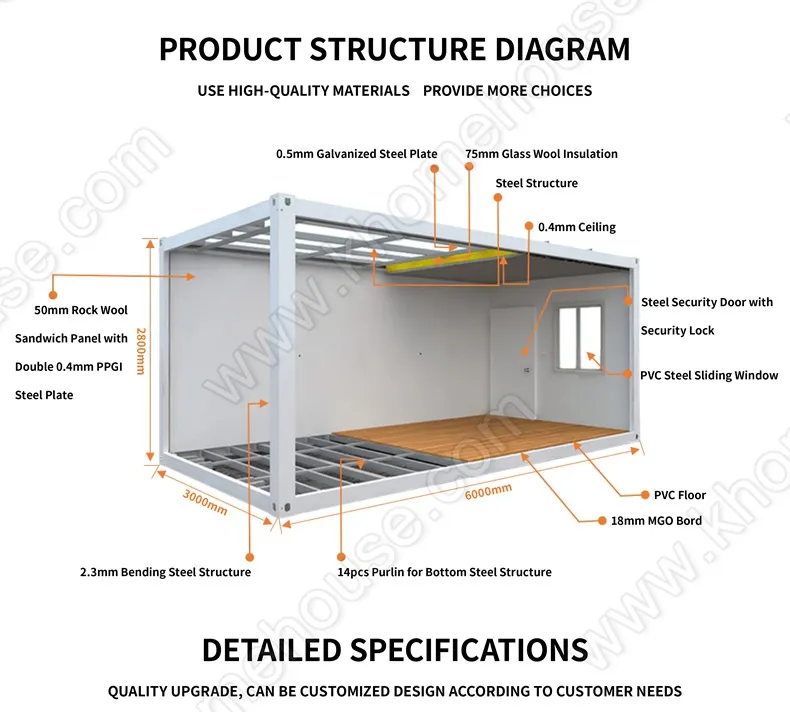

| Part 1: Roof System | ||
| i. | Steel frame | Q235 galvanized fitting |
| ii. | Roof insulation | Blue color steel pre-coated 0.4mm outside; 50mm glass wool insulation |
| iii. | Roof ceiling | Shaped steel plate with different patterns |
| Part 2: Floor System | ||
| i. | Steel frame | 3mm Galvanized Steel main structure + 1.5mm square tube secondary beam |
| ii. | Floor | 15mm chipboard + PVC leather floor |
| Part 3: Column System | ||
| i. | Column | 2.5mm Shaped Galvanized Steel |
| Part 4: Sandwich Wall System | ||
| i. | Wall Panel | 50mm EPS Foam Sandwich Panel; 0.35mm thickness steel (Gray/White) |
| Part 5: Door & Window System | ||
| i. | Door | Steel door; Size: 2000*980mm |
| ii. | Window | Aluminum alloy double hollow glass sliding window; Size: 1200*1000mm |
| Part 6: Electric System | ||
| i. | Components | LED light, A-SW double sockets, air-switch, electrical box with safety protection |
| Part 7: Accessories | ||
| i. | Others | Electric wire; sealant; wiring tube; screws and other accessories |
We are committed to providing professional maintenance and support for all our customers:
