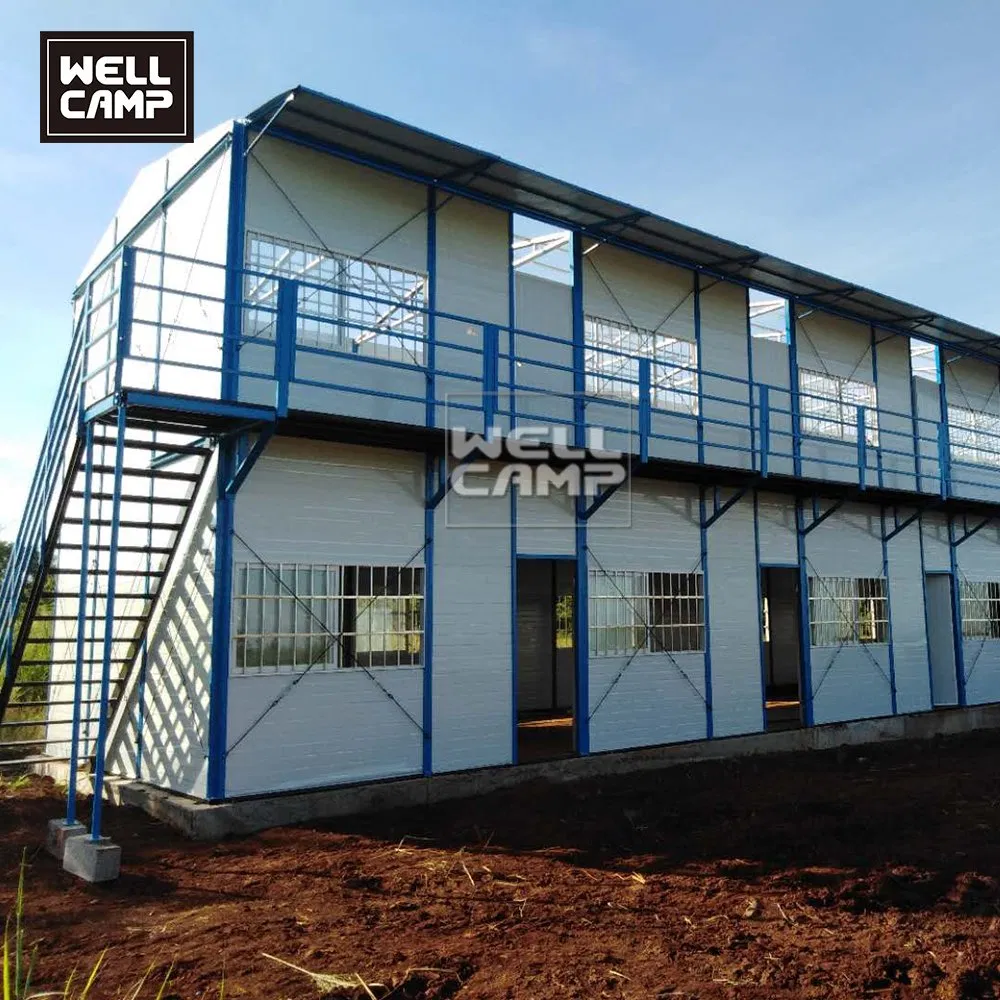

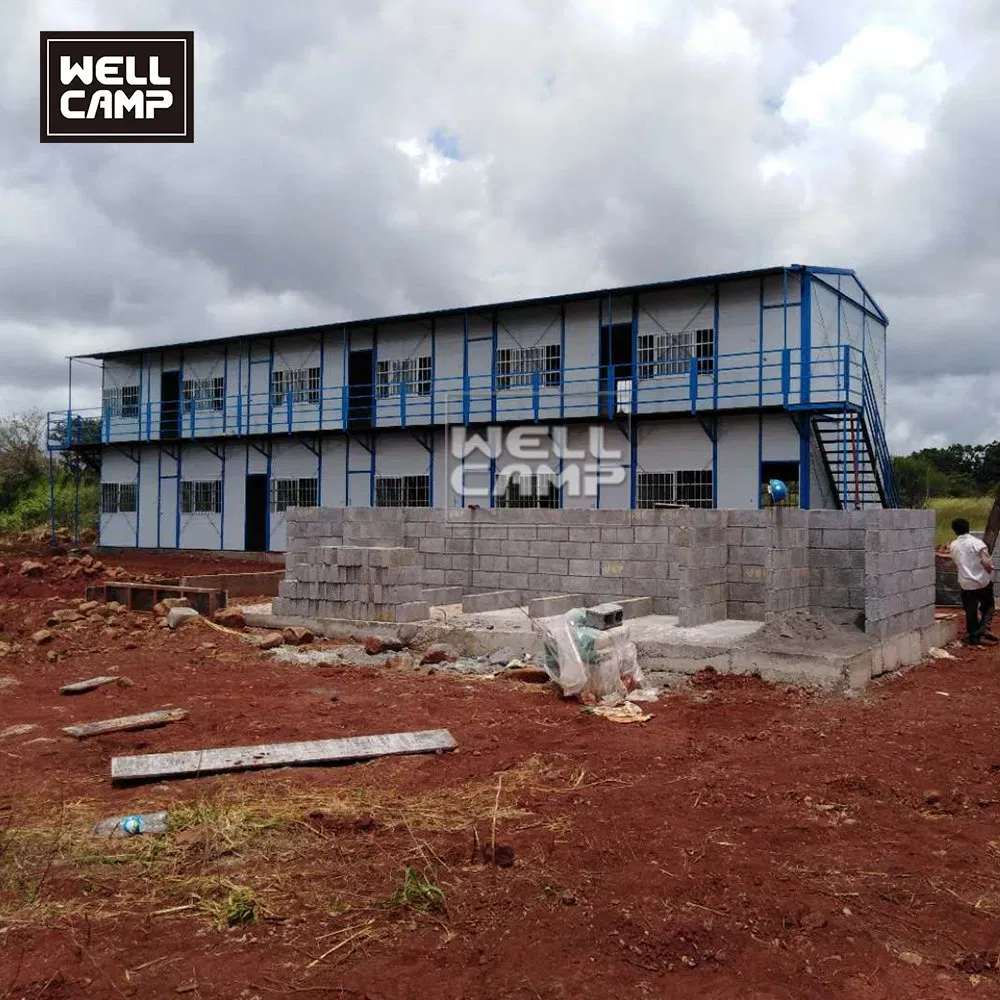

Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
1 / 5
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose
Construction Site Labor Camp Wellcamp Modular Building Portable K Hose

Construction Site Labor Camp Wellcamp Modular Building Portable K Hose

Customization: Available
Material: Steel Structure+Sandwich Panel
Length: 22m
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
Prefabricated K House
Width
5.62m
Height
5.7m
Steel Structure Thickness
1.6-1.8 mm
Roof Thickness
50 mm
Wall Thickness
50 mm
Usage
Dormitories, Temporary Offices, Canteen, Storage, Classroom
Certification
CE, ISO, SGS
HS Code
9406900090
Production Capacity
50000 M2 Per Month
🏗️ Product Description

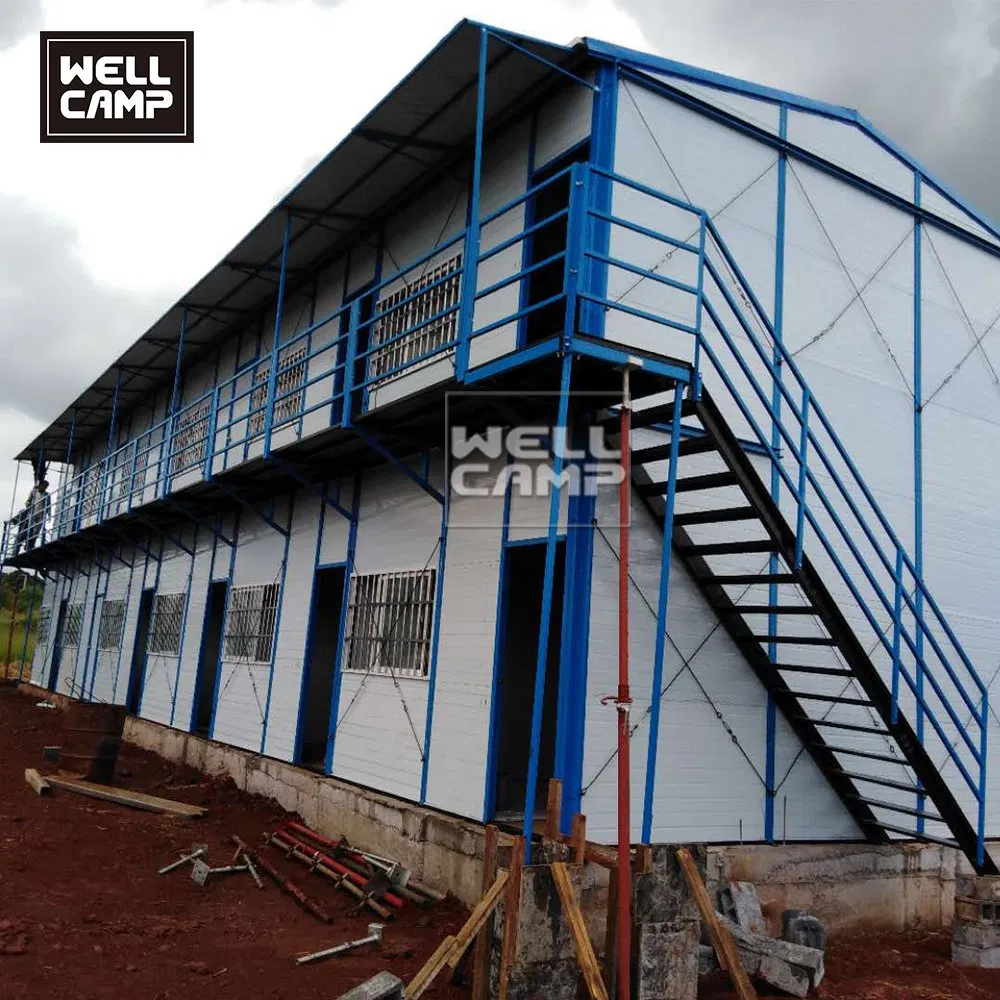

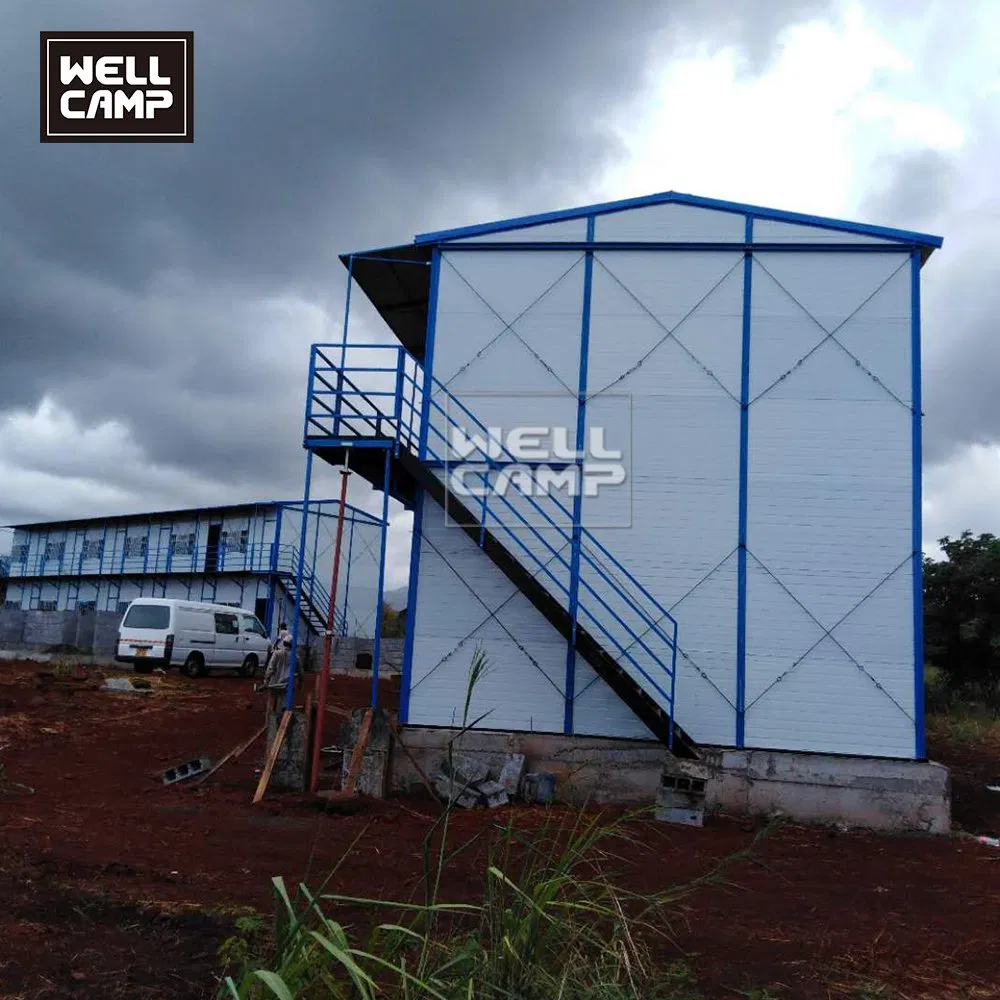

Two Floor Prefabricated Modular K House Labor Camp

Prefabricated K houses come in different sizes, utilizing fixed parameters and formulas to calculate precise dimensions and areas. A common design is the 3K*12K*6P model (5.62m * 22m * 5.7H), offering a 289.89m² area across two floors, including two stairs.

💡 Key Features:

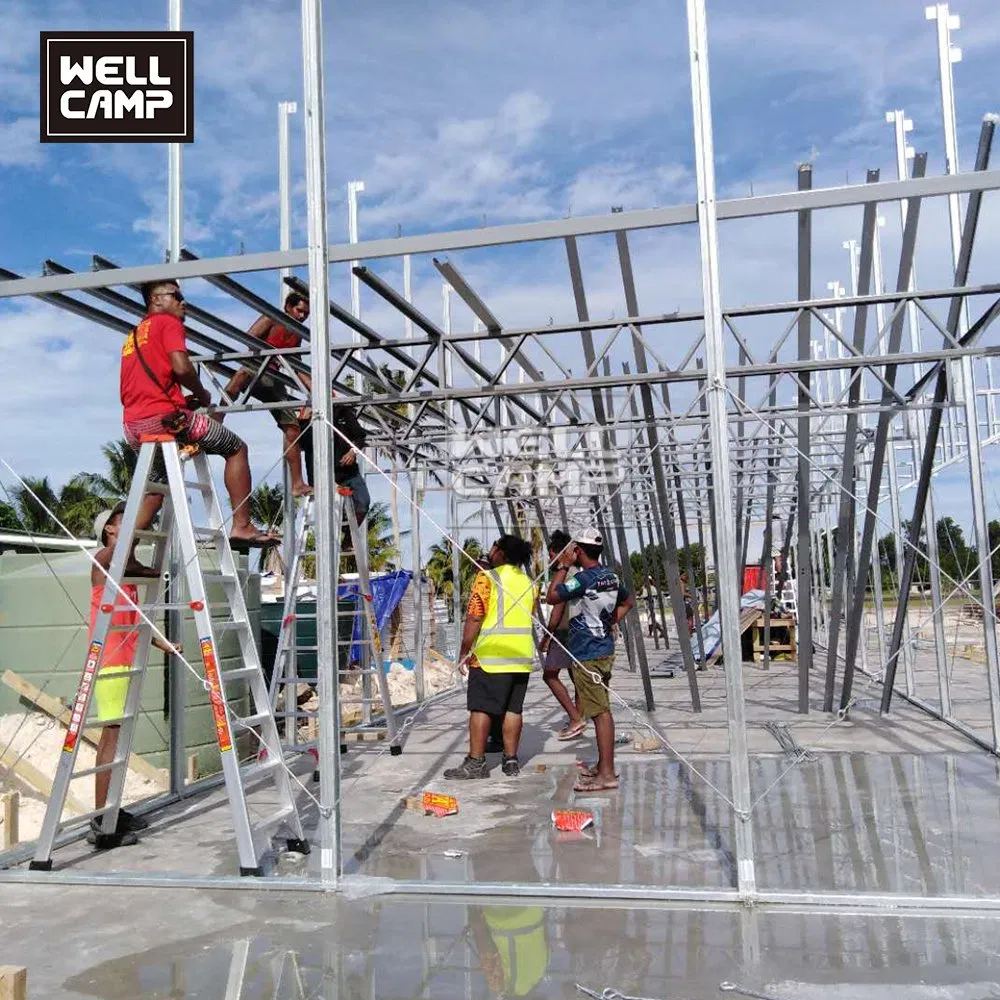

  • Main structure crafted from high-quality "C" section steel.
  • Wall and roof options: EPS, IEPS, or Glass wool sandwich panels.
  • Highly efficient: 6 workers can assemble 100sqm in just one day.
  • Flexible configuration: Available in 1, 2, or 3-floor layouts.

This is the most economic option for site accommodation and labor camp setups. These modular buildings have been successfully deployed in Malaysia, India, Thailand, Myanmar, Vietnam, Oman, Saudi Arabia, Qatar, Indonesia, UAE, Philippines, Kenya, Uganda, Tanzania, Congo, Nigeria, Ghana, Mozambique, and many other global regions.

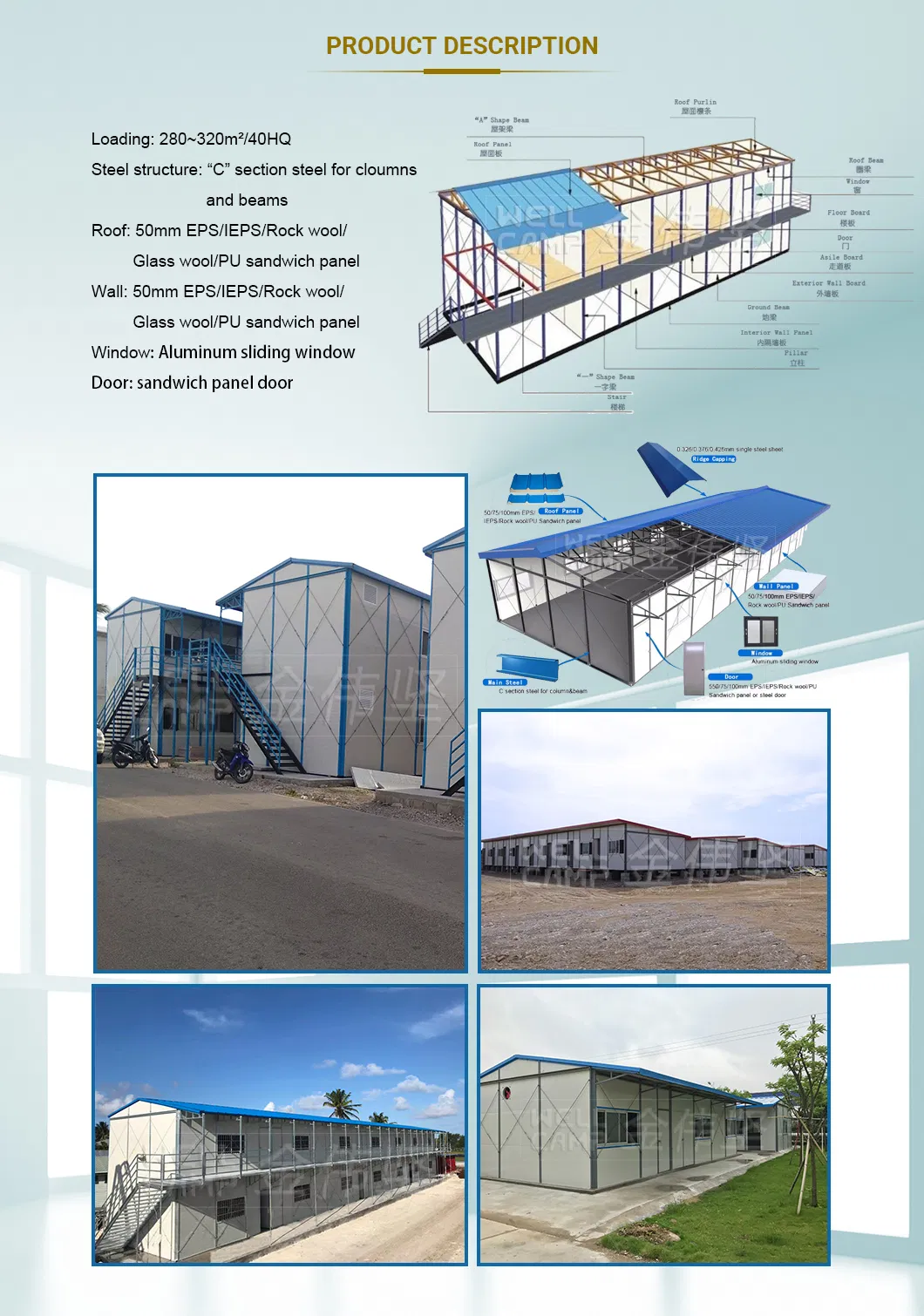

Prefabricated Modular K House Layout
🚀 Applications & Projects

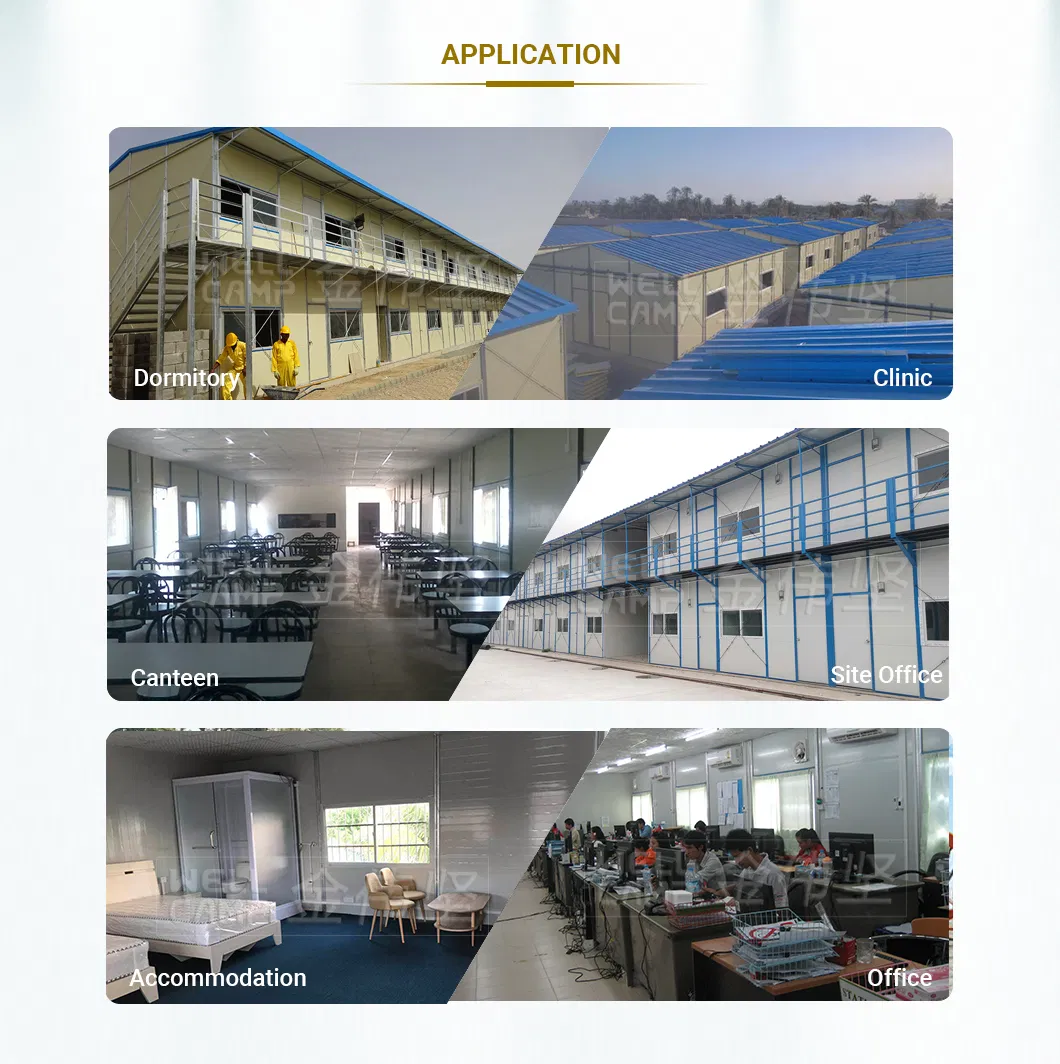

Labor Camp Application
Construction Site View
Modular Building Installation
Prefab House Structure
Temporary Accommodation
Site Dormitory
Exterior Finishing
K House Design
Modular Construction Process
❓ Frequently Asked Questions
What is the main material of the Prefabricated K House?
The main structure is made of "C" section steel with a thickness of 1.6-1.8 mm. The walls and roof consist of 50mm sandwich panels (EPS, IEPS, or Glass wool) providing excellent insulation.
How fast can these houses be installed?
The K house is designed for rapid assembly. On average, a team of 6 skilled workers can complete approximately 100 square meters of construction in a single day.
Is the design customizable for different floor levels?
Yes, the modular system is flexible and can be designed as a 1-floor, 2-floor, or 3-floor building depending on your project requirements and site space.
What are the primary applications for this type of building?
It is commonly used for labor camps, site accommodation, temporary offices, classrooms, canteens, and storage facilities in construction, mining, and disaster relief sectors.

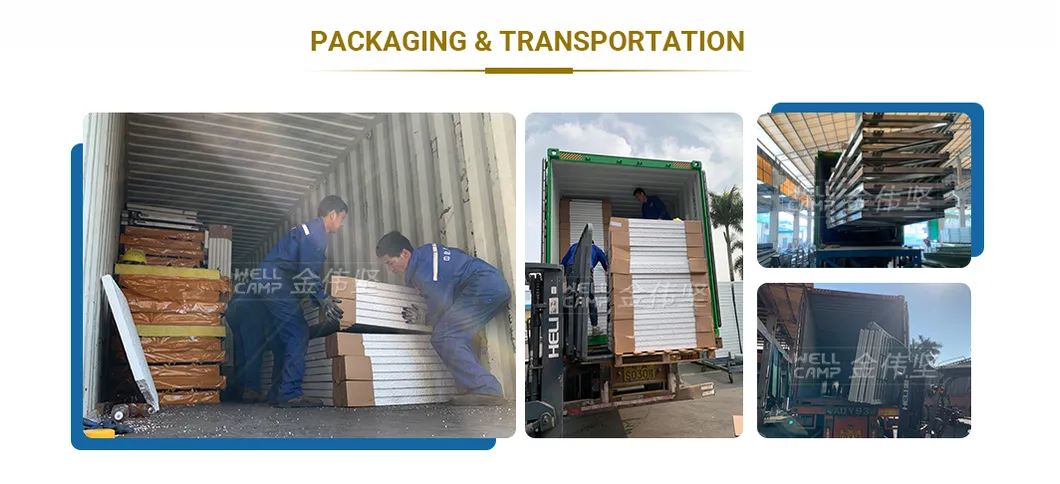

How many units can fit in a shipping container?
One 40'HQ container can typically load around 280-320 square meters of the prefabricated structure, making it highly cost-effective for international transport.
What certifications does the product have?
The product is fully certified with CE, ISO, and SGS standards, ensuring compliance with international quality and safety regulations.
Technical Specifications Diagram
