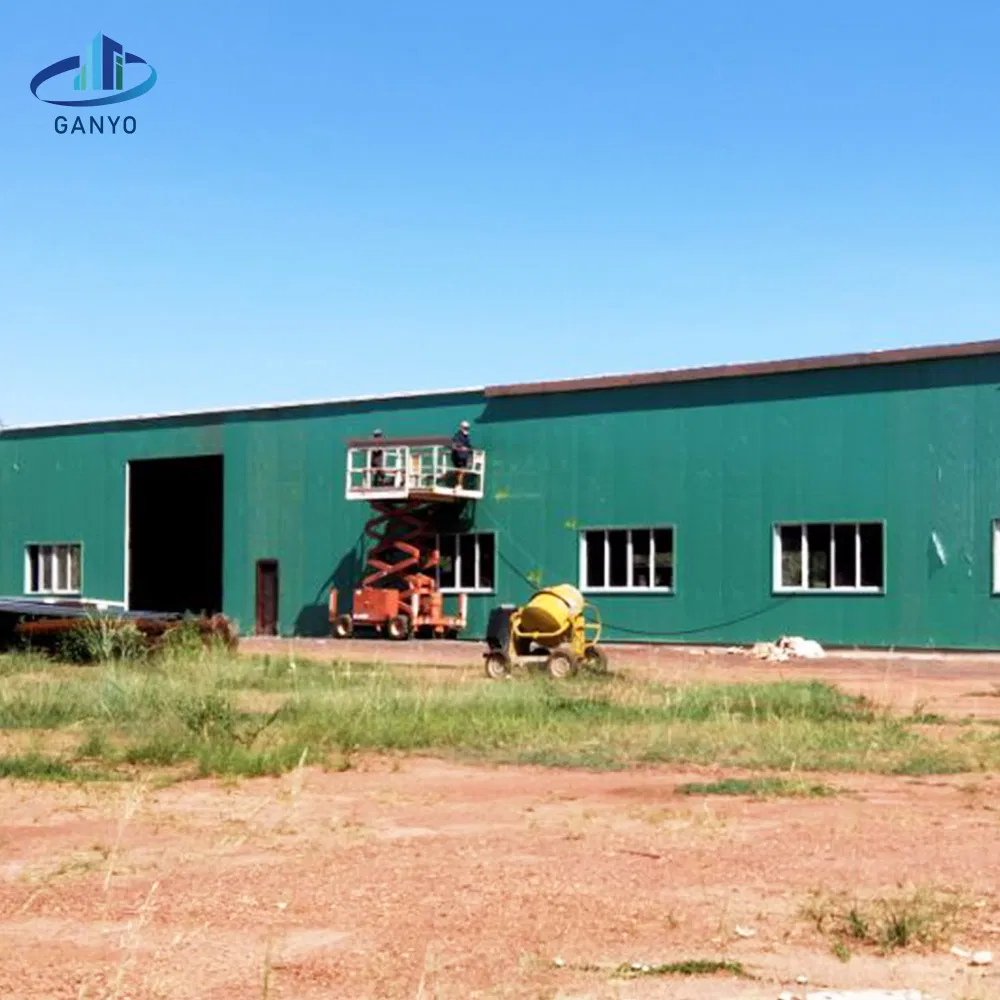

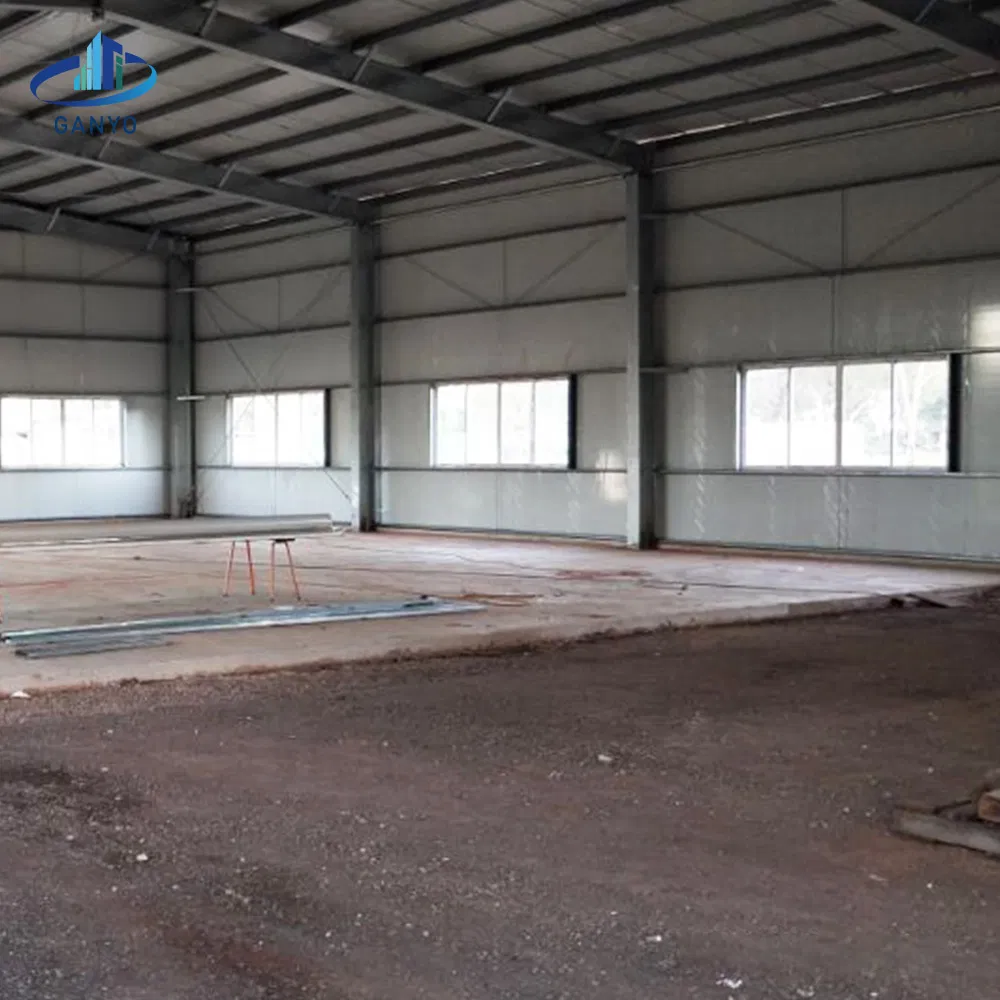

Modern Steel Frame Housing Solutions for Department Buildings

Customization:	Available
After-sales Service:	Full Drawing, Install Guide or Training
Connection Form:	Bolt Connection

Specifications & Basic Info

Model NO.GY-SW1517

MaterialSteel Structure

UsageWarehouse, Dormitories, Workshop

Structure FramePortal Frame

Steel CodeQ355 & Q235

Seismic Grade7 Grade

ConnectionBolts Connection

Wind Loading80km/H-120km/H

Capacity2000 Tons Per Month

Package Weight700.000kg

Advantages of Steel Structure Building

1

Flexible Layout: Versatile interior space design to meet various industrial and residential needs.

2

High Resilience: Excellent ductility and plasticity, providing superior seismic and wind resistance.

3

Fast Construction: Rapid assembly reduces project timelines and ensures a long service life.

4

Cost-Effective: Lightweight materials combined with high structural quality offer a low-cost solution.

5

Eco-Friendly: 100% recyclable or degradable materials, promoting sustainable construction.

Technical Parameters

Component	Description	Material Standard

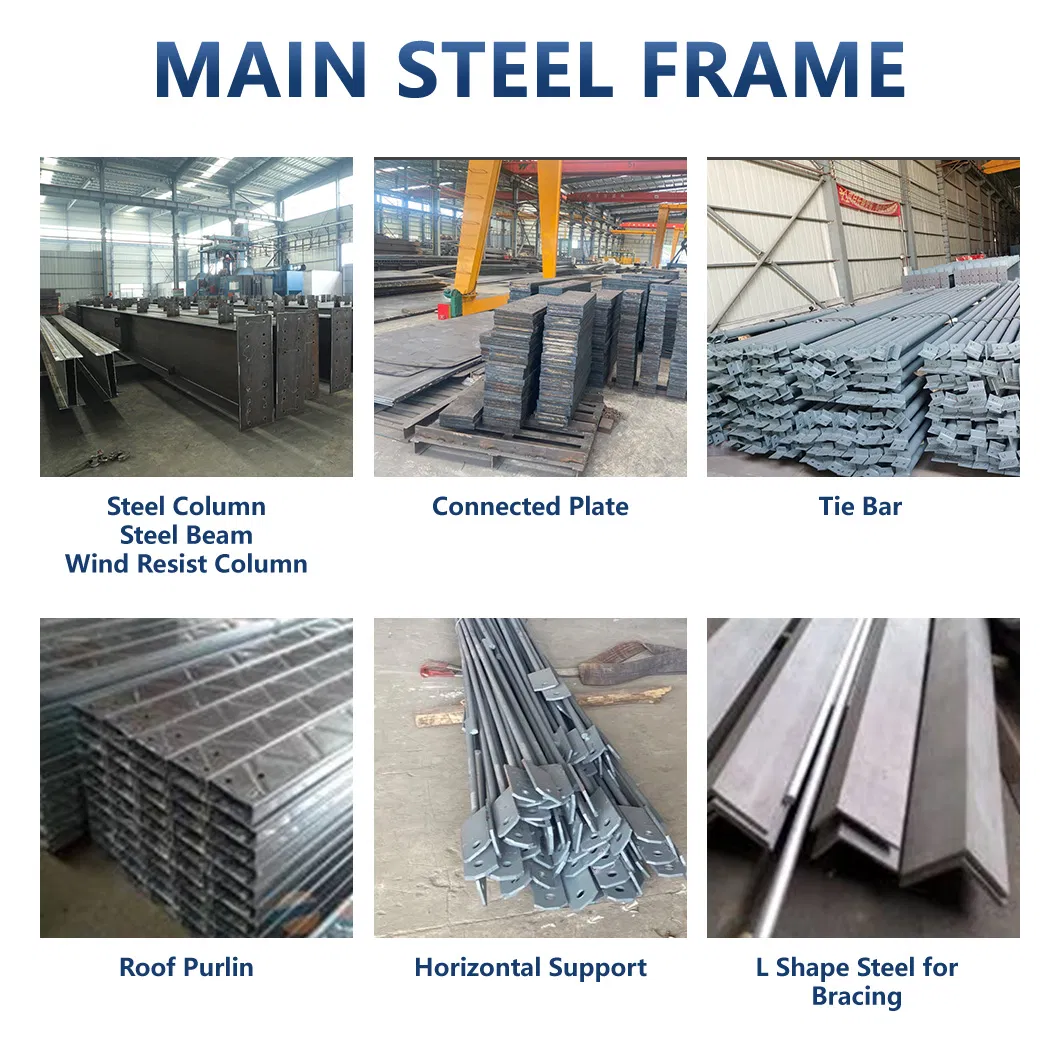

Steel Column/Beam	Hot rolled H-beam or welded H beam	Q355B
Wind Resist Column	Engineered based on building size	Q355B
Tie Bar	¢89*3 Pipe	Q235B
Roof/Wall Purlin	C1605020*2.0 or customized	Q235B Galvanized
Surface Treatment	Painting or Hot-dip Galvanize	Custom Colors

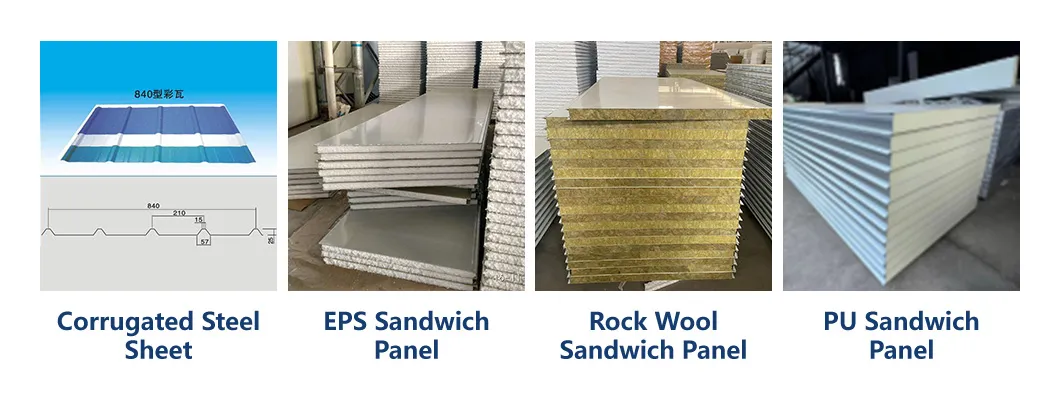

Cladding & Insulation Options

Type	Material Options	Specifications

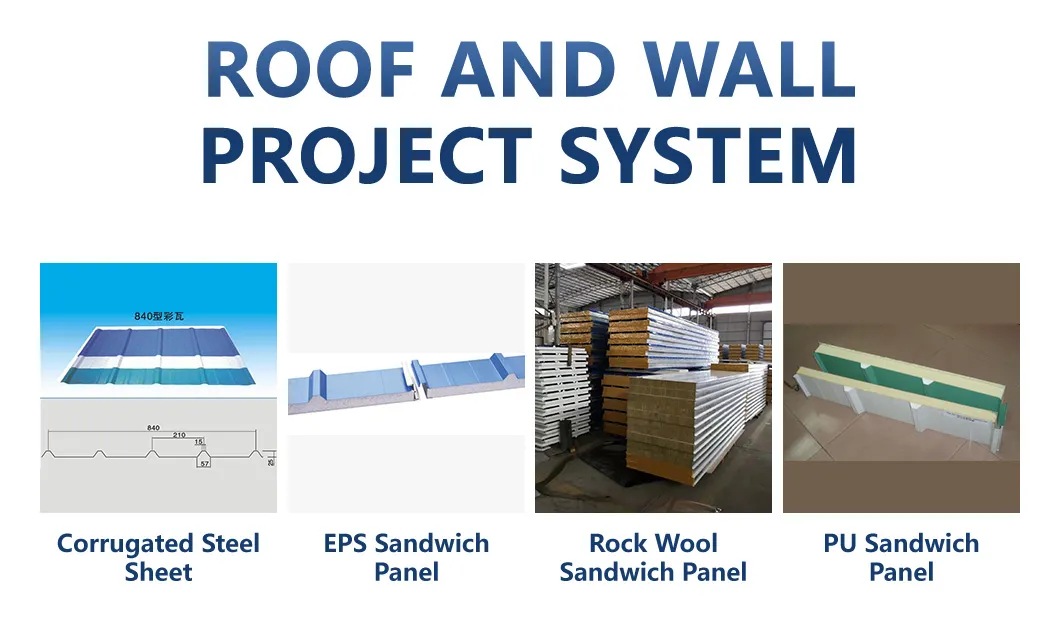

Roof Claddings	Corrugated Steel / EPS / Rock Wool / PU Sandwich Panel	Thickness: 0.426mm - 0.476mm
Wall Claddings	Corrugated Steel / EPS / Rock Wool / PU Sandwich Panel	Width: 950mm - 1150mm

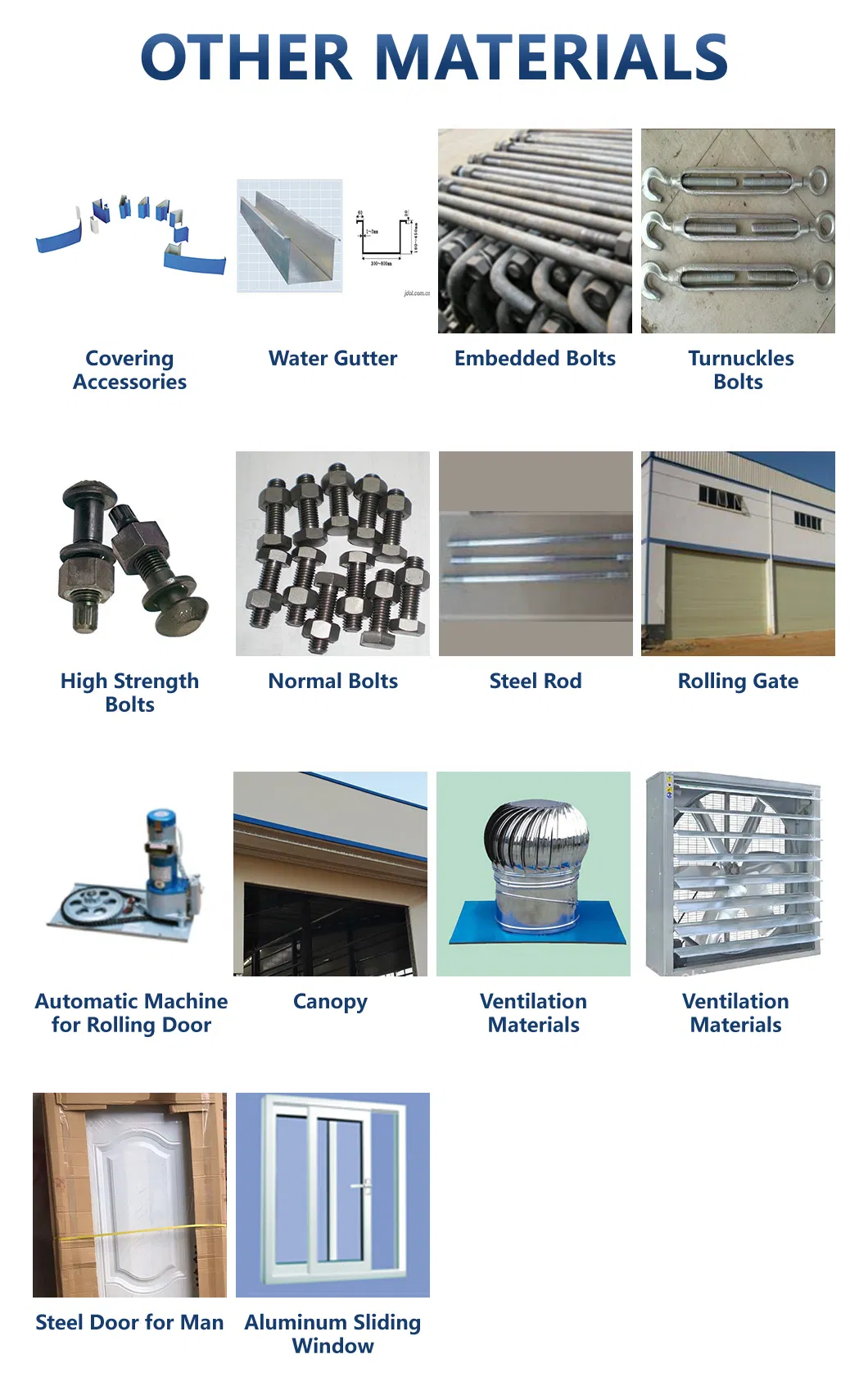

Accessories	Stainless Steel Gutter, PVC Downpipe, High Strength Bolts	Standard & Customized Sizes

Our Professional Services

Design & Engineering

Full solution house design as per your requirement. Our expert team ensures every structural detail is optimized.

Manufacturing

Materials produced under ISO standards using high-technology fabrication works for maximum quality assurance.

Installation Support

Detailed drawings and video guidance provided. We can also send engineers for on-site supervision and training.

Customization Questionnaire

To provide a satisfying design, please consider the following factors:

1. Location and local weather (Wind speed, snow load, seismic rating).
2. Precise building dimensions (Length * Width * Height).
3. Purpose of the building (Warehouse, Workshop, Office, etc.).
4. Thermal insulation requirements (Sandwich panels vs. single steel sheets).
5. Crane requirements (Lifting capacity and height).

Frequently Asked Questions

Q: Are you a manufacturing factory? A: Yes, we are a manufacturing factory. Our quality control flow and professionalism ensure the best quality and competitive pricing.

Q: How do you control the quality of the products? A: We check products at all stages: raw materials, in-process materials, and finished goods. Third-party testing like SGS and BV is available.

Q: Can you provide a full design service? A: Yes, we have an excellent design team that can create full solution drawings based on your specific requirements.

Q: Do you offer overseas installation guidance? A: Yes, we provide detailed installation drawings and videos. We can also provide on-site supervision and training if needed.

Q: What is the typical lifespan of the steel structure? A: Our steel structure buildings are designed for long-term use, typically exceeding 50 years with standard maintenance.

Q: Are the materials used fire-resistant? A: Yes, we offer fire-resistant cladding options like Rock Wool sandwich panels which provide excellent safety ratings.
