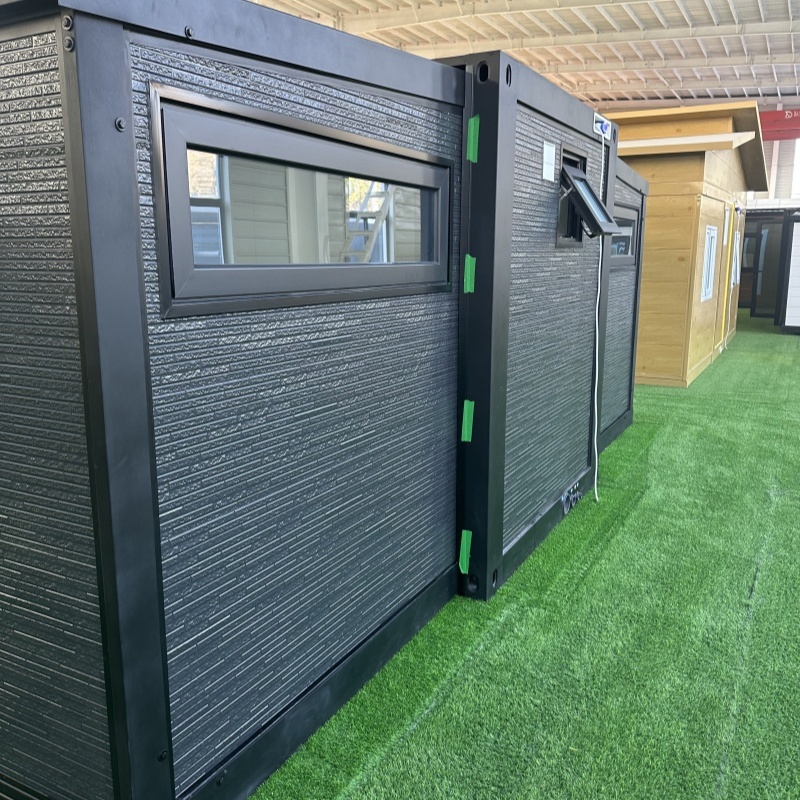

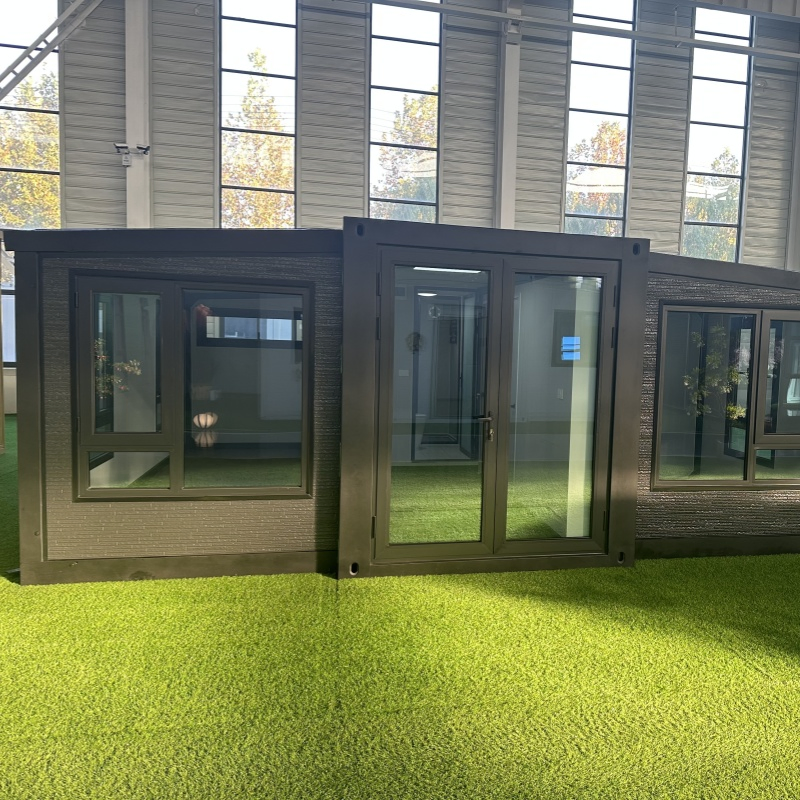

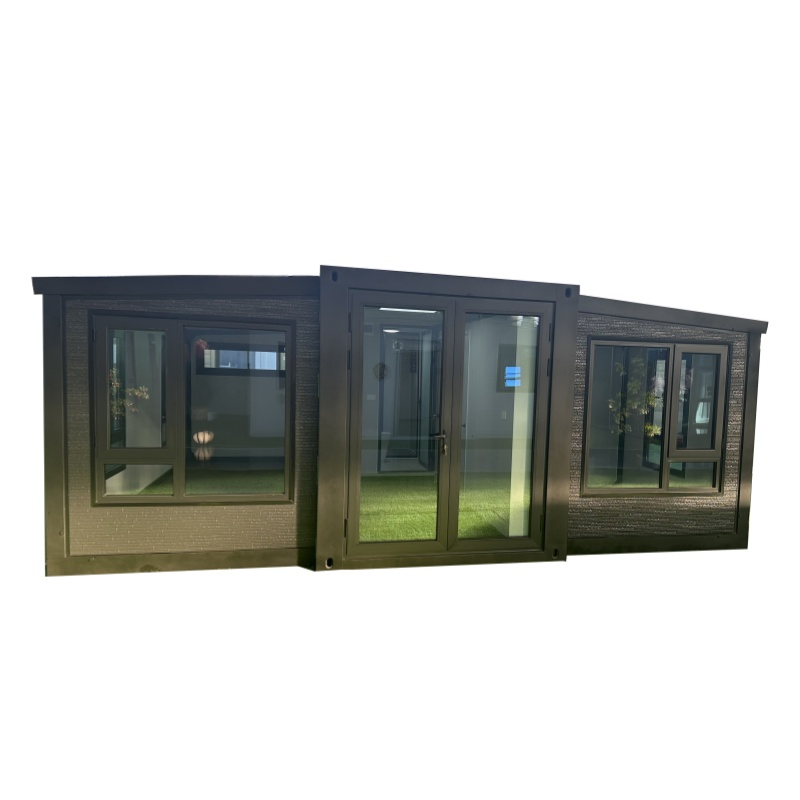

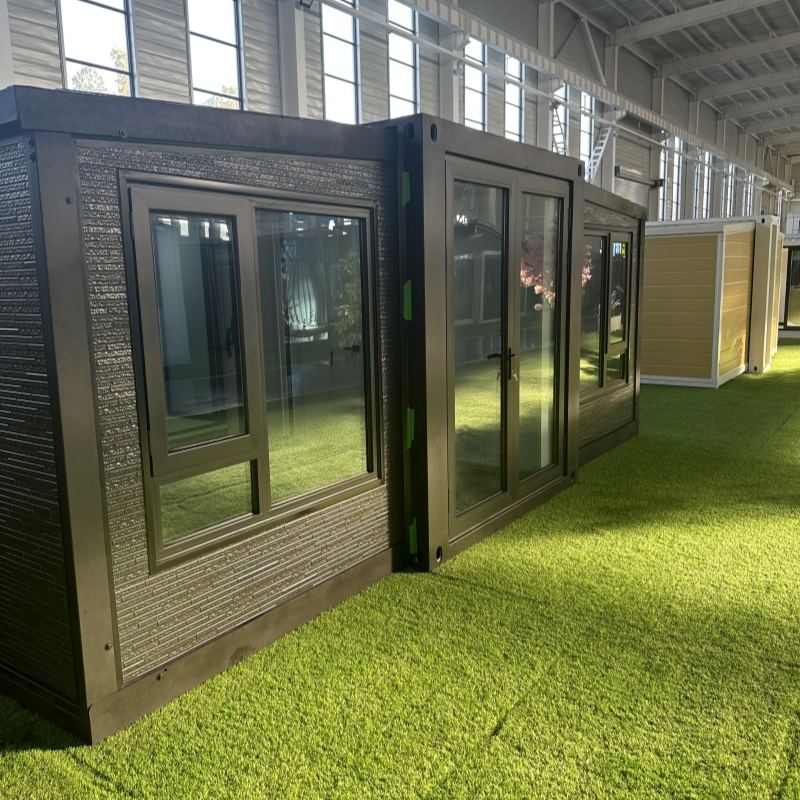

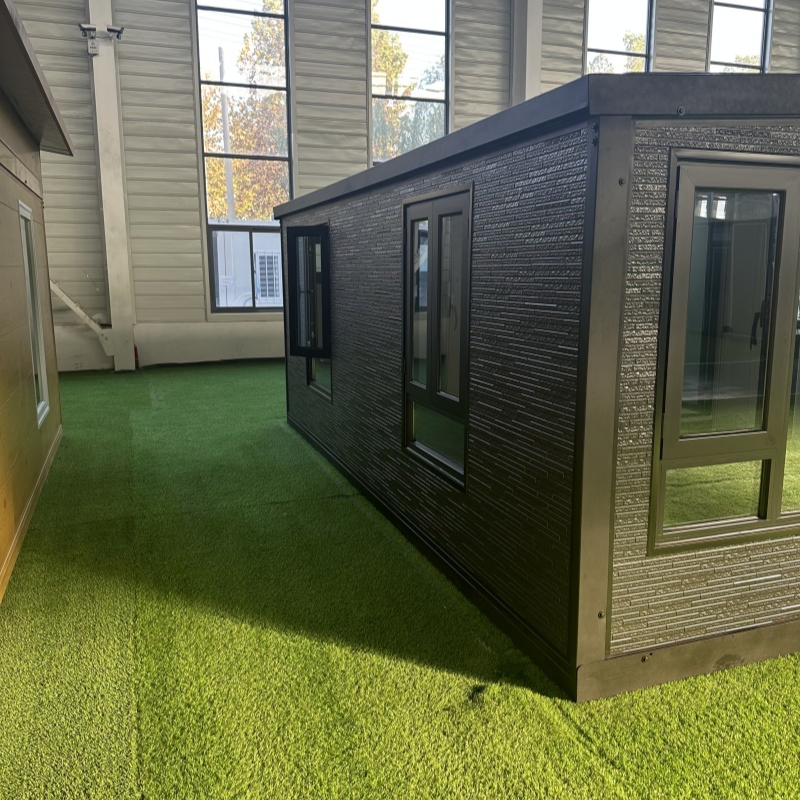

Steel Modular Building with Large Windows for Office and Restroom
Steel Modular Building with Large Windows for Office and Restroom
Steel Modular Building with Large Windows for Office and Restroom
Steel Modular Building with Large Windows for Office and Restroom
Steel Modular Building with Large Windows for Office and Restroom
1 / 5
Steel Modular Building with Large Windows for Office and Restroom
Steel Modular Building with Large Windows for Office and Restroom
Steel Modular Building with Large Windows for Office and Restroom
Steel Modular Building with Large Windows for Office and Restroom
Steel Modular Building with Large Windows for Office and Restroom

Steel Modular Building with Large Windows for Office and Restroom

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Information
Model NO.
T18
Installation
Fast Installation
Material
Steel Structure
Furniture
Kitchen and Bathroom Facilities
Load-Bearing
up to Three Layers, Bearing 6 Tons
Life Span
10-25 Years
Keyword
Prefabricated Modular Container House
Capacity
500 Units
Package Size
600.00cm * 250.00cm * 250.00cm
Gross Weight
1100.000kg
Specification
20/40 feet
Origin
China
Key Features
Earthquake Resistant Easily Movable Eco-Friendliness Flexibly Combinable Leak Proof Moisture Proof Thermal Insulation Waterproof Wind Resistance
Product Showcase
Steel Modular Building
Office and Restroom Modular
Container Interior
Modular Unit Detail
Configuration Parameters
20 feet expandable folding container house configuration parameters
Basic feature Product model 20 feet House type One Hall
Expanded size 15900*W6300*H2480 Capacity 2-4 people
Internal dimensions 15460*W6140*H2240 Power consumption 12XW
Folded Size L5900*W2200*H2480 Total net weight 2.8 tons
Floor area 37m²
Frame structure
Name Content Specifications
Main frame (fully galvanized) Top side beam 80*100*2.5mm Square tube
Bottom side beam 80*100*2.5mm Square tube
Galvanized hanging head 210*150*160
Steel column Bending parts 2.0mm
Roof External top plate T50mm EPS color steel plate + corrugated veneer
Internal ceiling panels 200 type ceiling panel
Wallboard Side walls, front and rear T65mm EPS color steel plate
Inner partition board T50mm EPS color steel plate
Doors and windows Plastic steel sliding window 920*920mm
Steel single door 840*2030mm
Electrical system Circuit breaker One 32A leakage protector. Voltage 220V, 50HZ
Light Bull 30*30 flat lamp, large ceiling lamp

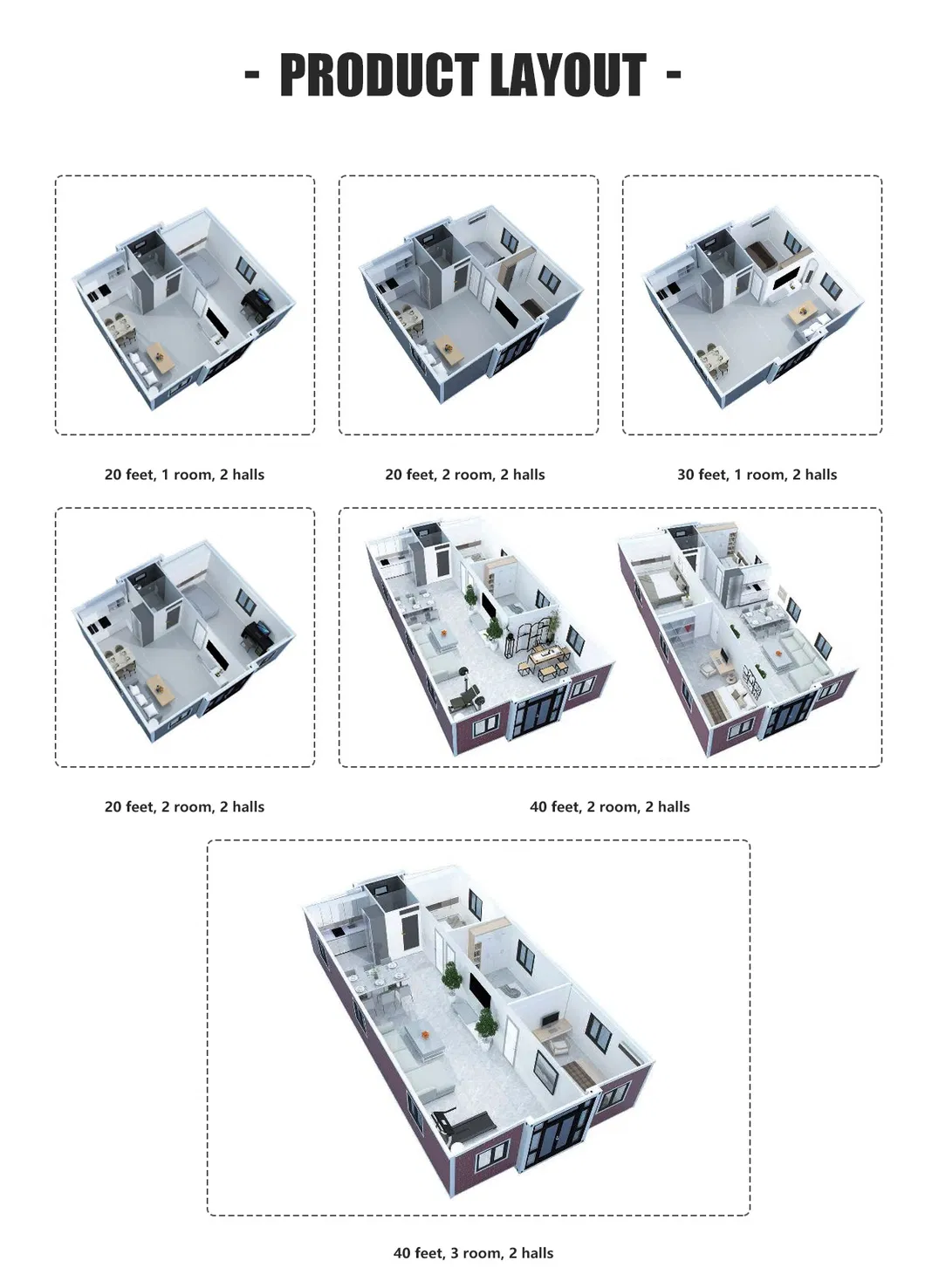

Modular Building Layout

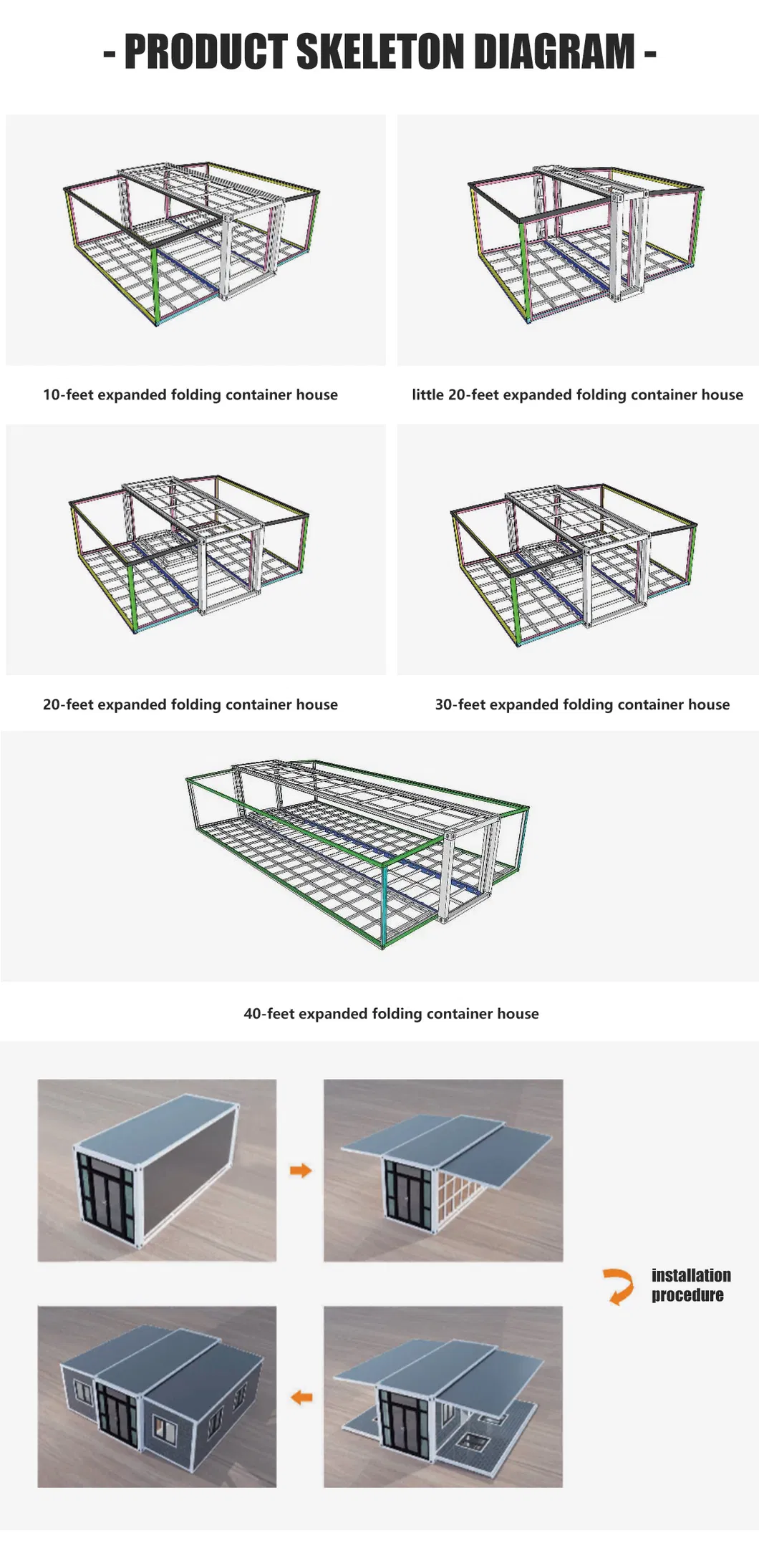

Steel Structure Detail
Installation Process
Interior View
Final Setup
Frequently Asked Questions
How can we guarantee quality?
Strict product quality control is our tenet. Each product from our factory undergoes strict testing procedures and must be 100% qualified before delivery.
What can you buy from us?
We offer Container Houses, Prefab Houses, Portable Toilets, Steel Structures, Guard Houses, and Light Steel Villas.
Why should you choose us over other suppliers?
With over 20 years of manufacturing experience and 6 years of design expertise in prefab buildings, we produce our own materials to ensure stable quality and competitive costs.
What services can we provide?
We accept various delivery terms (FOB, CFR, CIF, EXW, DDP, DDU) and payment types (T/T, L/C, Credit Card, PayPal). Support is available in English and Chinese.
How can I get a project quotation?
If you have drawings, we provide a quote based on them. If not, our engineers can design drawings for your confirmation before providing a quotation.
What is the expected lifespan of these units?
Our modular units are designed for durability, with a typical life span ranging from 10 to 25 years depending on the environment and maintenance.
