Basic Specifications
Product Name:
300kw Multi-Function Modular AHU
Operating Voltage:
380/400 VAC
Corrosion Durability:
Ultrahigh
Cooling Coil Rows:
4 Rows, 6 Rows and 8 Rows
Product Description

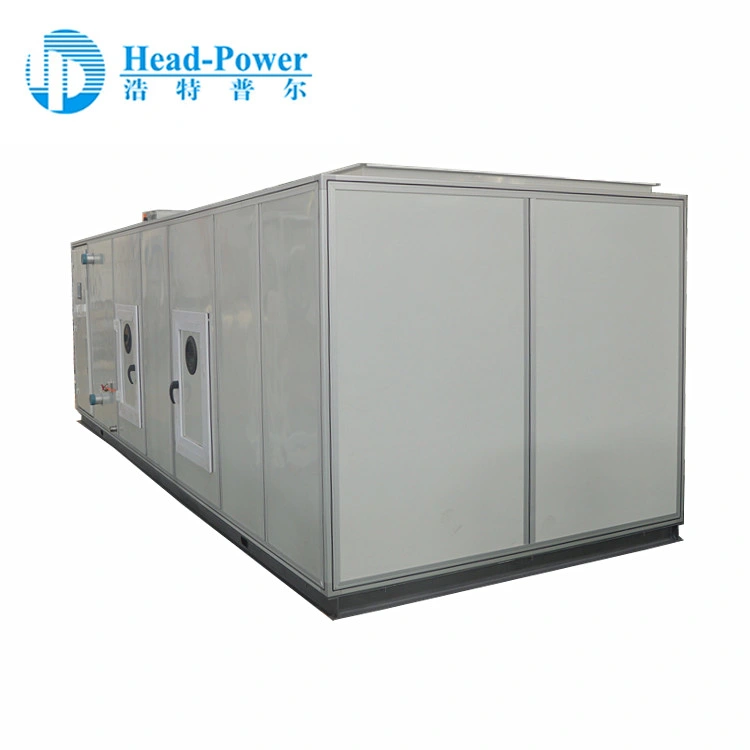

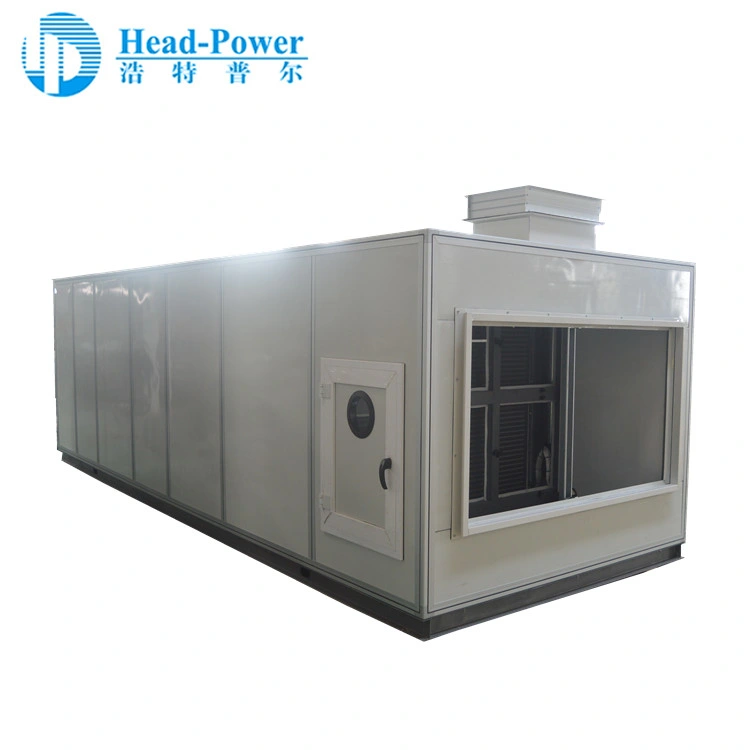

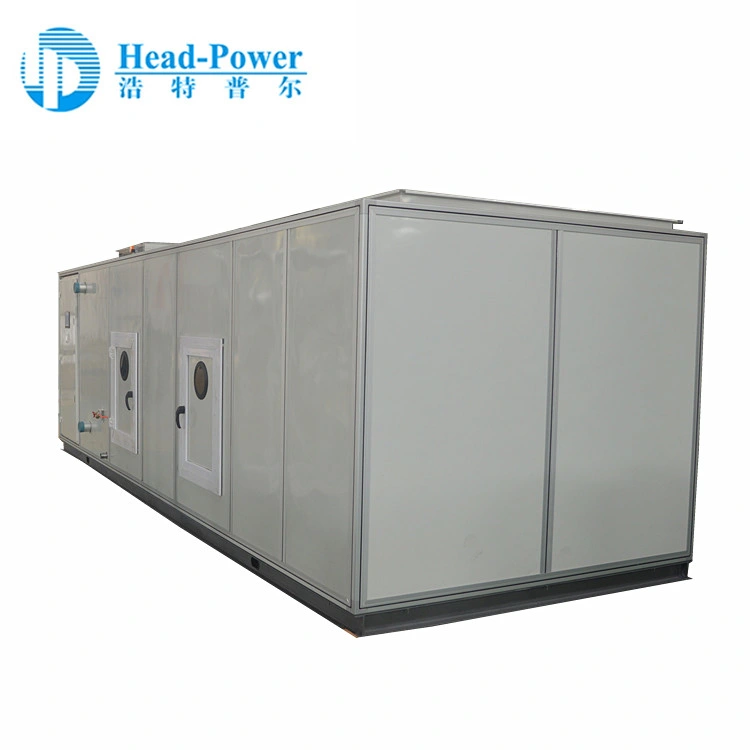

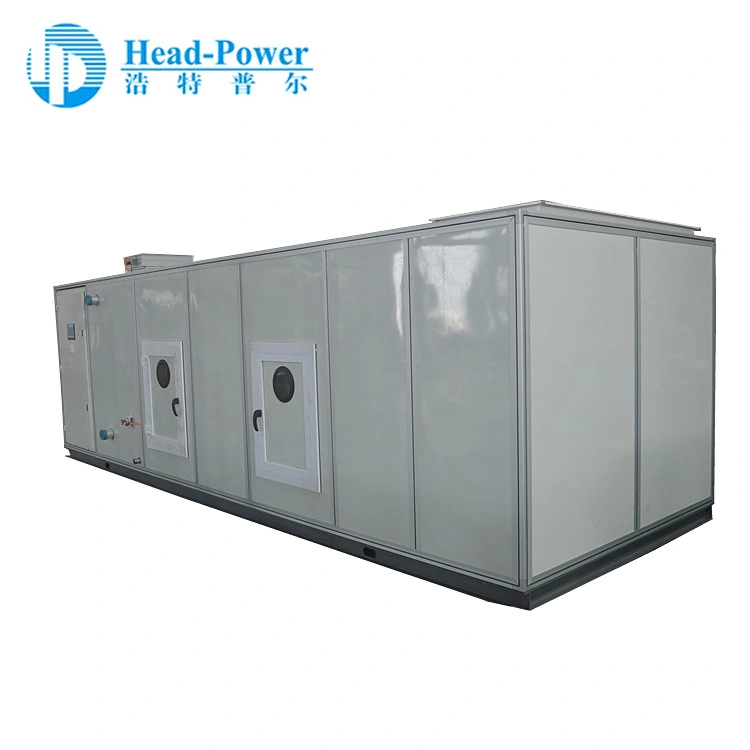

The 300KW Multi-function modular air handling unit is designed for high-performance air treatment in demanding environments. Featuring an anti-cold bridge aluminum alloy frame and double-skin panels, it ensures maximum efficiency and minimal energy loss.
🛡️

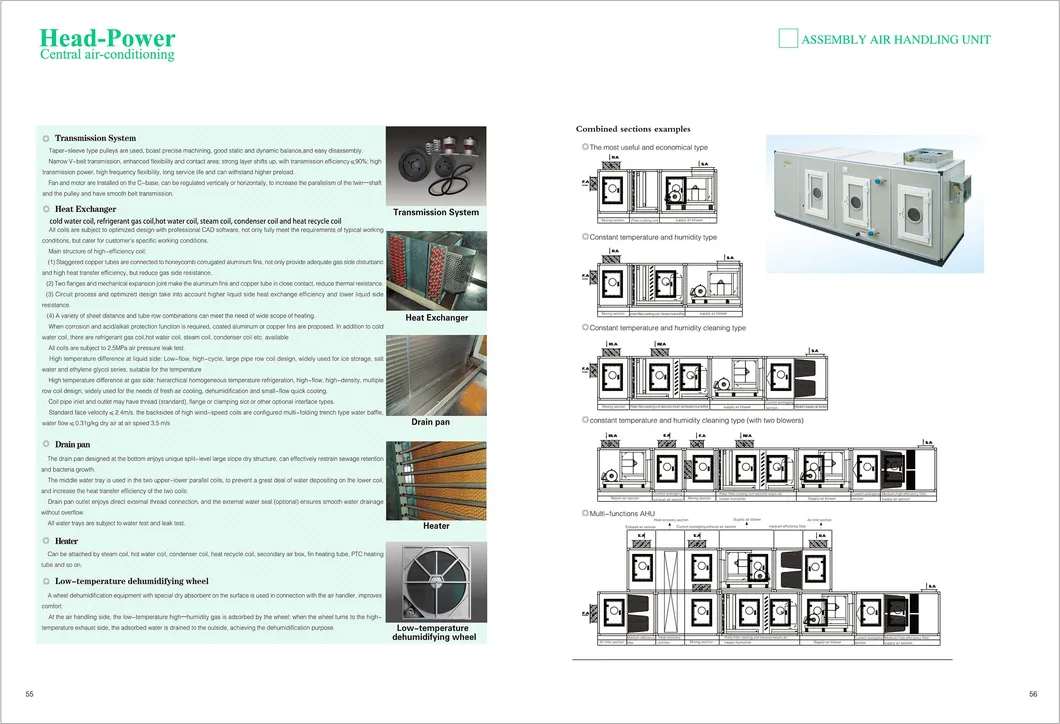

Frame & PanelAluminium alloy frame with anti-cold bridge design. Double skin panels (30mm/50mm) made of beautiful color steel.
🌀
Fan & MotorDIDW centrifugal fans with 15+ years lifespan. Equipped with high-quality F-class insulation motors and anti-vibration dampers.
🌡️
Heat ExchangersCAD-designed chilled/hot water or steam coils. All units undergo 2.5MPa air pressure leak testing.
🧹
Filtration SystemMulti-stage filtration: G3-G4 primary, F7-F9 bag filters, and optional HEPA or special function filters.
💧
Humidity ControlOptions include wet film, high pressure spray, steam, electrode humidifiers, and high-efficiency wheel dehumidifiers.
♻️
Energy RecoveryPlate type or wheel heat recovery sections are available to save energy during pre-cooling or pre-heating.
Technical Specifications (ZK Series)
| Items / Type |
ZK6 |
ZK8 |
ZK10 |
ZK15 |
ZK20 |
ZK25 |
ZK30 |
| Air Flow (m³/h) |
6000 |
8000 |
10000 |
15000 |
20000 |
25000 |
30000 |
| Cooling Capacity (4 Rows - KW) |
35.6 |
51.3 |
58.1 |
88.0 |
116.3 |
142.3 |
174.5 |
| Cooling Capacity (6 Rows - KW) |
46.3 |
67.6 |
73.1 |
106.6 |
142.5 |
177.0 |
213.8 |
| Heating Capacity (Hot Water - KW) |
41.7 |
55.7 |
69.8 |
104.6 |
139.6 |
174.5 |
209.3 |
| Heating Capacity (Electric - KW) |
5.1 |
10.2 |
15.3 |
23.0 |
30.6 |
38.0 |
46.0 |
| Steam Pressure (Mpa) |
0.2 |
Industrial Applications
This AHU series is ideal for various industrial and commercial environments:
- Electronic Factories
- Pharmaceutical Plants
- Precision Instrument Labs
- Petrochemical Industry
- Tobacco Production
- Hotels & Large Buildings
Product Gallery
Frequently Asked Questions
1. What is the expected service life of this AHU?
Under normal operating conditions, the main components like the impeller, shaft, and casing have a service lifespan of at least 15 to 20 years.
2. Can the unit handle low humidity requirements?
Yes, the unit can be equipped with a wheel dehumidifier section which is specifically designed to handle humidity levels lower than 50% with higher efficiency than standard cooling dehumidification.
3. What types of heat recovery are available?
We offer both plate-type aluminum heat recovery and wheel heat recovery options to maximize energy efficiency for pre-cooling or pre-heating.
4. How is the air leakage prevented in the unit?
The unit features an anti-cold bridge frame design and specialized access doors (outward opening for negative pressure and inward opening for positive pressure) to significantly reduce air leakage.
5. What filtration levels can be customized?
The standard setup includes G3-G4 primary filters and F7-F9 secondary bag filters. HEPA filters or other special function filters can be installed according to specific client requirements.
6. Are the heating coils tested for safety?
Yes, all coils, including water and steam heaters, undergo a 2.5MPa air pressure leak test to ensure high durability and safety.
