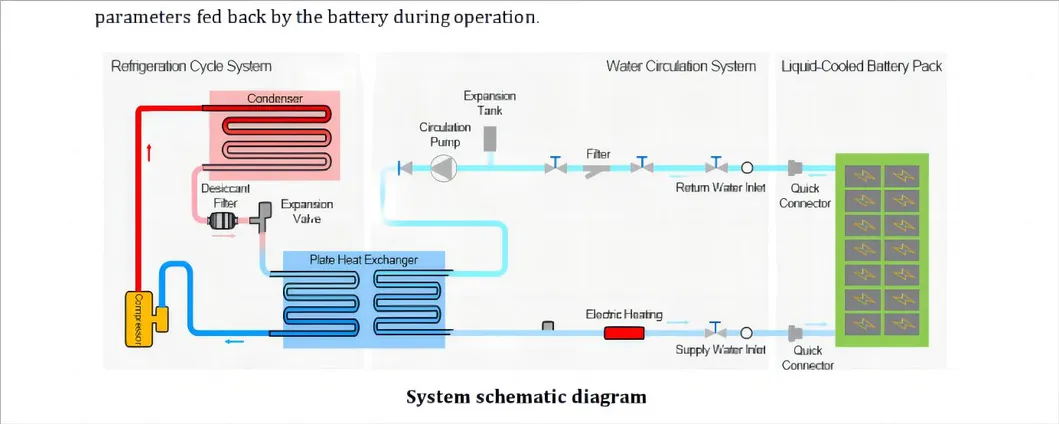

Our specialized liquid cooling integrated system is designed to directly regulate the temperature within the battery pack. It efficiently dissipates heat from the battery cells, minimizing cell temperature rise and reducing temperature variations between cells. This significantly reduces the risk of thermal runaway, ensuring safety and reliability.
| Category | Description | Unit | Parameter |
|---|---|---|---|
| Basic Parameters | Dimensions (W*D*H) | mm | 750*348*1900 |
| Net Weight | kg | 210 | |
| Exterior Color | - | RAL7035 | |
| Installation Method | - | Embedded door-mounted | |
| Performance | Cooling Capacity | kW | 15 |
| Cooling Input Power | kW | 7.2 | |
| Heating Capacity | kW | 3 | |
| Rated Water Flow | L/min | 72@90kPa | |
| Environment | Operating Temp | ºC | -30~55 |
| Protection Level | - | IP55 | |
| Coolant | - | 50% ethylene glycol |
Compressor: High-efficiency brands (Highly / Panasonic / Hitachi)
Fan System: Fanstech / Kaku / EBM
Heat Exchanger: Pure copper-aluminum construction
Quality Assurance: 100% quality inspection with 5-step verification process.
Fields: Industrial manufacturing, electric power, telecom, base station, 5G network, energy storage, and more.
OEM/ODM Support: Our R&D technical teams support high-end customization for specific requirements and higher standards.
After-Sales: Full technical protection, dealer training, and promotional support.
