High-Efficiency Modular Power Distribution Units for Data Centers

i

Basic Information

Model NO.	GPM8-i
Certification	ISO9001:2000, VDE, CCC
Form	Partly-welded Type
Operation Voltage	Low Voltage
Size	3 Uint
Application Range	Power Plants
Shell Material	Stainless Steel
Protection Grade	IP55
Color	Black
Voltage	110V~380V
Capacity	2000 Per Month
Specification	600W1200D2000H

★

Product Features

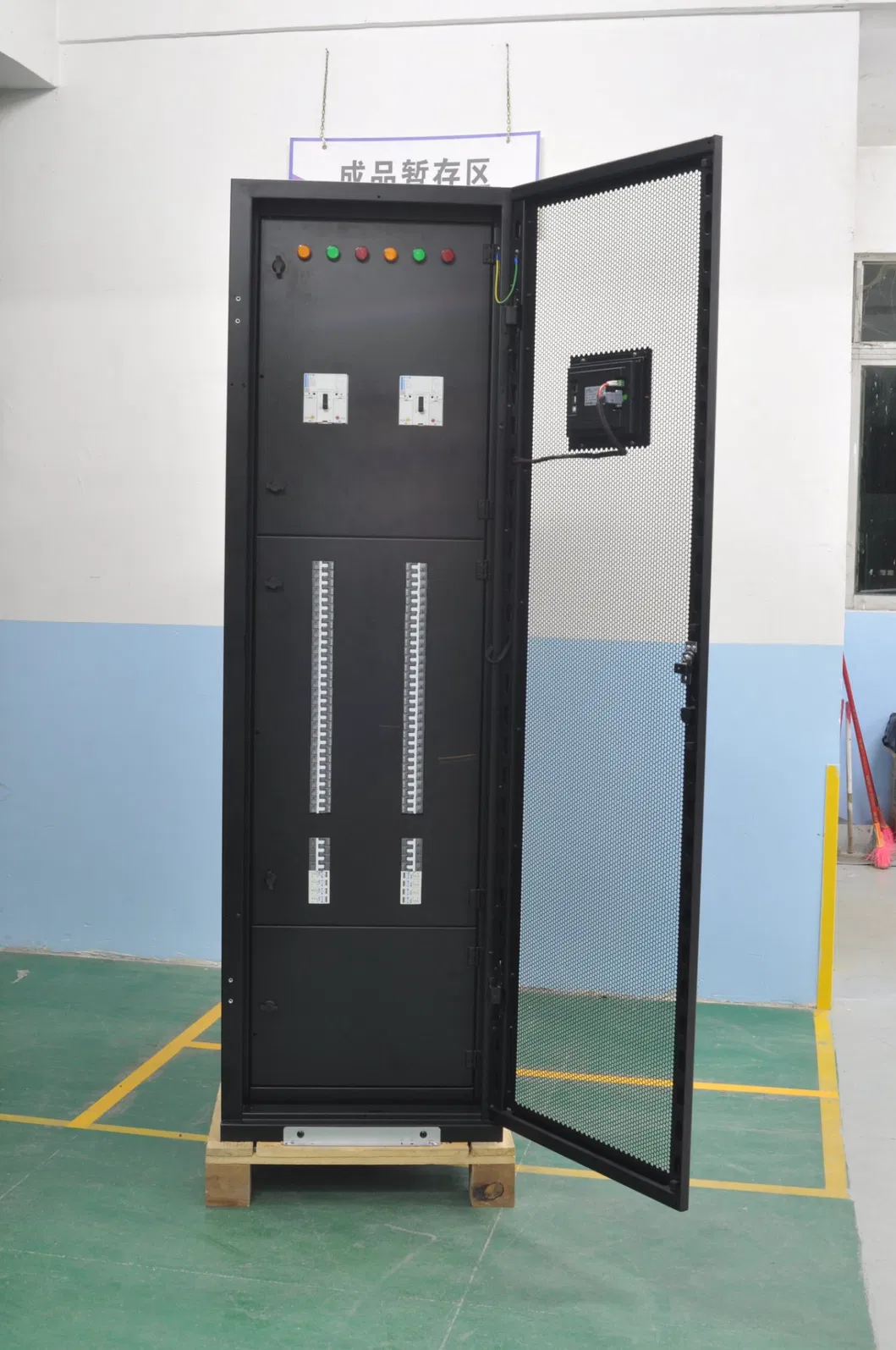

GPM8-i Smart Precision Power Distribution Cabinet

High Availability

1. Novel and elegant appearance
2. Customizable rack color and style

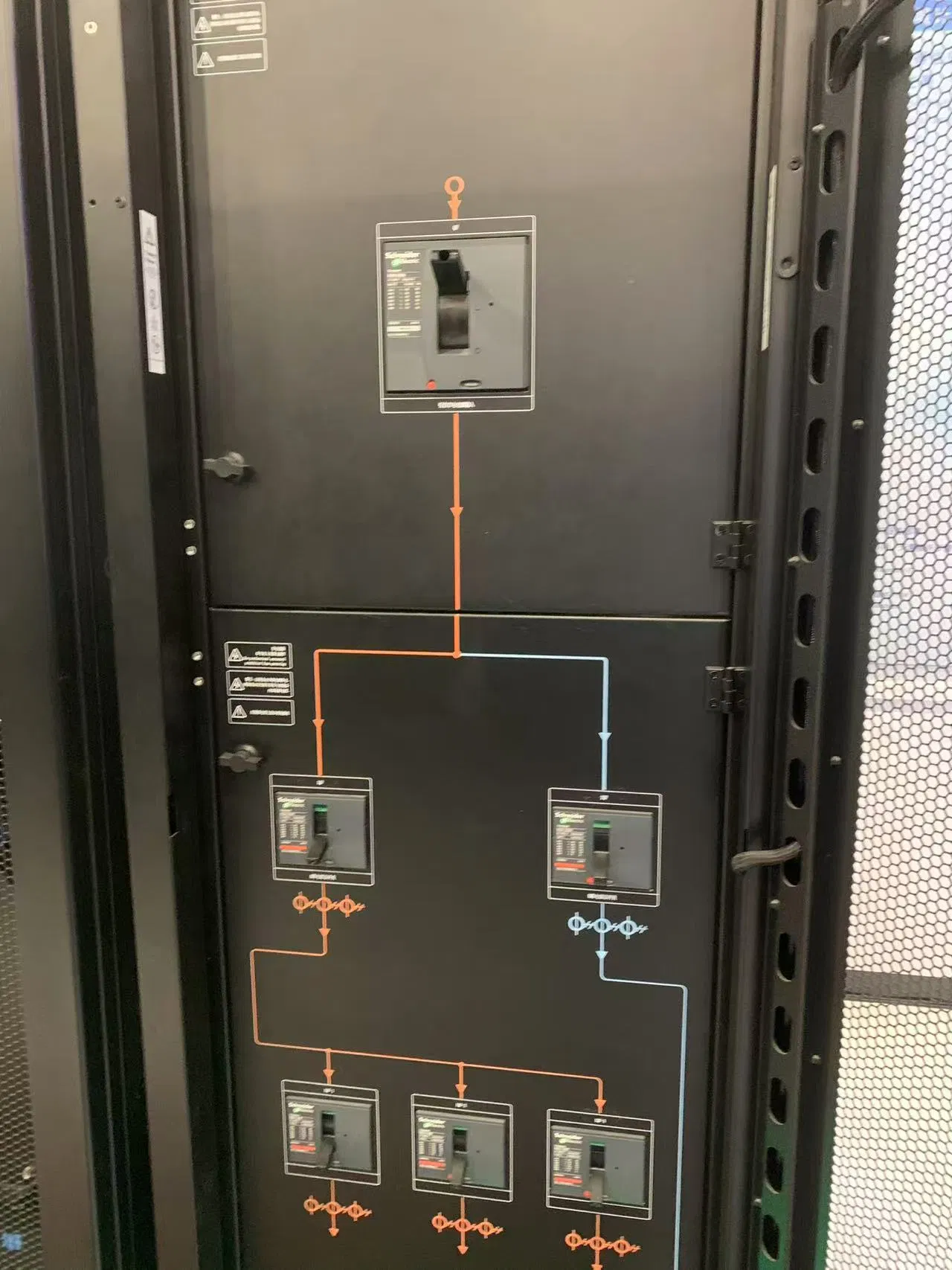

3. Multiple layout supports (Single/Double main road)
4. Flexible incoming and outgoing modes
5. Flexible maintenance surface for easy inspection.

Modular Design

1. Each functional module is isolated to prevent contact with the bus.
2. Protection Grade: IP40.
3. Compliance with national and international quality standards.

Advanced Control

1. DSP full digital control for fast and stable protection.
2. Enhanced anti-interference ability.
3. High integration and simplified circuit design.
4. Stable and safe operation performance.

Power Quality Monitoring

1. Main circuit: monitors voltage, current, THD (2nd-63rd harmonic), unbalance, and ambient environment.
2. Branch circuit: monitors voltage, current, frequency, active/reactive power, and 2-31 harmonics.

P

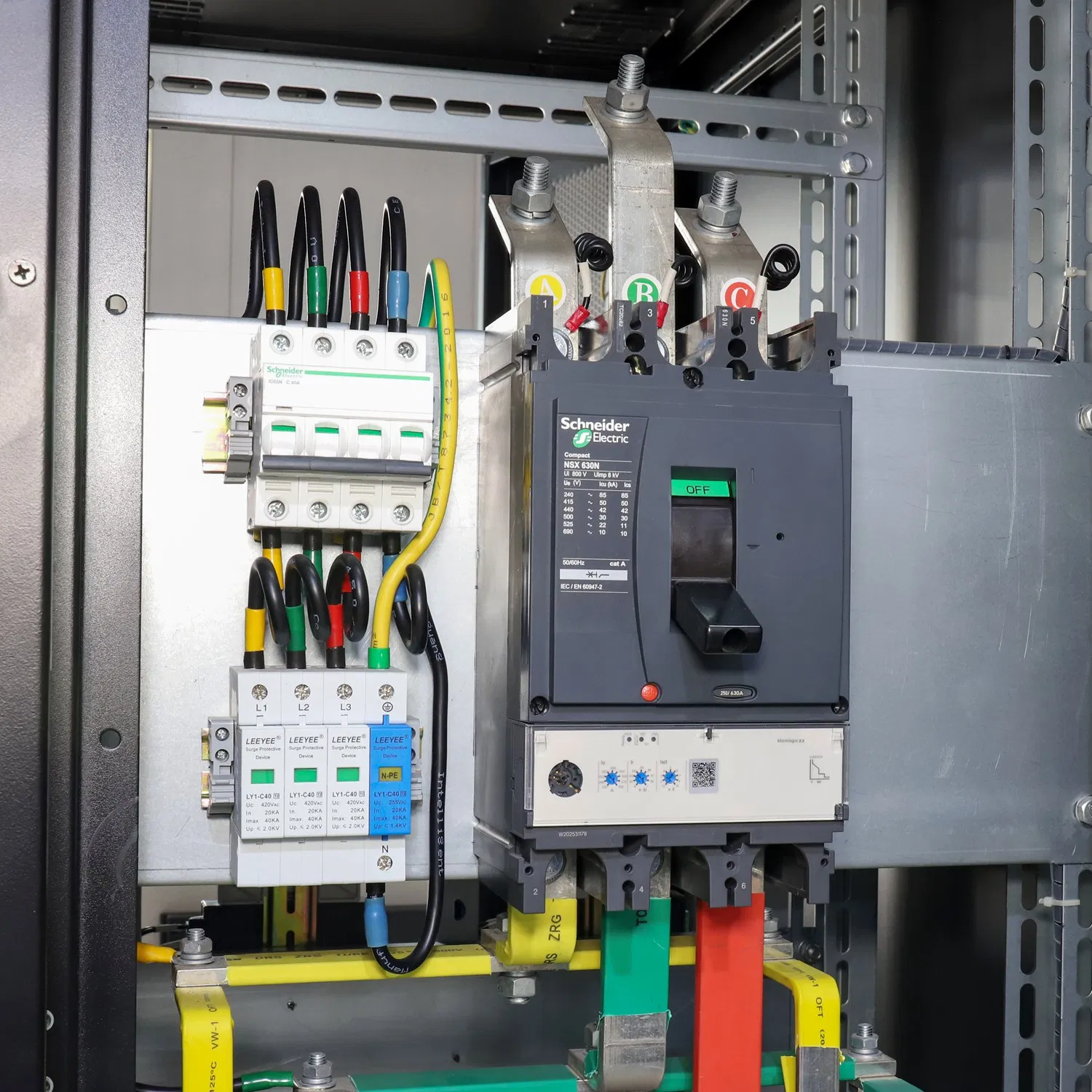

Detailed Gallery

T

Product Parameters

Input Voltage	220/380V
Frequency	50/60Hz±10%
Output Voltage	220V(1Ph+N+PE); 380V(3Ph+N+PE)
Capacity Range	10~630A
Architecture	Support single bus, double bus, and multi bus systems; Hot plug air switch supported.
Accuracy	Incoming: Level 0.2/0.5s; Outgoing: Level 0.5/1.0
SPD	Standard C-level surge protection: 20KA, 40KA

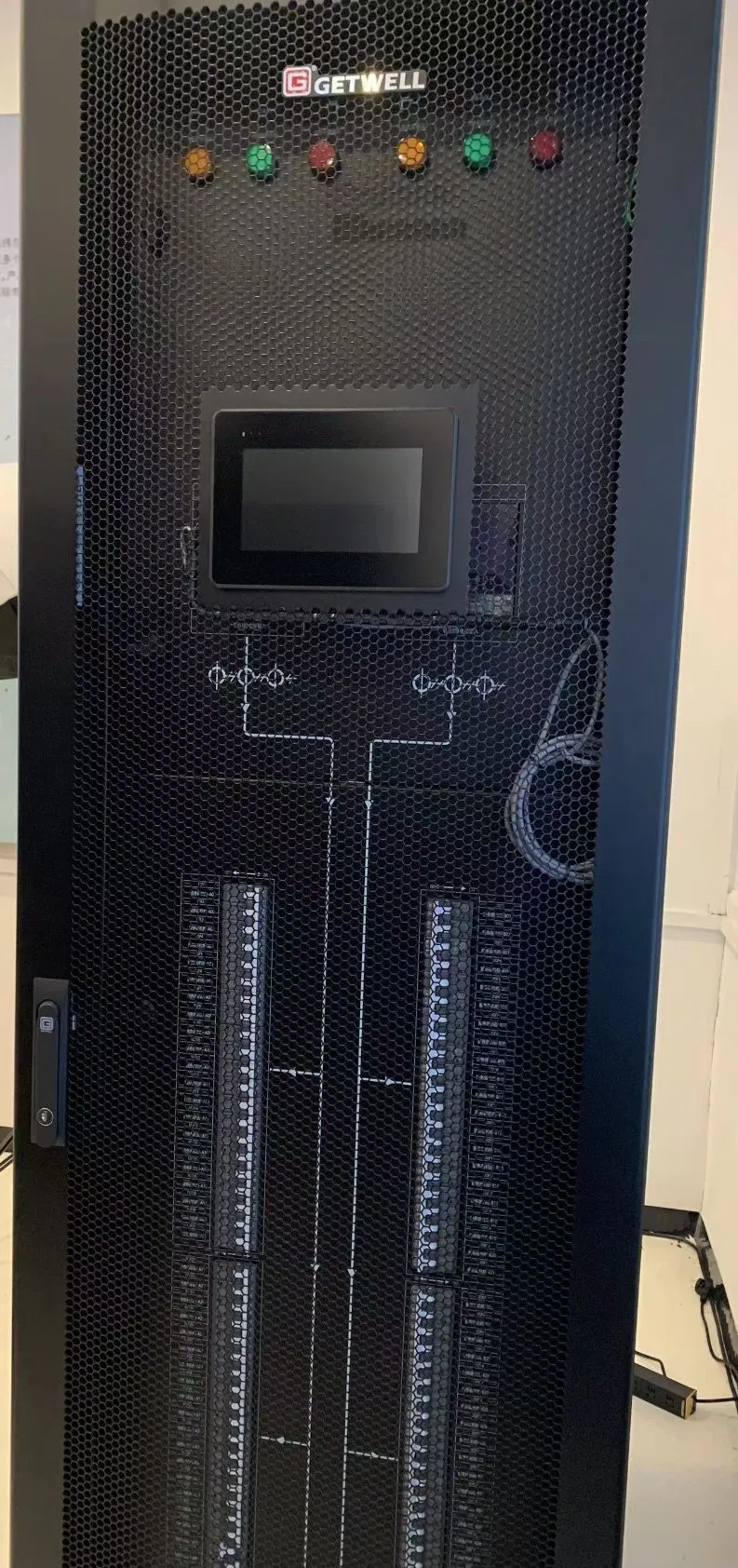

Display	Standard 7-inch touch screen (10+ inch optional)
Communication	RS485 Modbus-RTU; RJ45 TCP/IP (Optional)
Dimensions	600/800(W)1000-1200(D)2000/2200(H)mm

S

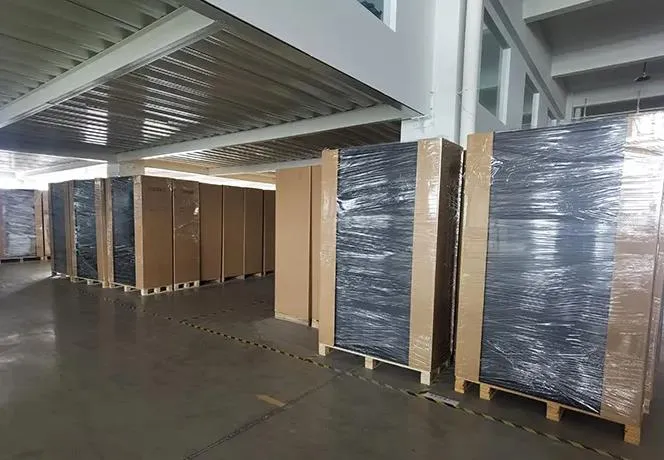

Packaging & Shipping

C

About Us

Established in 2008, our company has been delivering high-quality, innovative products and technologies to the IT industry for over 15 years. We focus on data center infrastructure design, construction, manufacturing, operation, and maintenance. We have built our own factory and developed a comprehensive line of Micro Modular data center products.

Our engineering teams include industrial designers, structure engineers, software engineers, and power distribution specialists. We are aimed at continuous improvement of quality and functionality, following the trends of new-generation mounting constructions with high loading capacity and compact packing for low transport costs.

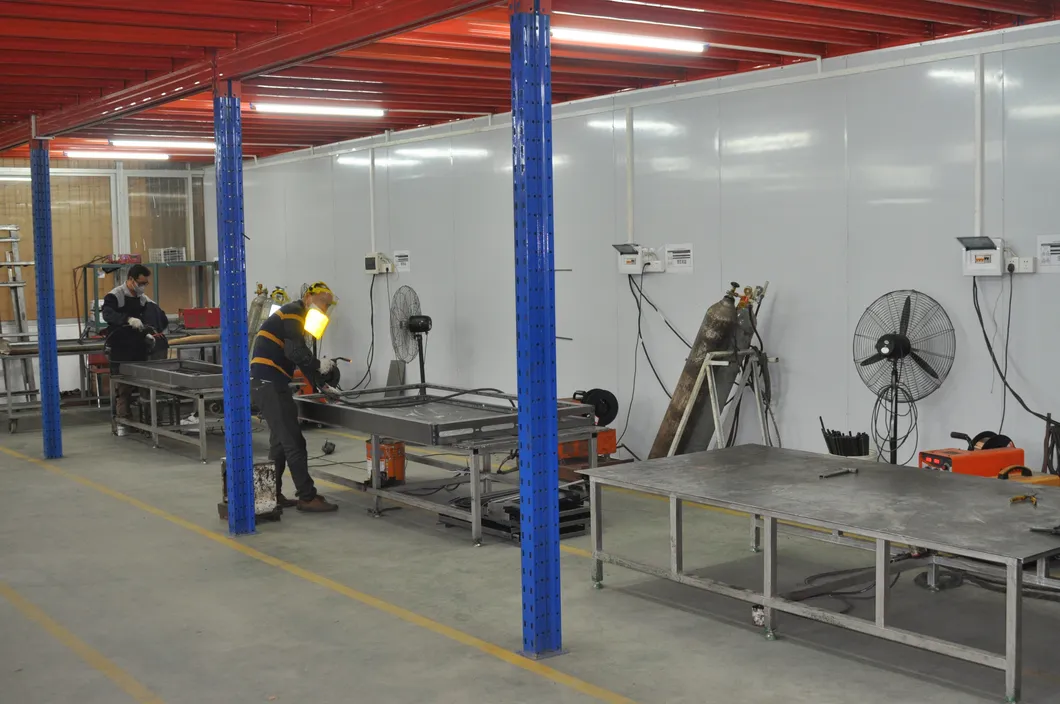

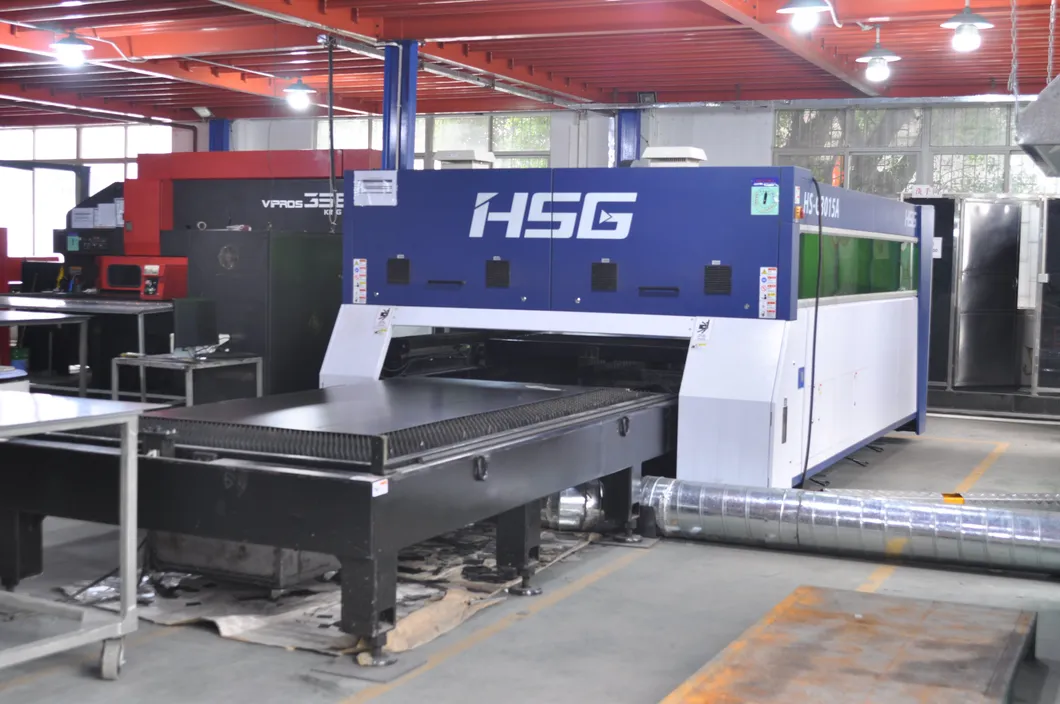

FACTORY TOUR

?

Frequently Asked Questions

Why choose our products?

We are a 15-year specialist factory in data center infrastructure with over 10,000 square meters of production space, 10+ quality management experts, and 20+ R&D technicians.

What is the lead time for product preparation?

Typically, production and preparation take 25 to 30 days depending on the order volume and customization requirements.

Which trading terms do you support?

We offer flexible trading terms including FOB, EXW, CIF, CFR, DDP, and DDU to suit your logistics needs.

Can you handle delivery for buyers without import experience?

Yes, simply contact our sales team, and we can arrange door-to-door delivery services to simplify the process for you.

What certifications do your factory and products hold?

Our facility is ISO 9001, OHSAS 18001, and ISO 14001 certified. Our products carry CE, ROHS, and CQC marks for international compliance.

Is the power distribution unit customizable?

Yes, the rack color, style, and distribution architecture (single/double bus) can be customized according to your specific environment and technical needs.
