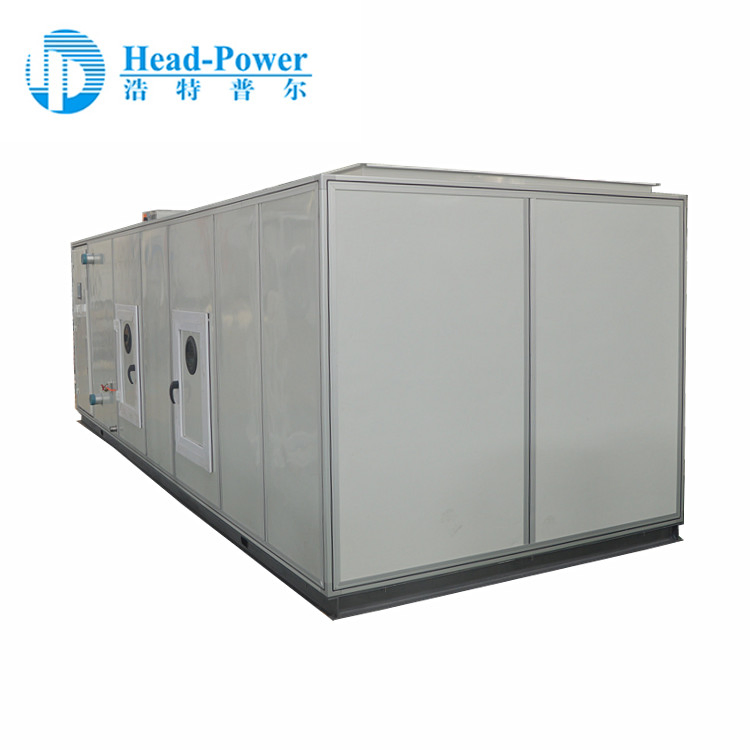

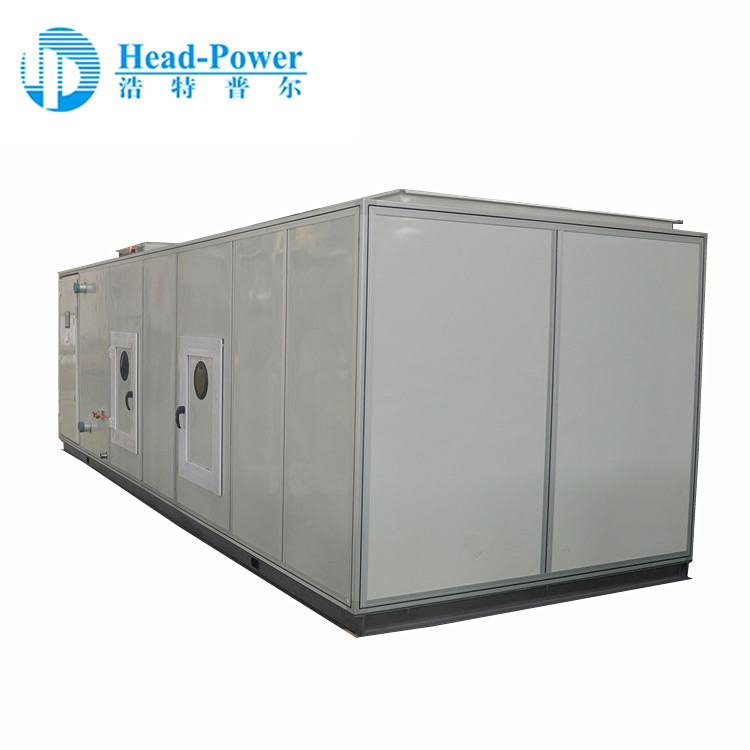

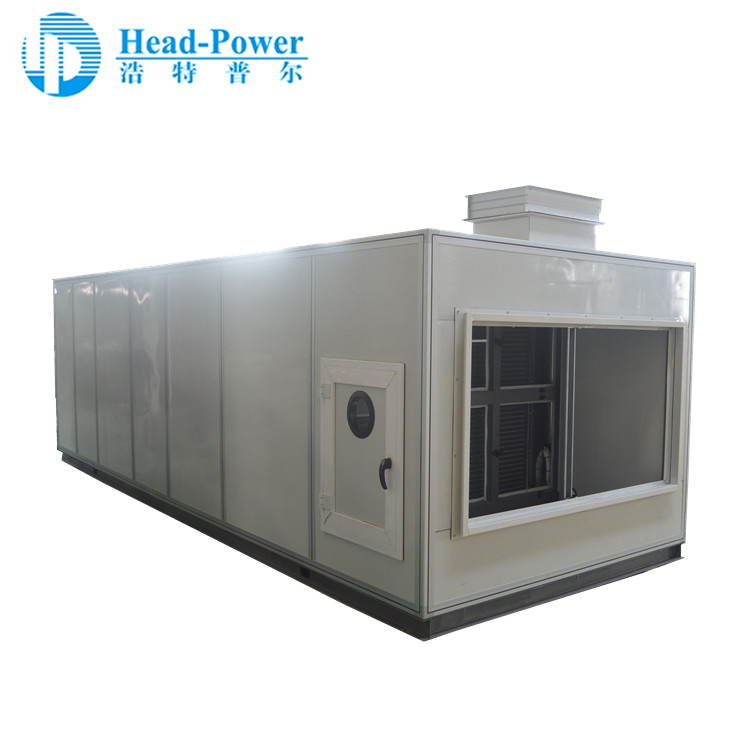

Export Modular Chilled Water Air Handling Unit 200kw

1 / 5

Export Modular Chilled Water Air Handling Unit 200kw

Customization:	Available
Type:	Air Handling Unit
Air Tube Material:	Galvanized Sheet, Glass, Steel, Plastic Duct, etc;

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZK26-4H

Cooling Capacity

200kw

Operating Voltage

380/400 VAC

Lifetime

15~20 years

Noise Level

Ultra Low

Corrosion Durability

Ultrahigh

Certification

ISO, CE

Mounting

Floor Standing

Application

Electronic Instruments, Precision Machinery, Hotel

Production Capacity

5000PCS/Year

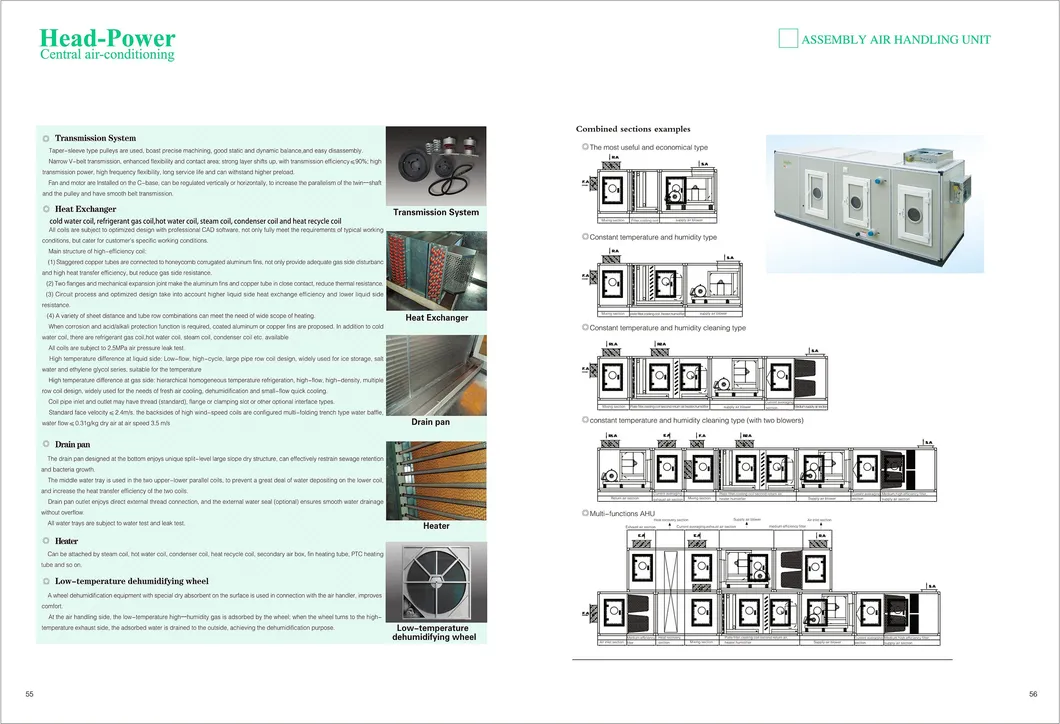

Product Features

Export Modular Chilled Water Air Handling Unit 200KW

Frame and PanelAluminium alloy frame with anti-cold bridge design. Double skin panels (30mm/50mm) made of color steel for aesthetics and insulation.

Fan SystemDIDW backward or forward curved blade centrifugal fan. Impeller and casing designed for over 15 years of service. Low noise and high efficiency.

Motor & DriveHigh-quality brand motor (Class F insulation). Equipped with belt drive and anti-vibration rubber or spring dampers.

Heat ExchangerCAD-designed coils for optimal heat exchange. Options include electric, steam, or chilled/hot water coils with copper tubes and aluminium fins. Tested at 2.5MPa.

Filtration SystemMulti-stage options: Nylon/metal mesh prefilters (G3-G4), bag filters (F7-F9), and optional HEPA or special function filters.

Advanced DehumidificationWheel dehumidifiers available for dealing with humidity lower than 50%, offering higher efficiency than standard cooling dehumidification.

Heat RecoveryPlate type or wheel type heat recovery sections to save energy via precooling or preheating.

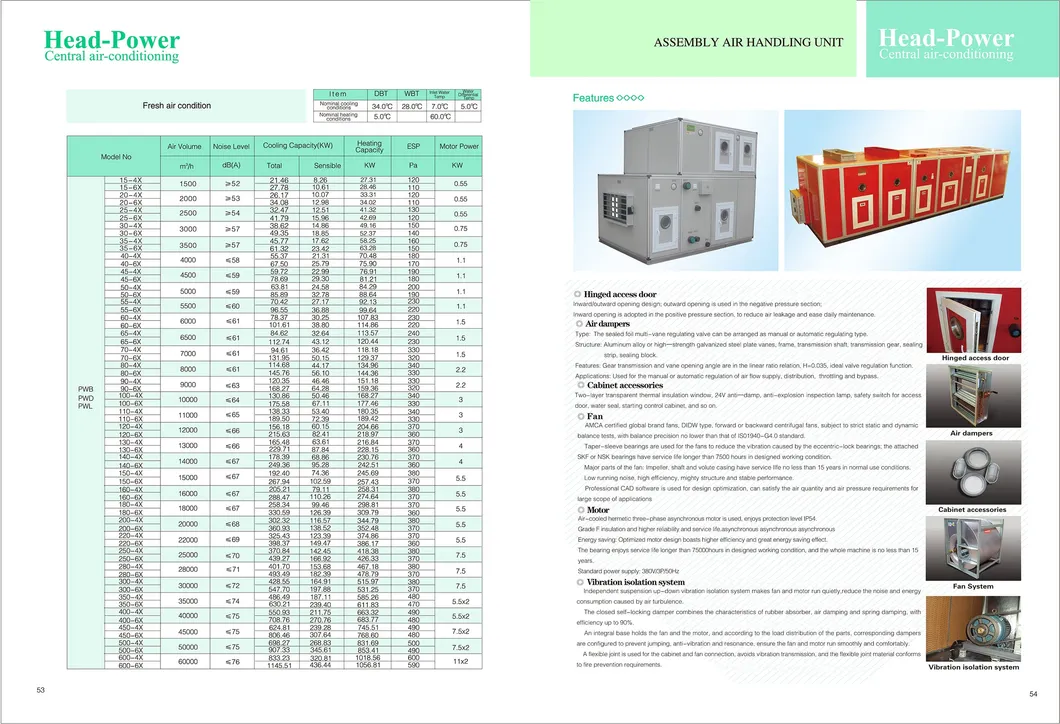

Technical Parameters (ZK Series)

Model Items	ZK-6	ZK-8	ZK-10	ZK-15	ZK-20	ZK-25	ZK-30
Air Flow (m³/h)	6000	8000	10000	15000	20000	25000	30000
Cooling Capacity (4 Rows - Return Air)	35.6kw	51.3kw	58.1kw	88.0kw	116.3kw	142.3kw	174.5kw
Cooling Capacity (6 Rows - Return Air)	46.3kw	67.6kw	73.1kw	106.6kw	142.5kw	177.0kw	213.8kw
Cooling Capacity (8 Rows - Return Air)	53.4kw	76.8kw	82.3kw	122.8kw	165.0kw	204.8kw	246.9kw
Water Resistance (Kpa)	3.8~5.8	4.1~6.9	4.8~9.0	5.6~10.2	8.3~14.3	9.8~17.3	11.6~18.6
Electric Heater Power (KW)	6	12	18	27	36	45	54

Product Gallery

Frequently Asked Questions

What is the estimated lifespan of the ZK series AHU?

Under normal operating conditions, the impeller, shaft, and casing are designed to have a service lifespan of no less than 15 to 20 years.

How is the unit protected against air leakage and thermal bridging?

The unit utilizes an aluminium alloy frame with an anti-cold bridge design and double-skin panels. Access doors open outward for negative pressure sections and inward for positive pressure sections to minimize leakage.

What types of heat exchangers and heaters are available?

We offer electric heaters, steam heaters, and chilled/hot water heat exchangers with copper tubes and aluminium fins, all tested at 2.5MPa air pressure.

Can the unit handle very low humidity requirements?

Yes, the unit can be equipped with a wheel dehumidifier section, which is specifically used for industrial applications requiring humidity levels lower than 50%.

What industrial applications is this AHU suitable for?

It is ideal for electronic factories, pharmaceutical plants, precision instrument manufacturing, petrochemical facilities, and tobacco factories.

Does the unit support energy saving features?

Yes, the AHU can be configured with plate type or wheel type heat recovery sections to recover energy during precooling or preheating processes.
