High-Efficiency Shenglin Modular Air Handling Unit for Industrial Cooling

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SHSL-D4-315-6X800

Type

Air-Cooled

Cooling Water

Industrial Water

System Type

Closed System

Noise Level

Low

Capacity

142.42kw

Air Flow

76459 M3/H

Fan Type

Axial Flow Fan

Application

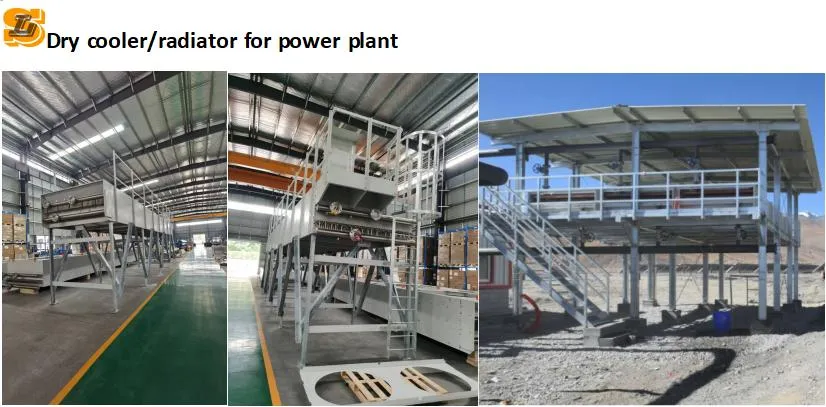

Data Center / Power Plant / Bitcoin Farm

Certification

ISO

Product Description

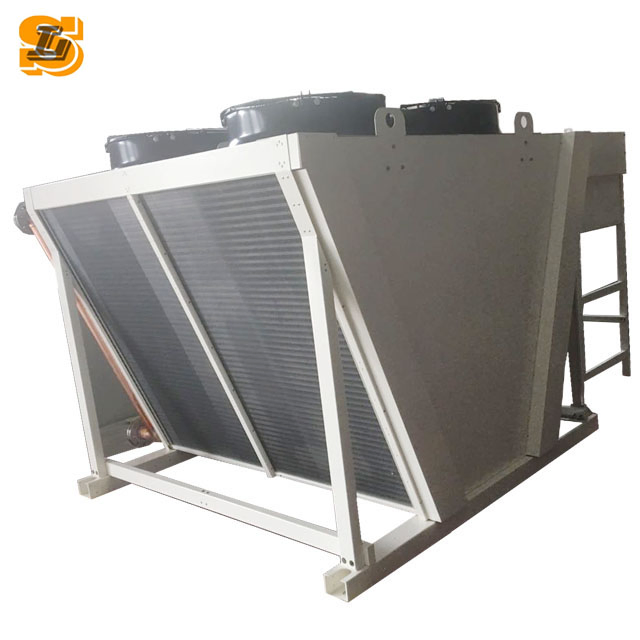

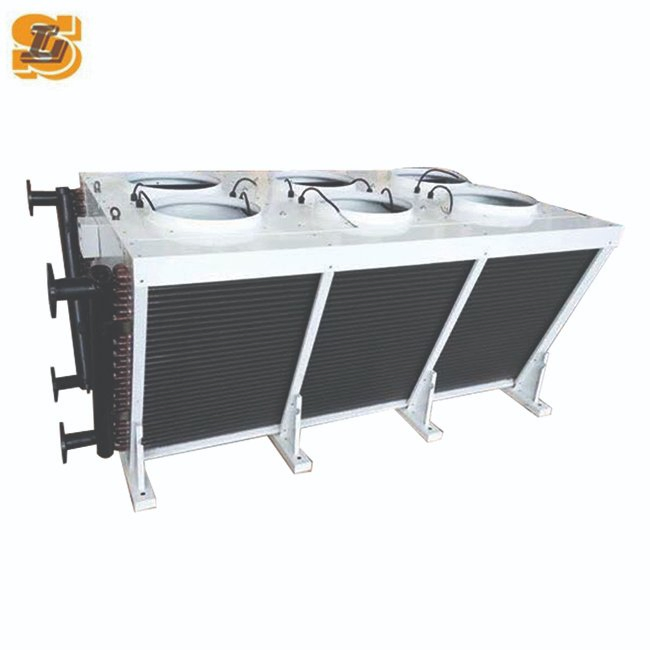

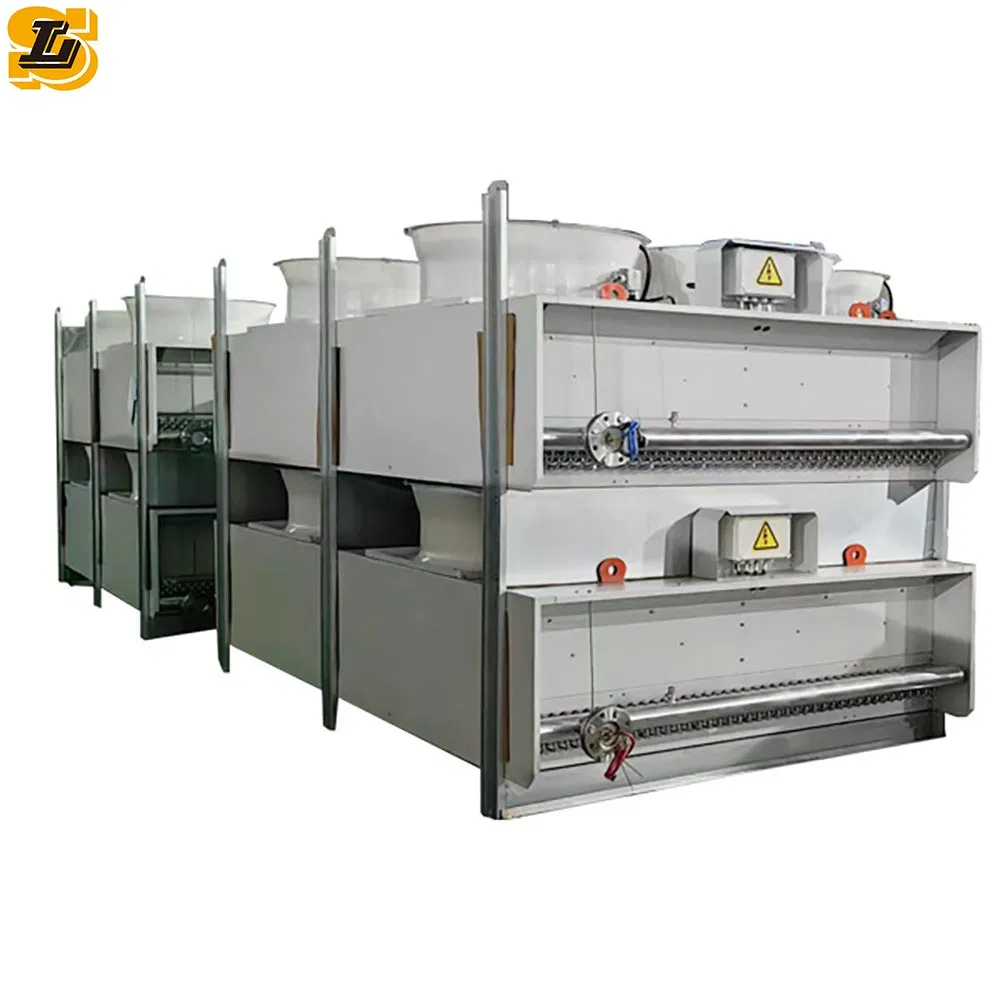

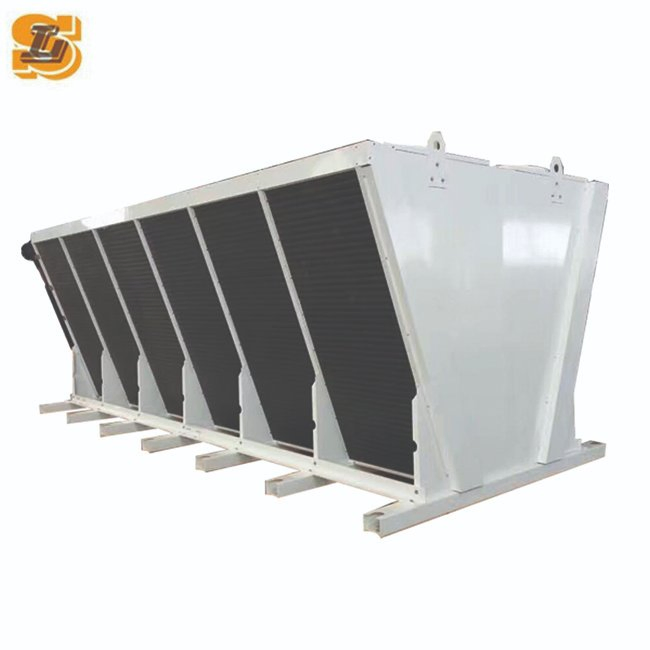

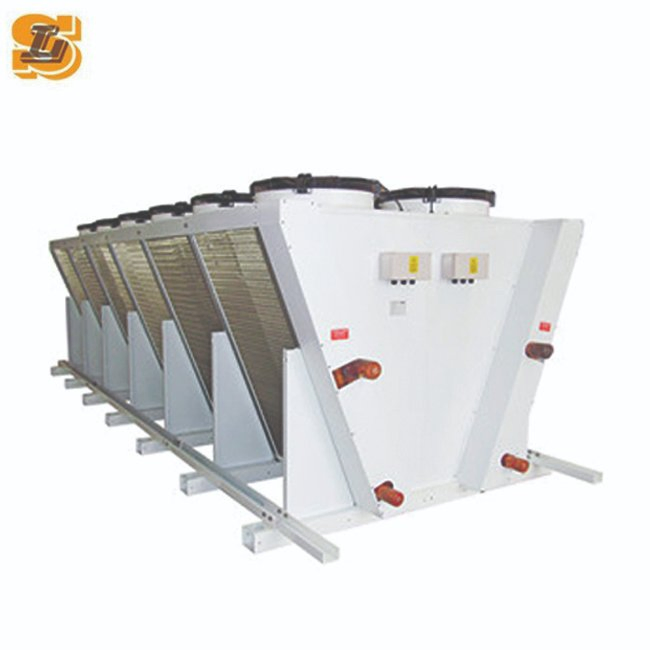

Air Cooled Dry Cooler for Dielectric Liquid Cooling

Professional manufacturer specializes in refrigeration units, dry coolers, and air conditioning units. Dry coolers are primarily used for machine cooling, process cooling, oil cooling, free cooling, and cold room cooling.

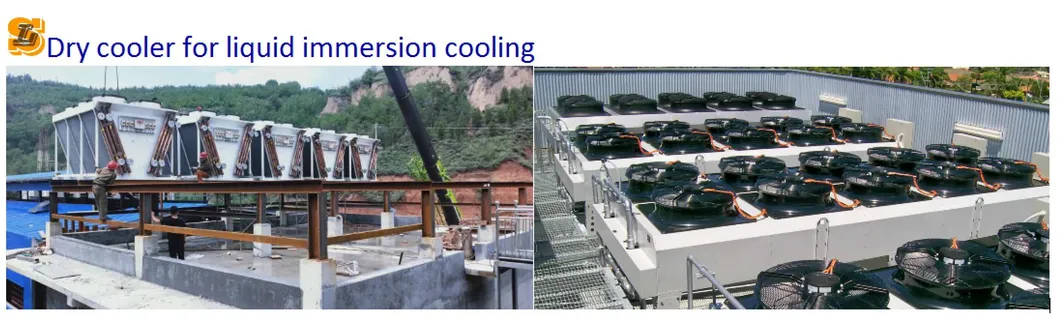

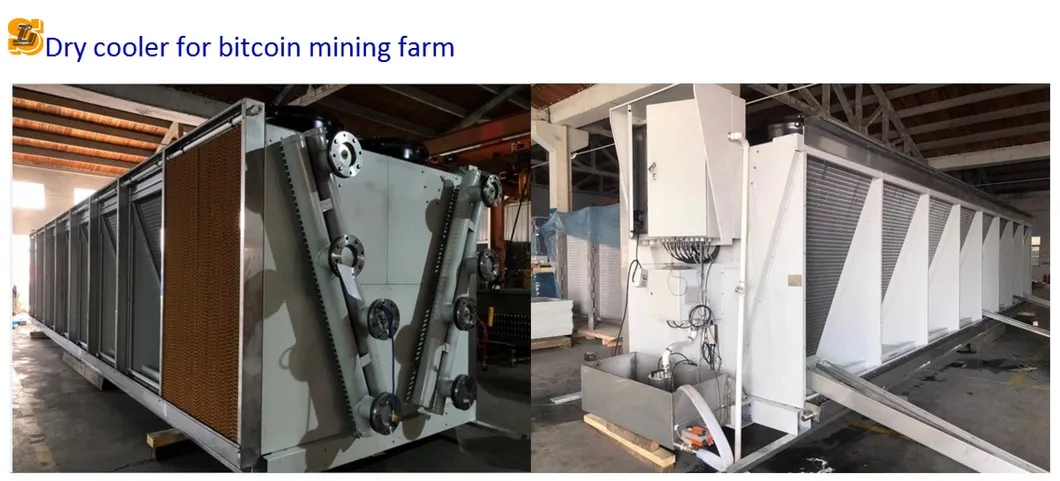

Immersion Cooling: This technology involves submerging Bitcoin miners in a non-conductive fluid. Fluid is approximately 1600x more effective at dissipating heat than air, making it the most cost-effective way to remove heat in large data centers.

Key Features

Feature Category	Specifications & Details
Performance Ranges	Cooling capacity: 5 to 649 kw; Air volume: 2828 to 263503 m3/h; Sound pressure: 31 to 69 dB A(10m).
Heat Exchanger	High efficiency designs for maximizing heat transfer; Low pressure drop (max 100KPa); Tested thermodynamic software.
Fan System	Low specific energy consumption; Protection class IP 54; Insulation class F; Voltage: 400V/3N/50Hz.
Testing Standards	All heat exchangers are supplied clean and pressure tested at 30 bars.
Custom Options	Refrigerant: water, oil, glycol; Multiple circuits; Stainless steel or aluminum casing; Coated fins.

Technical Data (SHSL-D1 Series)

Type	SHSL-D1-005	SHSL-D1-009	SHSL-D1-014	SHSL-D1-020
Water Capacity (kW)	4.89	9.39	14.32	19.80
Air Flow (M3/h)	2828	6199	8469	7601
Fan Motor (W)	140	540	830	830
Sound Level dB(A)	31	43	49	49
Weight (kg)	38	55	75	91

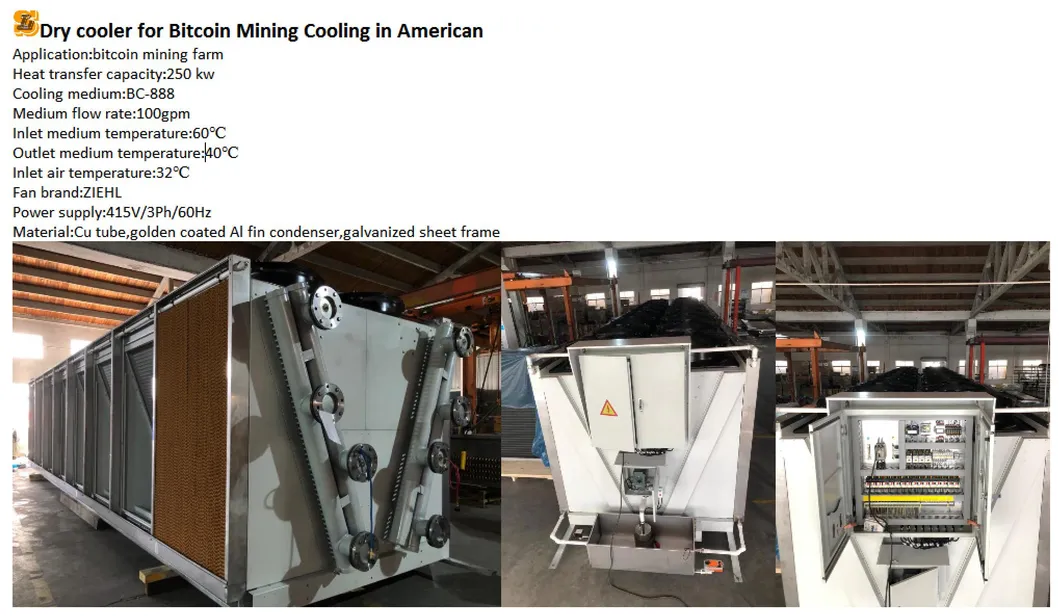

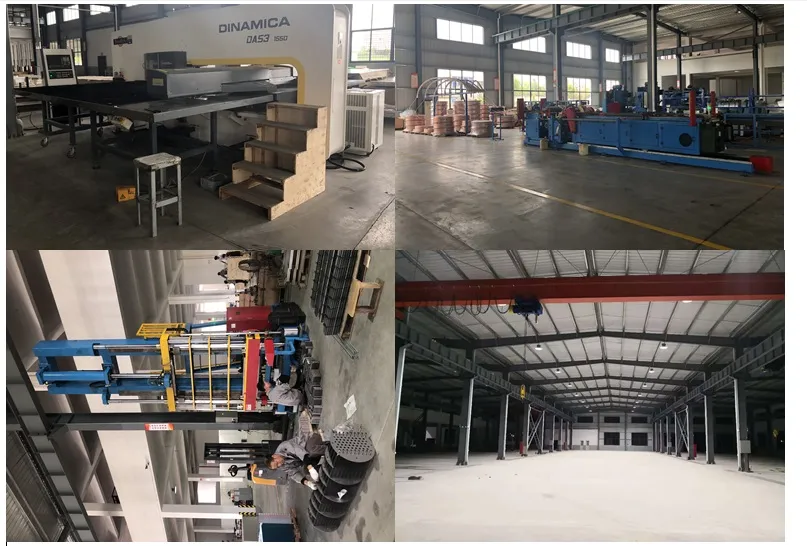

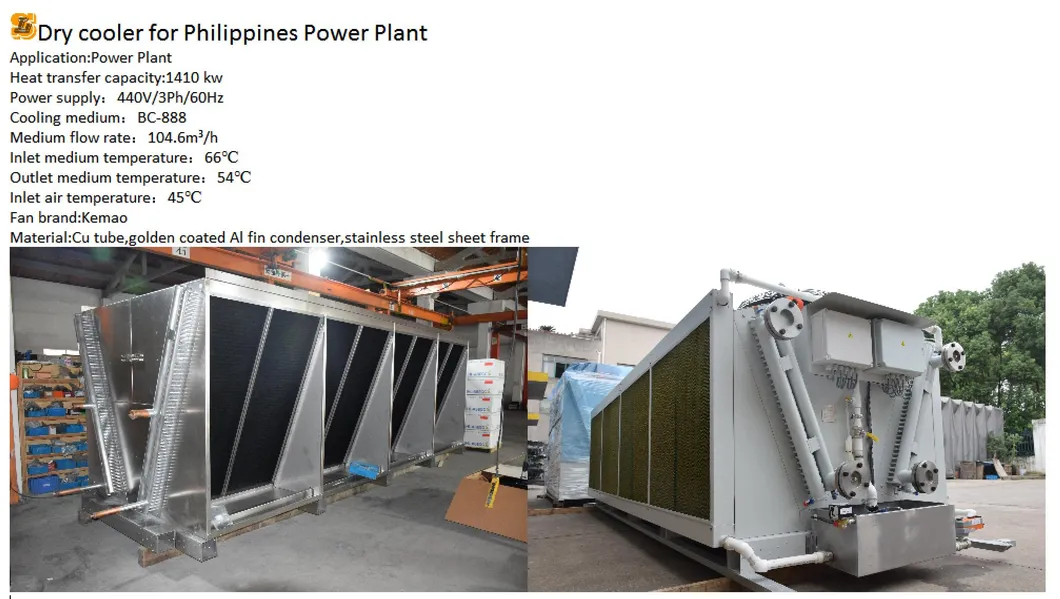

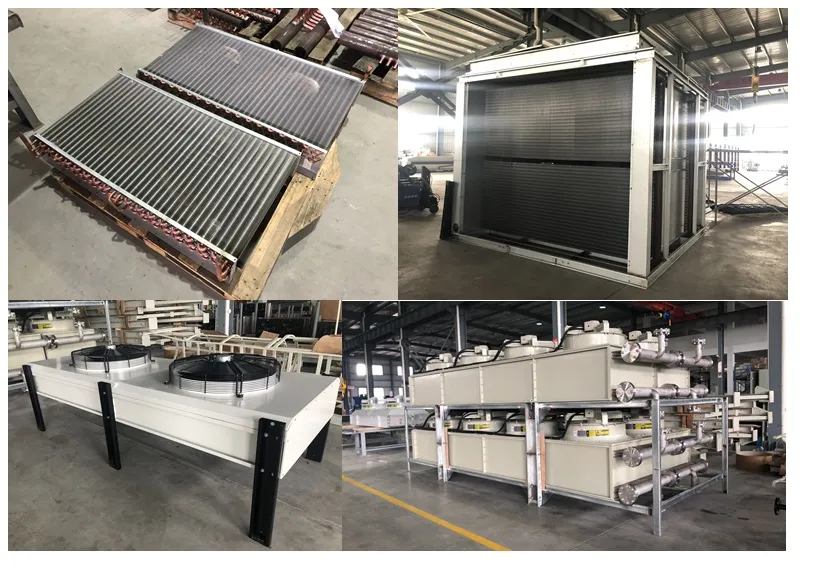

Advanced Equipment & Reference

Frequently Asked Questions

What are the primary applications for these dry coolers?

Our dry coolers are designed for machine cooling, industrial process cooling, oil cooling, and specifically optimized for immersion cooling in Bitcoin mining and data centers.

Why is immersion cooling better than traditional air cooling?

Immersion cooling uses dielectric fluid which is approximately 1600 times more effective at dissipating heat than air, allowing for higher density and more efficient thermal management.

What testing procedures do the units undergo?

All heat exchangers are thoroughly cleaned and undergo rigorous pressure testing at 30 bars to ensure reliability and leak-proof operation.

Can the cooling medium be customized?

Yes, our coil designs are compatible with various mediums including water, oil, and glycol mixtures to suit your specific industrial requirements.

What fan motor protections are included?

We use high-quality fans from leading manufacturers with IP 54 protection class and insulation class F, ensuring long-lasting performance in industrial environments.

What information is needed for a prompt quotation?

Please provide the required function (cooling/heating), capacity (kW or Tons), preferred refrigerant (R407C, R410a, etc.), and your local voltage/frequency.
