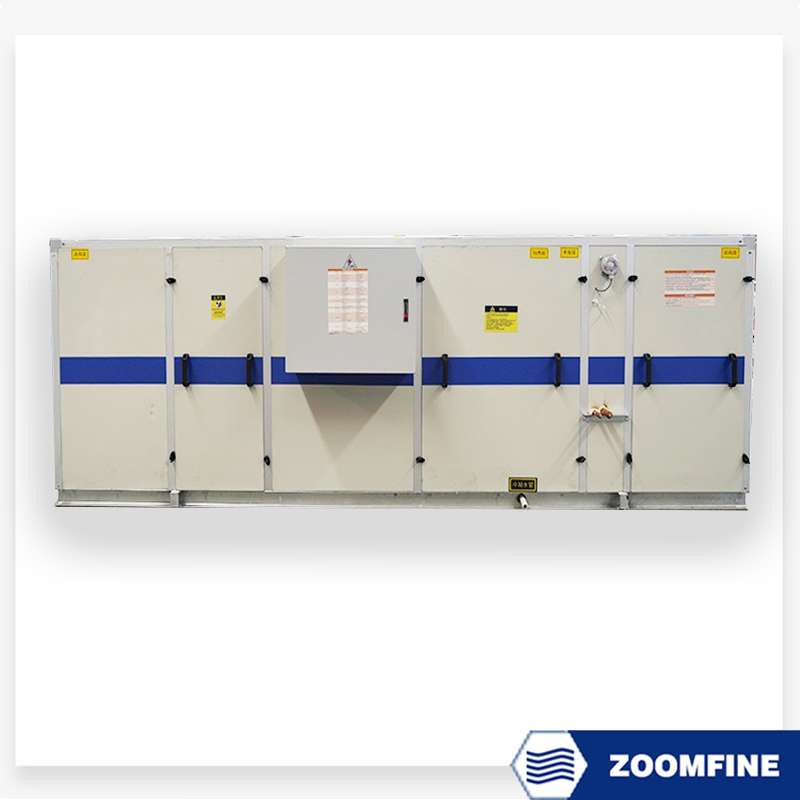

Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
1 / 5
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center
Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center

Industrial Plant Cabinet Fan Ahu Air Handling Unit with Filter for Workshop Office Data Center

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
CT
Type
Air Handling Unit
Operating Voltage
380/400 VAC
Airflow Range
1000-178000 CMH
Application Fields
Medicine, Industry, Marine
Certification
ISO, CE
Material
Galvanized Sheet
Noise Level
Low
Lifetime
10-15 years
Filter Type
Panel, Bag, Carbon, HEPA
Mounting
Floor Standing / Ceiling
Package
Crates (Sections or Flat-Packed)
Product Overview
Air Handling Unit
Designed for versatility, our EF series air handling units excel in heating, cooling, humidification, and dehumidification, making them perfect for both indoor and outdoor settings.

Each unit is equipped with a powerful plug fan, a high-efficiency rotary heat exchanger, a plate heat exchanger, advanced heating and cooling coils, and multiple filters. These AHUs are categorized into three primary installation types to meet project requirements:

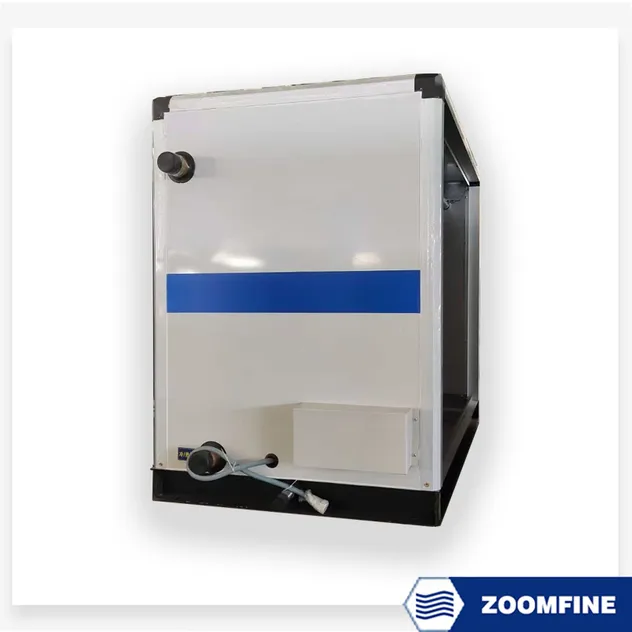

Vertical AHU

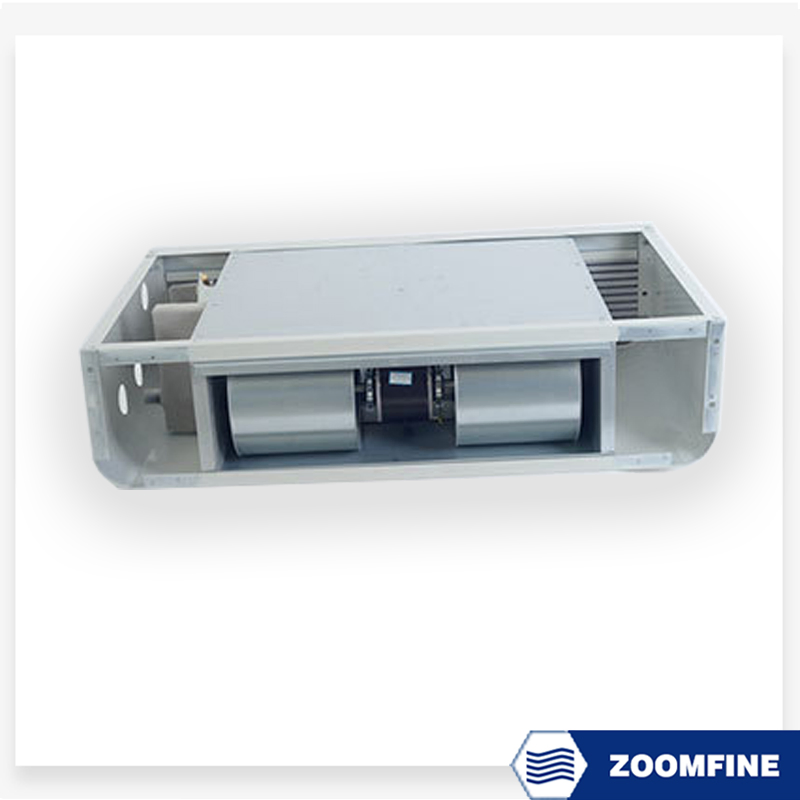

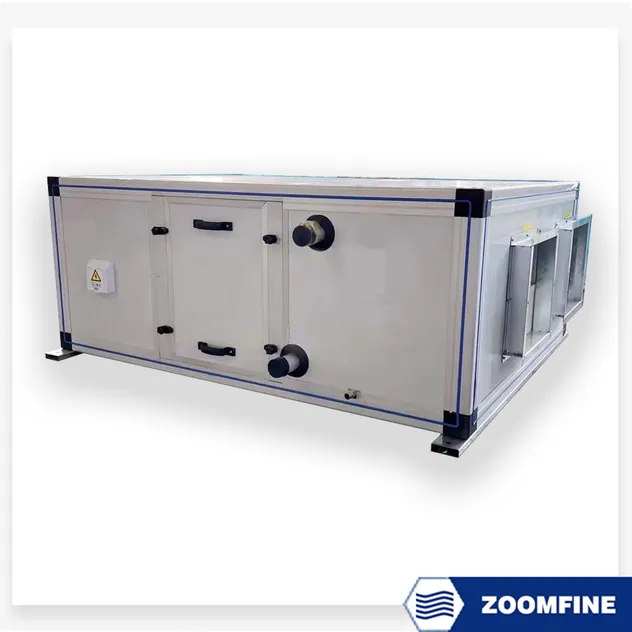

Ceiling AHU

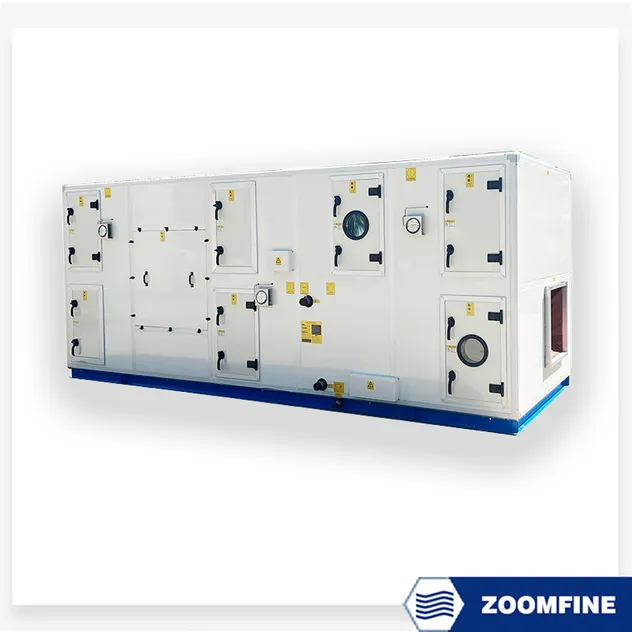

Horizontal AHU
1. Vertical: Installed upright, designed for space-saving in limited horizontal areas.
2. Ceiling Mount: Fits seamlessly within false ceilings or mounted directly to maximize floor space.
3. Horizontal: Ideal for flat profiles and effective airflow distribution along long duct runs.
Technical Sheet & Drawing

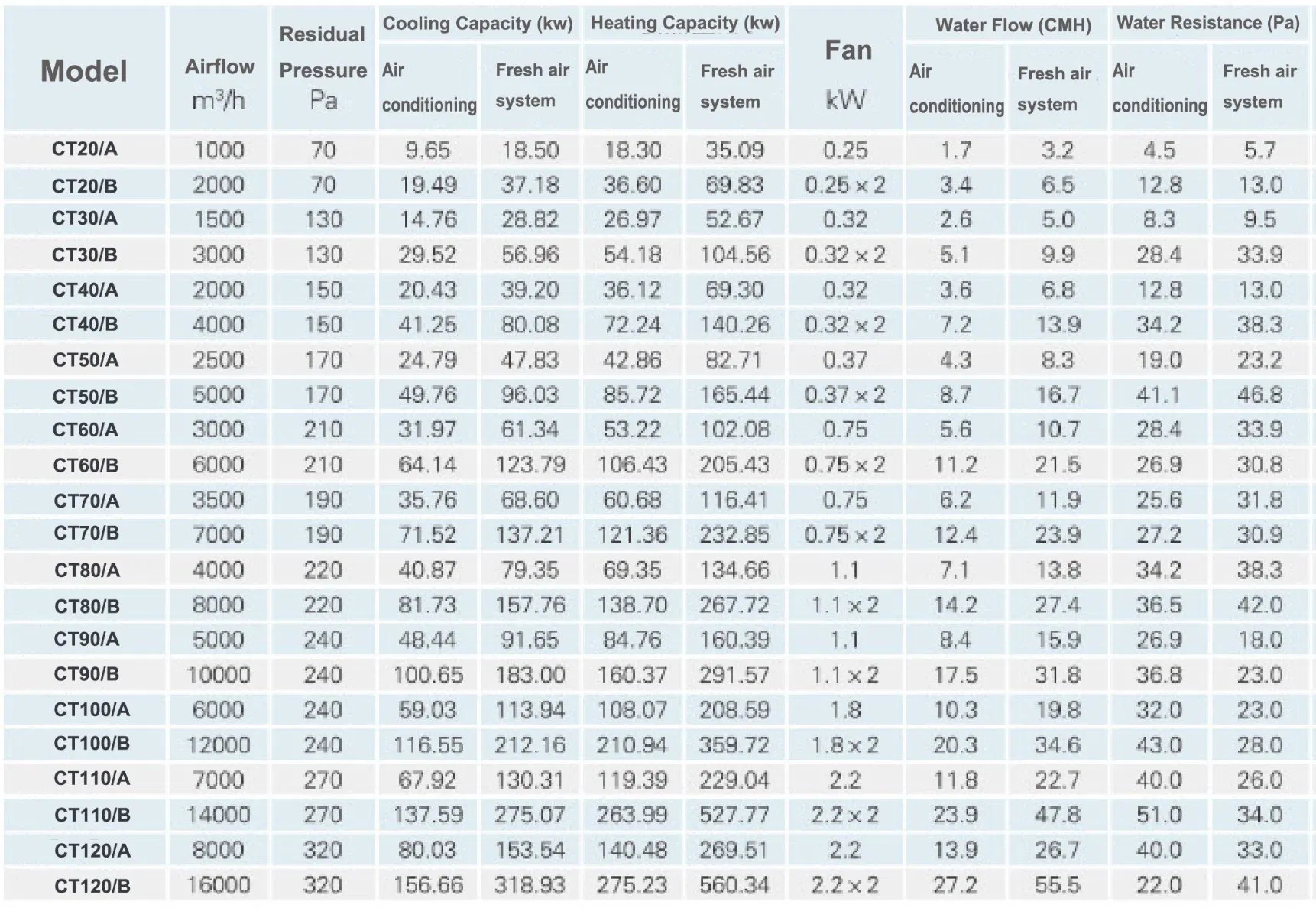

Technical Drawing 1

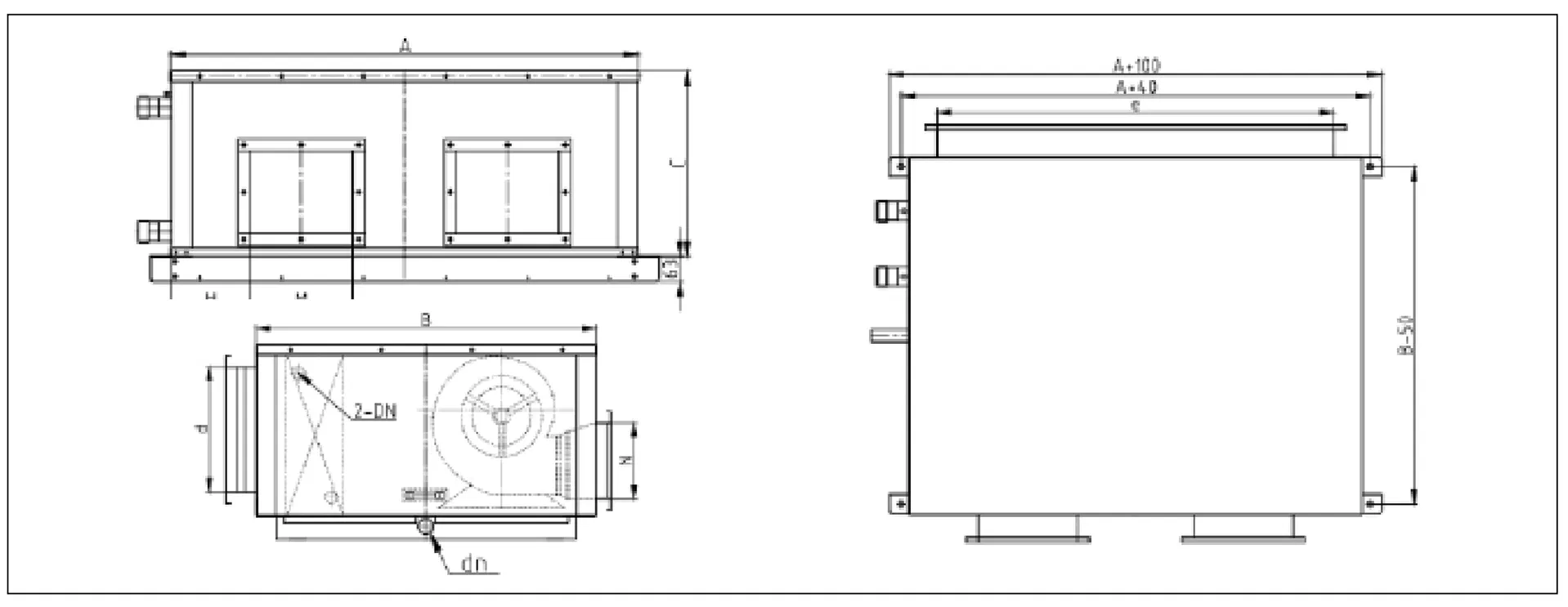

Technical Drawing 2
Model Rated Air Flow (CMH) Dimension (mm) Airflow (CMH) at Velocity (m/s) Static Pressure (Pa)
Width Height 2.25 m/s 2.5 m/s 2.75 m/s
ZMK/203050805885274530503355200-800
ZMK/4050201005985451850205522200-800
ZMK/60802512051185722380258828200-800
ZMK/1002008216051885180742008222090200-800
ZMK/3003006018052185270543006033066200-800
Core Features
Frame Structure

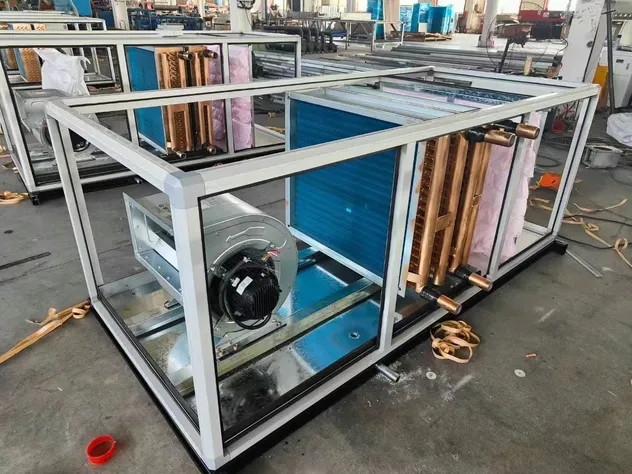

Panel Details
Fan Motor

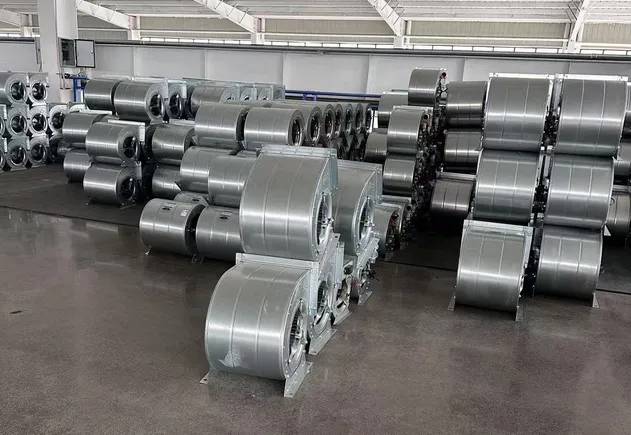

Frame & Panel: Robust aluminum alloy or metal frames provide exceptional strength and corrosion resistance. Panels use high-density polyurethane insulation for superior thermal performance and noise reduction.
Advanced Condenser: High-quality copper tubes with aluminum fins ensure maximum heat transfer efficiency and reliability.

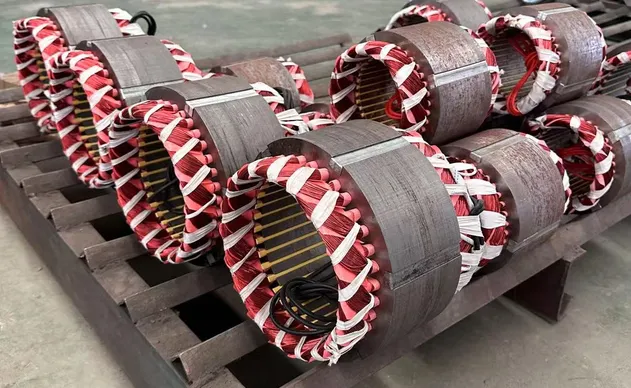

Fan & Motor: Equipped with double-inlet centrifugal fans, dynamically balanced for smooth operation. Compact units feature external rotor motors for maintenance-free direct drive.
Applications
Our systems are essential for diverse environments including:
  • Public Spaces: Hotels, Theaters, Shopping Malls, Office Buildings.
  • Industrial: Electronics, Chemicals, Pharmaceuticals, Food Production.
  • Specialized: Healthcare and Light Manufacturing.

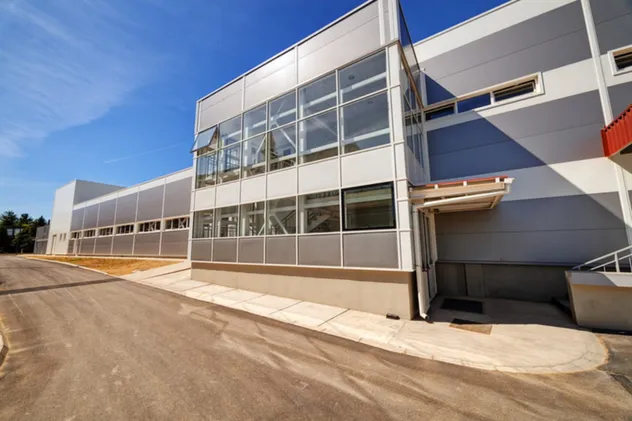

Application 1
Application 2
Application 3
Project Cases
Project 1

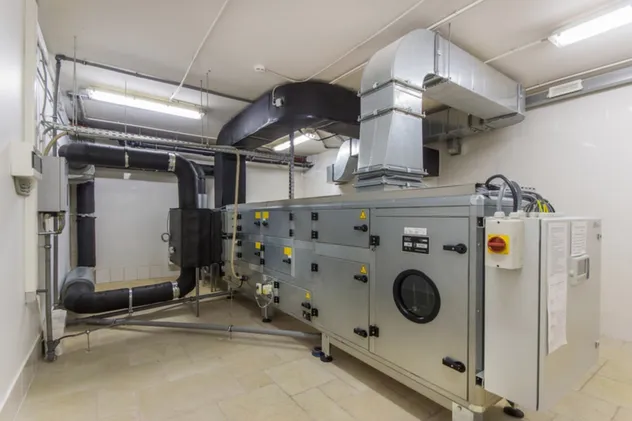

Project 2
Project 3
Packing & Delivery
Packing

Standard Warranty: One-year warranty from the start-up date or 18 months from shipment—whichever comes first. Extended warranty options are available. We provide support for installation and commissioning to ensure a hassle-free experience.

Frequently Asked Questions
What is the range of airflow for these units?
The units cover a wide range of airflow capacities, typically from 1,000 to 178,000 CMH, and can be customized starting from 35 CMH for specific needs.
What insulation materials are used in the panels?
The panels are filled with high-density polyurethane or polystyrene insulation, offering better thermal performance and noise reduction than traditional glass wool.
What are the different installation types available?
We offer three main installation configurations: Vertical (upright), Horizontal (flat profile), and Ceiling/False Ceiling mount (space-saving).
What kind of filters can be integrated?
The units support various filter types, including Panel, Bag/Pleat, Carbon cylinder filters, and HEPA filters for high-purity environments.
Is the fan maintenance-free?
Yes, our fans use high-quality closed ball bearings that are pre-lubricated and designed to be maintenance-free under standard operating conditions. External rotor motors also eliminate the need for belt maintenance.
How are the units packaged for delivery?

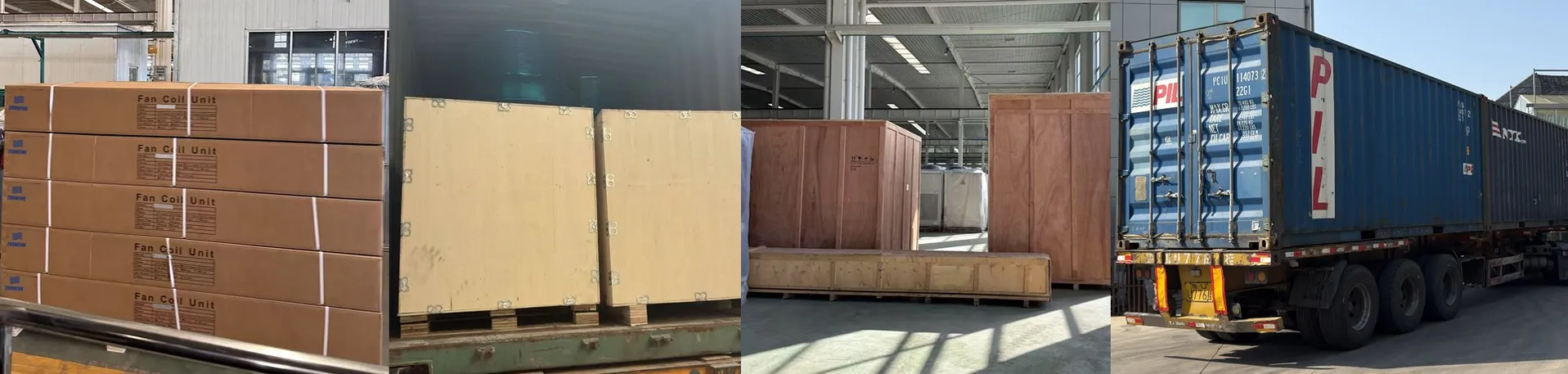

Units are typically delivered in protective crates. Depending on the size and site requirements, they can be shipped in sections or flat-packed.
