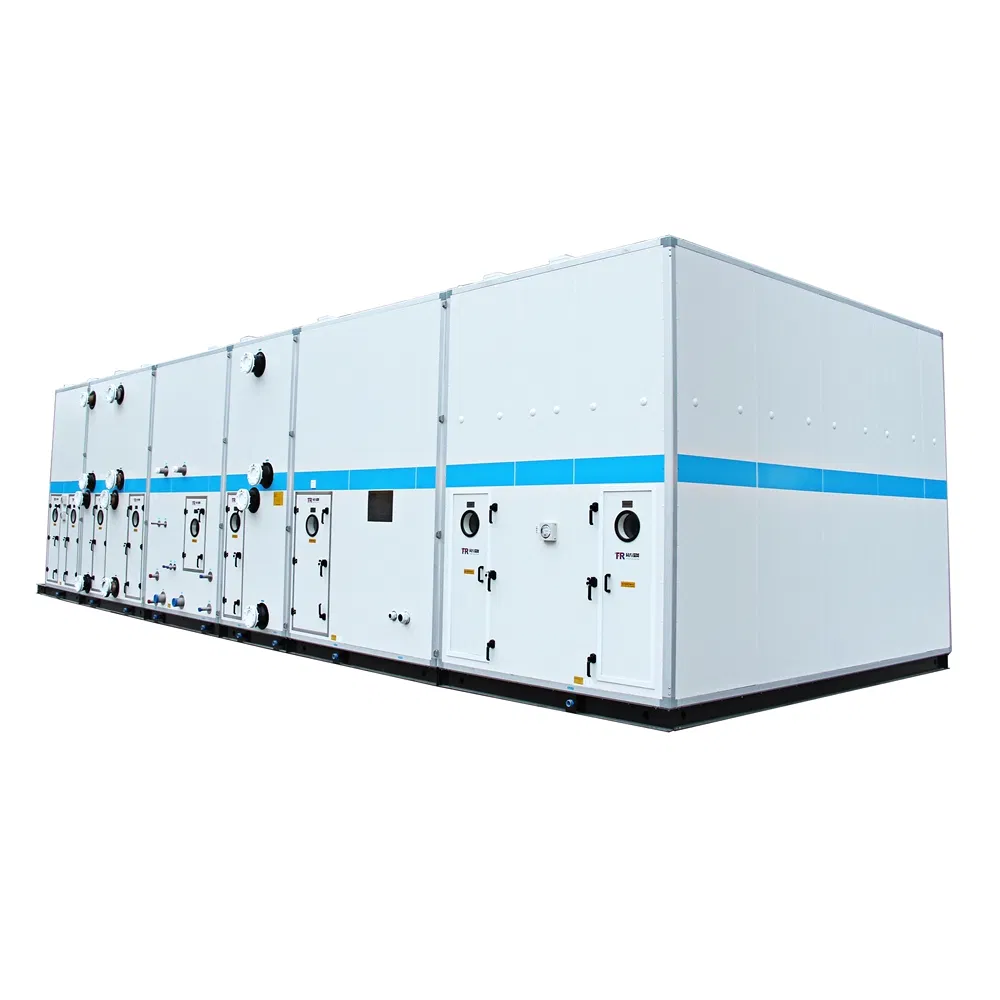

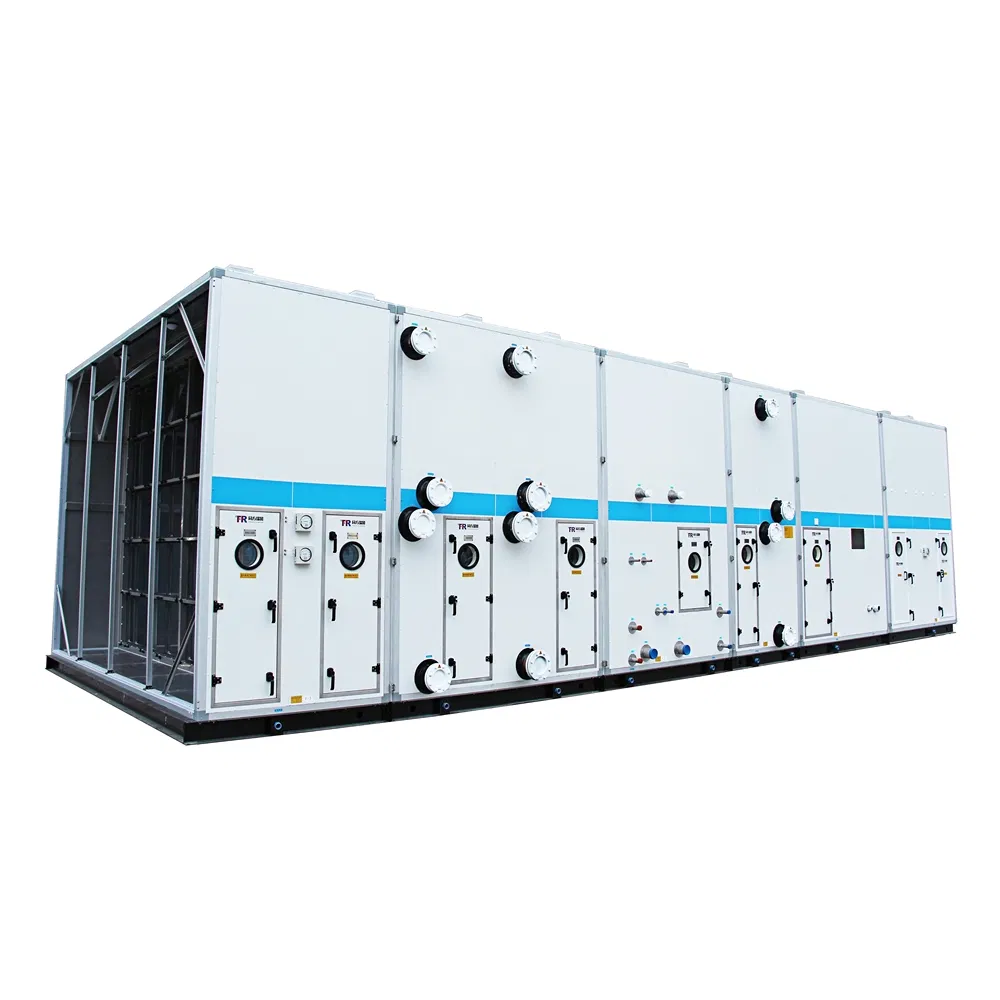

Low-Vibration Energy-Saving Double-Fan Comfort Combined Air Conditioning Unit for Hotel Guest Room

Customization:	Available
Type:	Air Handling Unit
Air Tube Material:	Galvanized Sheet

📋

Basic Information

Model NO.:Double-fan T/H Joint-Control Type

Corrosion Durability:Higher

Operating Voltage:380/400 VAC

Noise Level:Low

Application Fields:Medicine / Industrial

Mounting:Ceiling Mount

Lifetime:5~10 years

Certification:RoHS, UR, ISO, CE, CCC

Product Name:Modular Air Handling Unit

Rated Air Volume:2500-100000 M/3/H

⚙️

Product Description

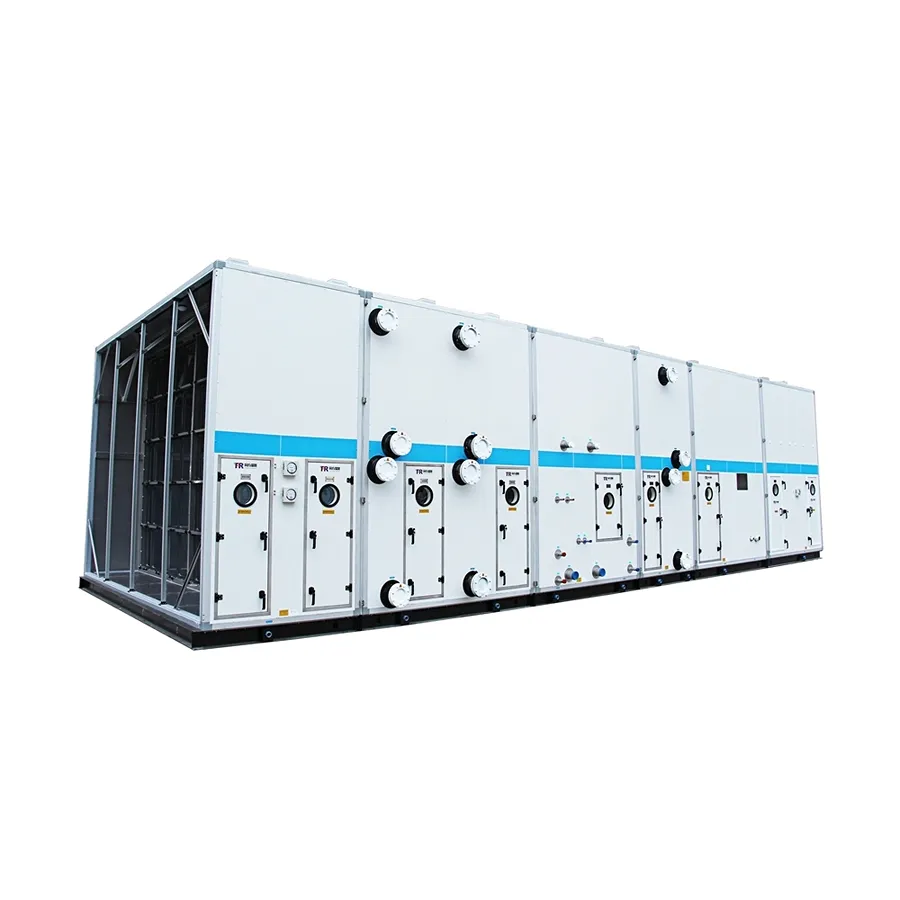

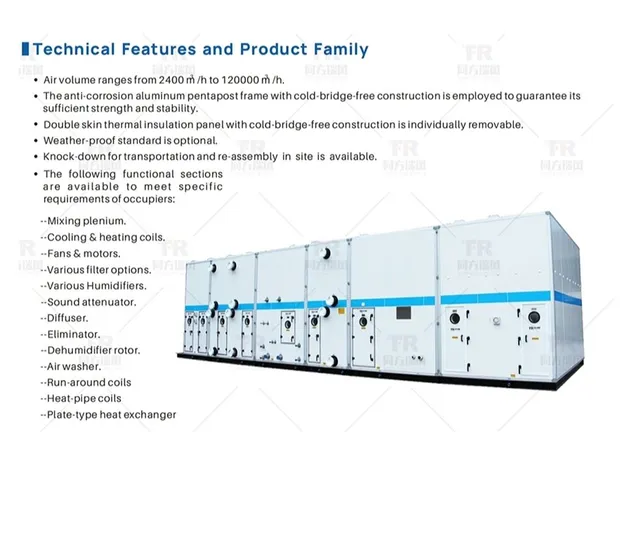

MODULAR AIR HANDLING UNIT

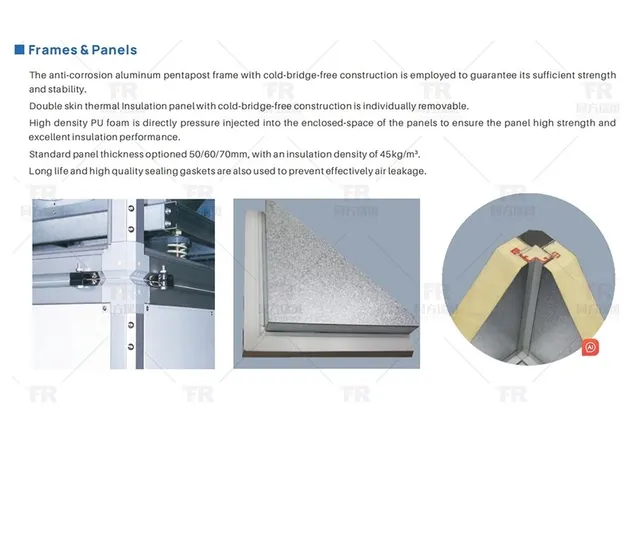

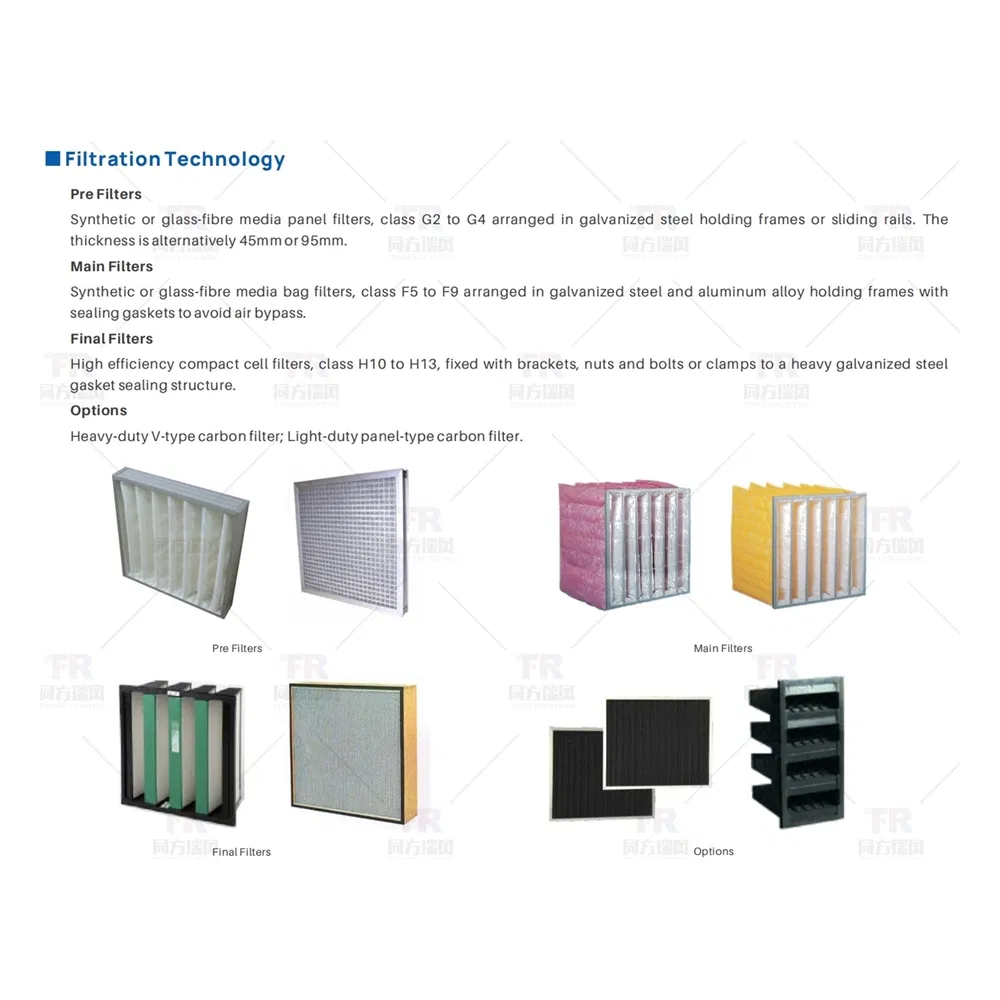

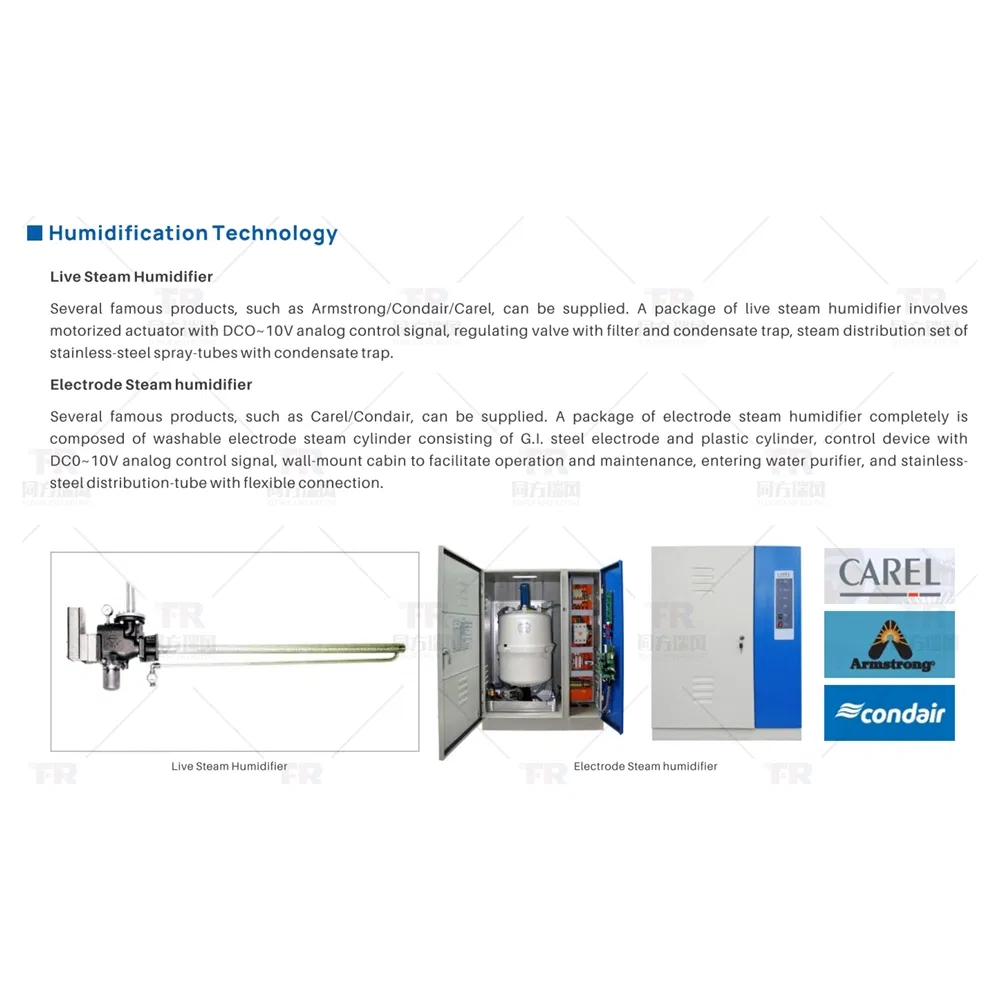

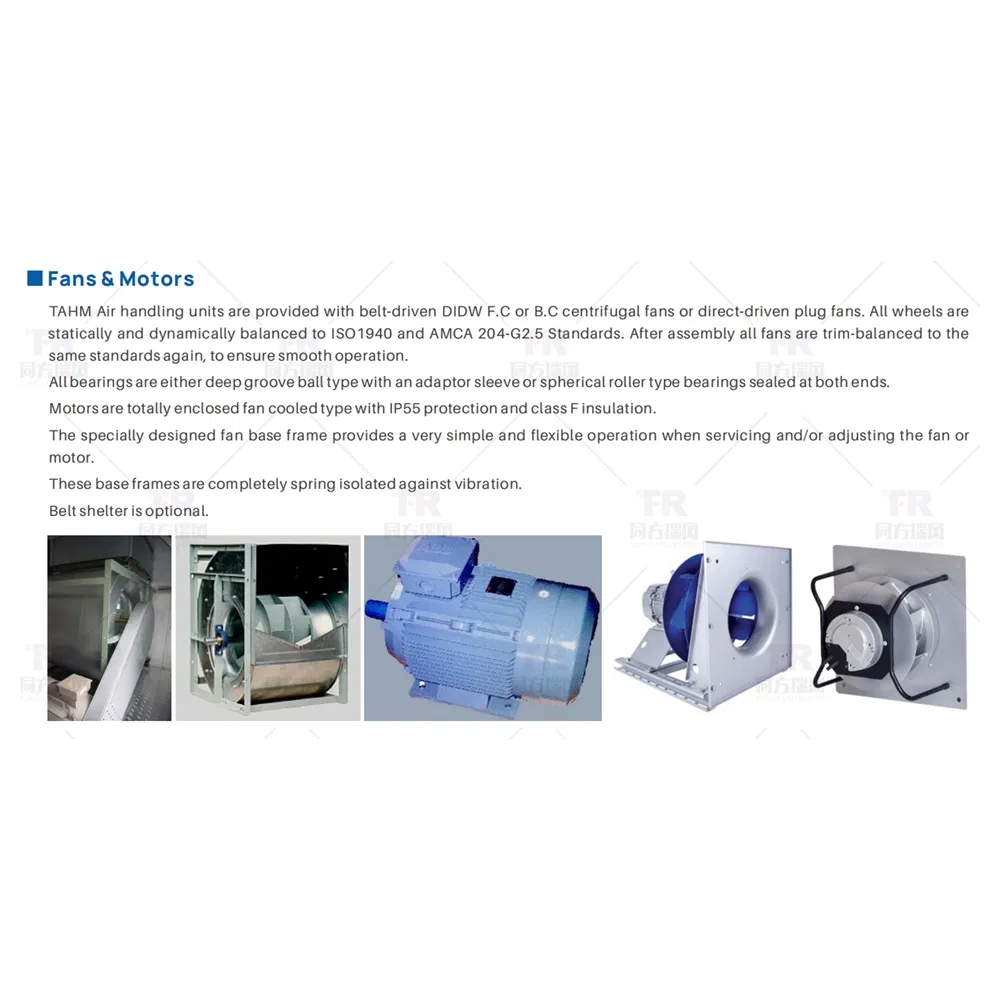

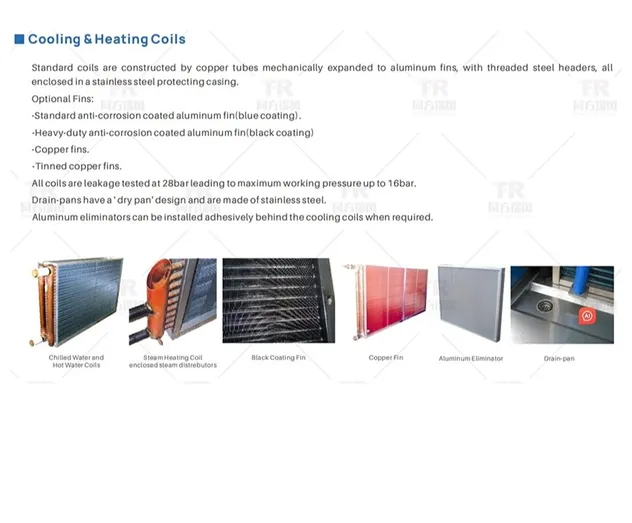

The modular air handling unit comprises a robust corrosion-resistant aluminum alloy frame and detachable polyurethane double-sided insulation panels, facilitating easy maintenance. It consists of essential functional components, including mixed air sections, cooling/heating coils, high-efficiency filters, fans, humidifiers, and soundproofing segments. The system supports outdoor installations and offers on-site assembly for tailored climate control solutions.

📷

Detailed Photos

Delivers efficient temperature and humidity control with customizable configurations.
Advanced dehumidification and heat recovery technologies ensure optimal air quality.
Designed for both comfort and industrial applications, minimizing maintenance costs.

📊

Technical Specification

TECHNICAL PARAMETERS
Rated Air Volume	2500-100000 m/3/h
All-Heat Cooling Capacity	11.6-1656 kw
Sensible Heat Capacity	8.2-678 kw
Chilled Water Flow	2.02-285.52 t/h
Chilled Water Resistance	18.7-40.1 kpa
Motor Power	1.1-90 kw
Length Range	4730-7590 mm
Width Range	760-5610 mm
Height Range	720-2580 mm
Chilled Water Condition	7℃ / 12℃
Fan Full Pressure	600-1600 pa

💡

Application Solutions

Comfort Control Solution

Combines mixed air, pre-filter, cooling, heating, and fan components for general residential settings.

T/H Combined Control

Incorporates additional filtration stages for higher air quality demands in industrial use.

Independent Control

Emphasizes separate temperature and humidity controls for enhanced energy efficiency.

High-Performance

Targeted for hospitals or laboratories requiring stringent air quality and climate control.

❓
