a Pilot Operated Relief Valve

i

Basic Information

Model NO.:EMXF10-02 Relief valves

Drive:Hydraulic

Type:Directly Operated Type

Rated Pressure:50bar

Rated Flow:20L/Min

Temp Range:-20~+100℃

Install Torque:38~43nm

Transport Package:Carton

HS Code:8481400000

Capacity:50000 pieces/Year

★

Product Description

We specialize in the production of threaded cartridge valves and precision spare parts. With a legacy spanning over two decades, our forte lies in the harmonious blend of cutting-edge technology and innovation. We boast a fleet of over 200 state-of-the-art production and processing machines, all meticulously selected from global leaders. Our arsenal is further enhanced with over 50 specialized measuring and testing apparatus, empowering us to achieve an impressive annual output exceeding 1 million hydraulic components.

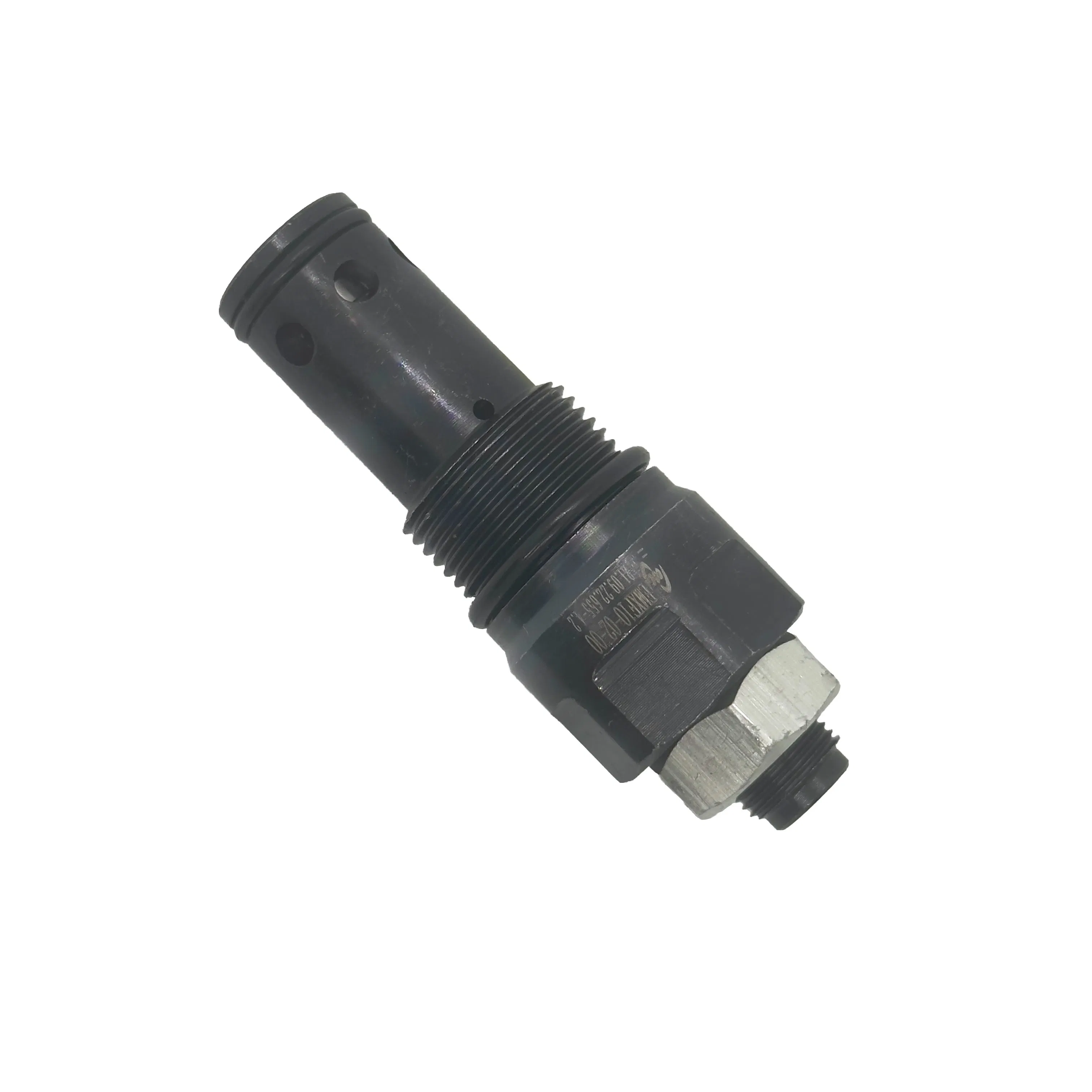

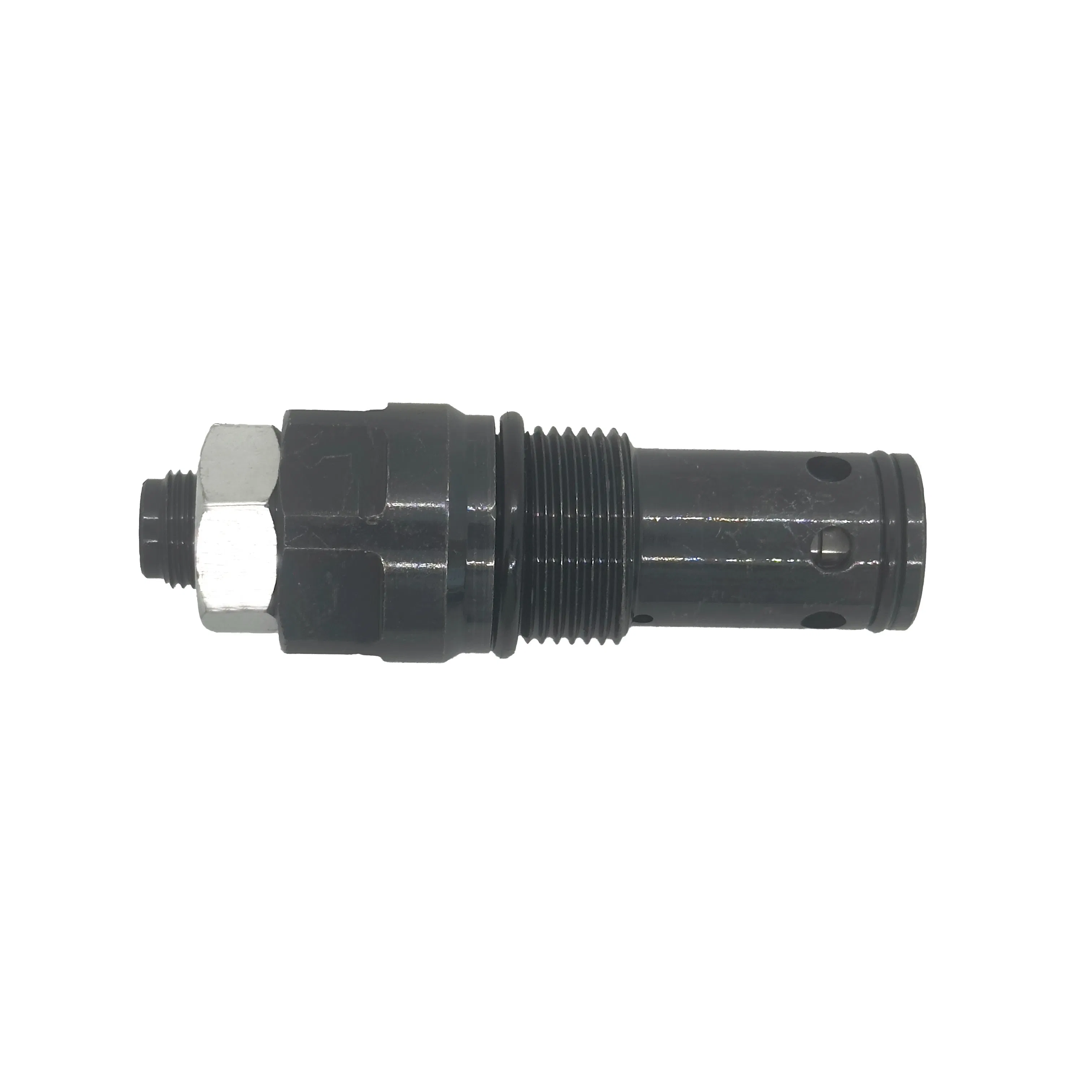

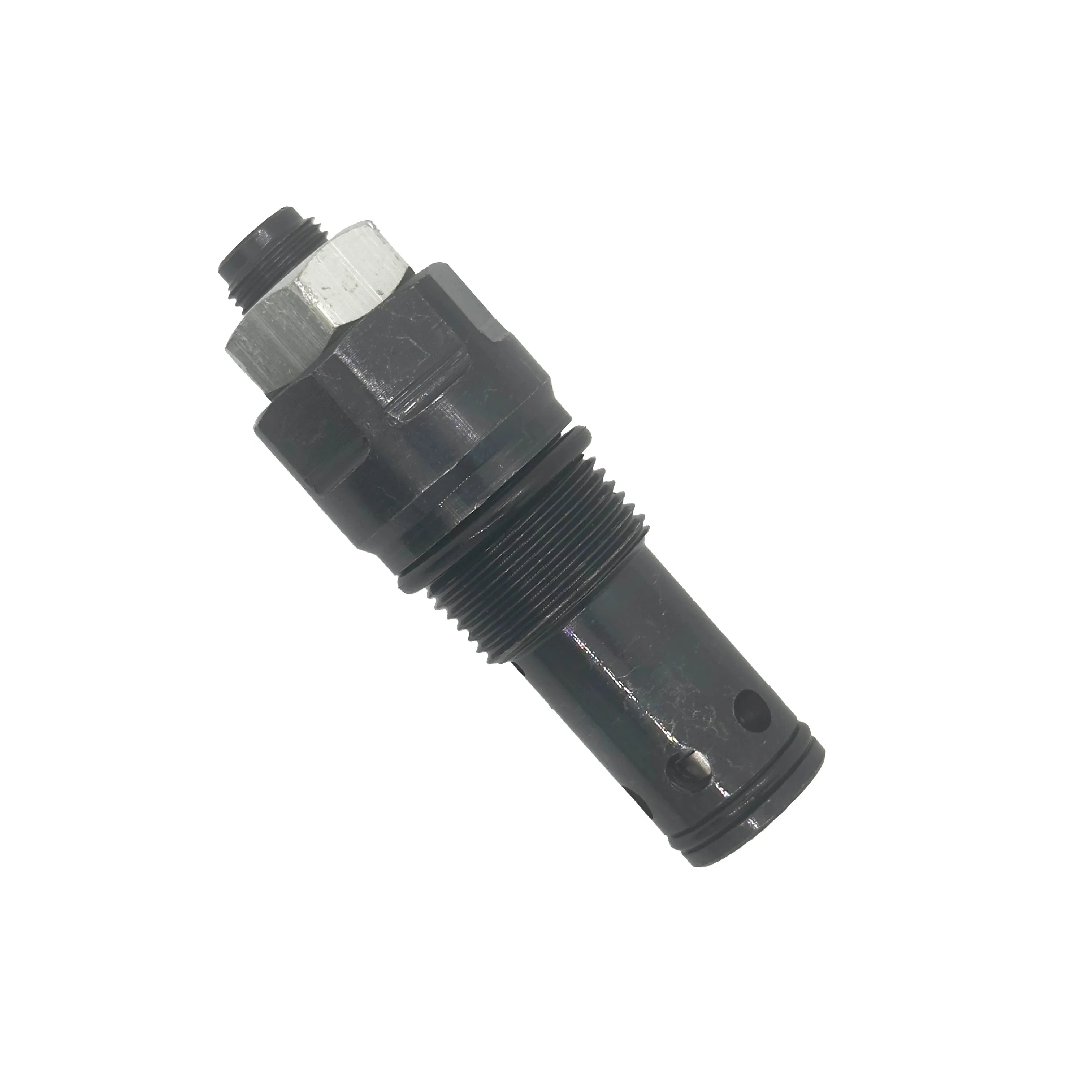

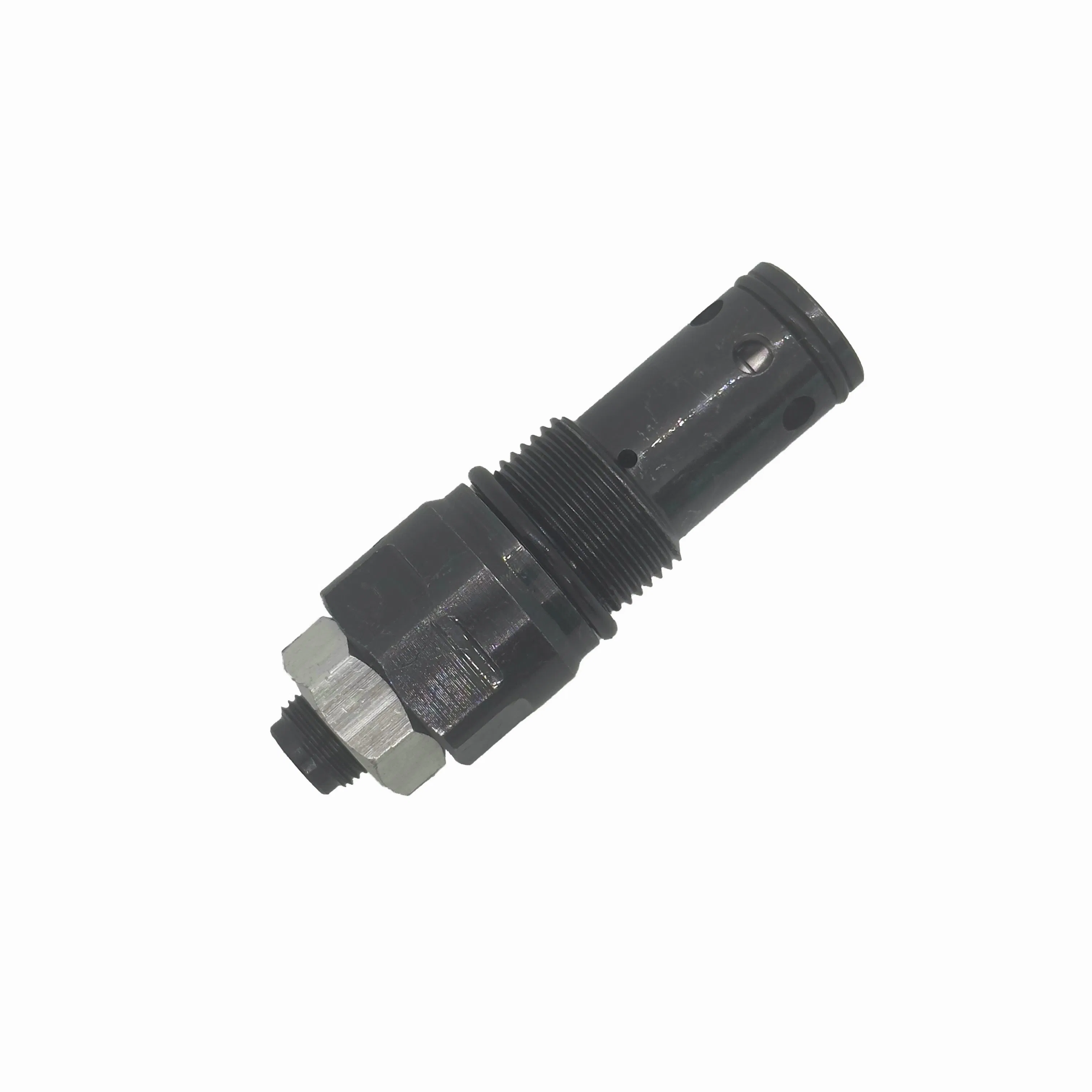

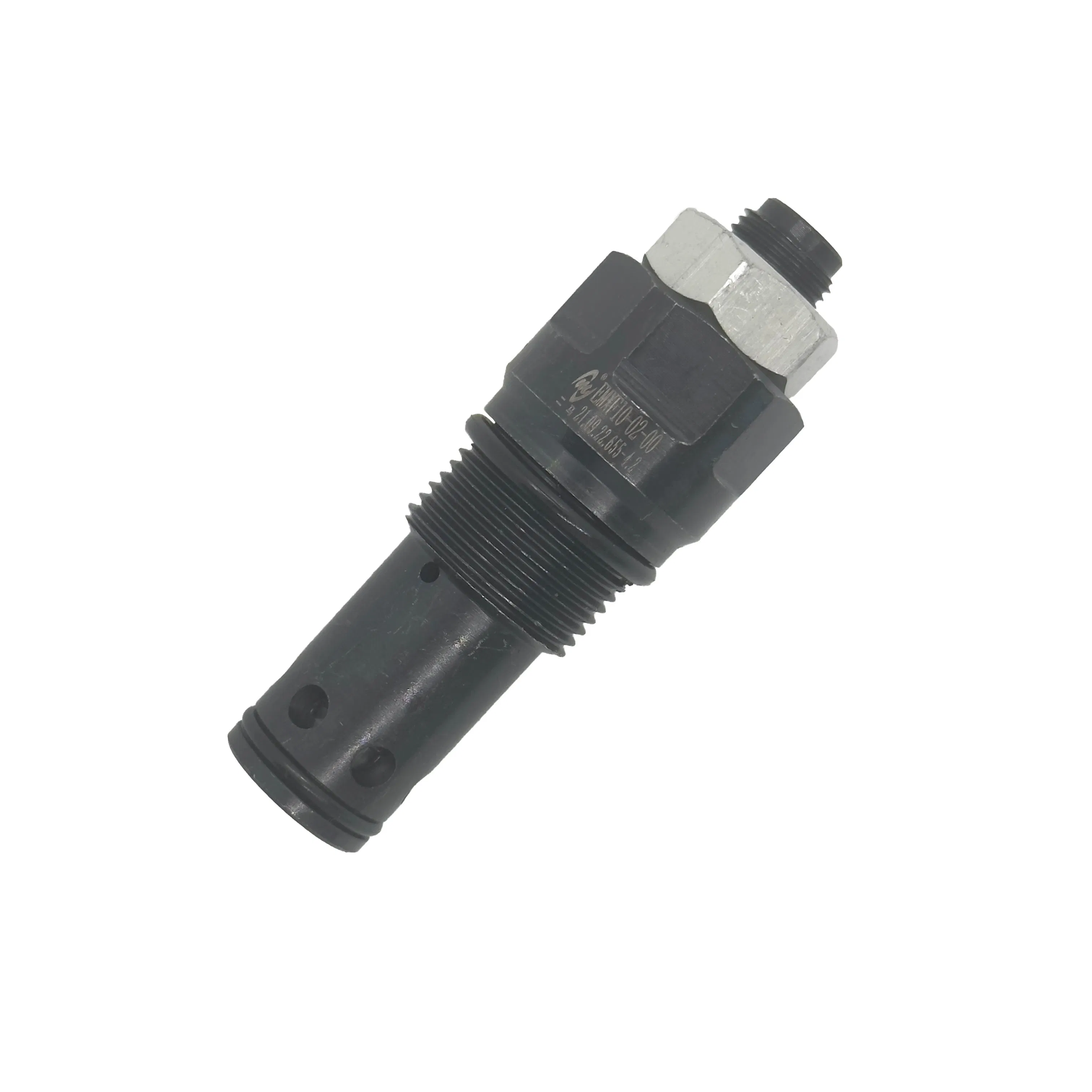

Pilot Operated Relief Valve Main View

⚙

Technical Specifications

DESCRIPTION:
When the pressure at "P" reaches the valve setting, the pilot spool starts to open. Next, the main spool opens because of the pressure drop between the inside and outside of the main spool, realizing overflow from P to T. This type of valve is always locked from T to P; reverse can withstand high back pressure. Suitable for hydraulic systems with high back pressure from T to P.

Parameter	Value
Rated Pressure	50bar
Rated Flow	20L/min
Cracking Rate	≥90%
Closing Rate	≥80%
Cleaning Code	20/18/15(NAS9)
Temperature Range	-20~+100℃
Pressure Change Per Turn	46.4bar
Installation Torque	38~43Nm
Nut Tightening Torque	23~28Nm

Right Elevation

Left Elevation

Front Elevation

✔

Performance & Symbols

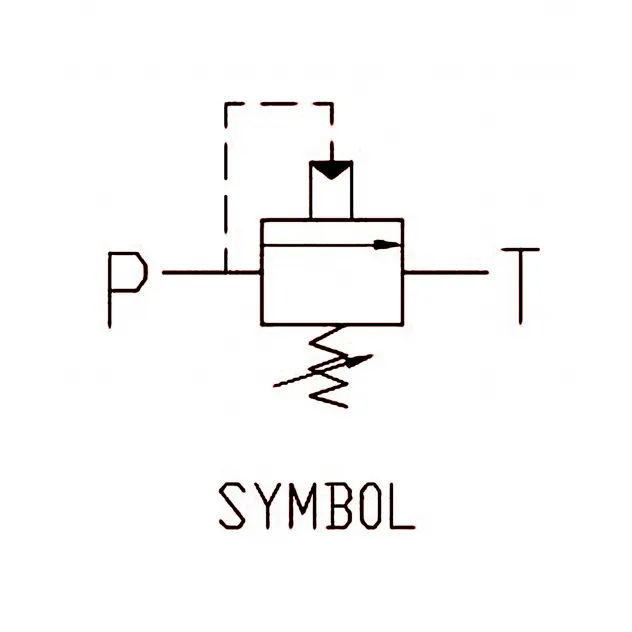

Hydraulic Symbol

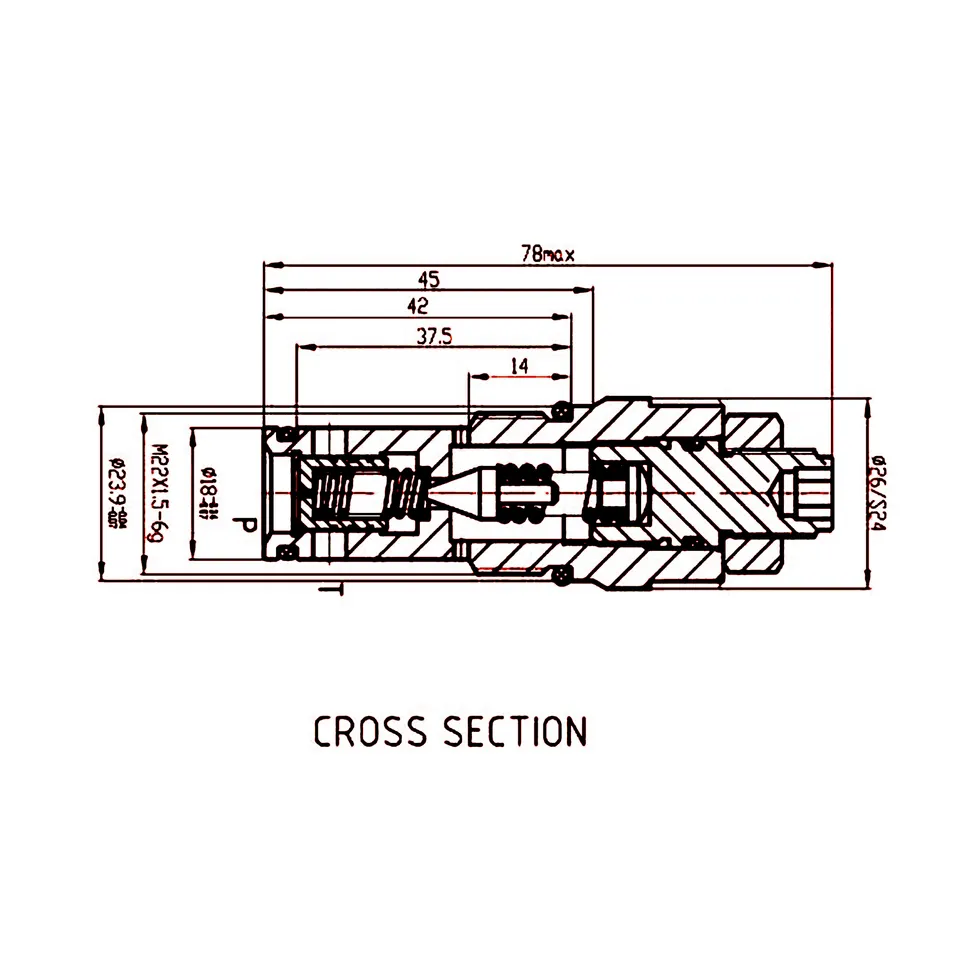

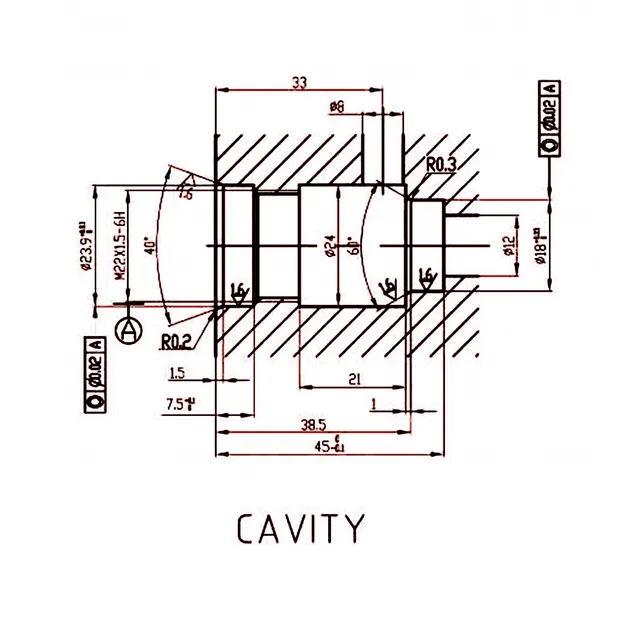

Cavity Dimensions

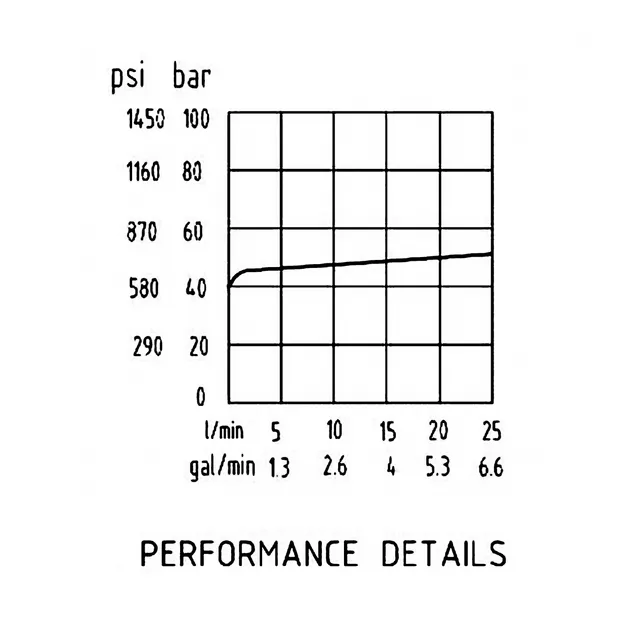

Performance Details

🛡
