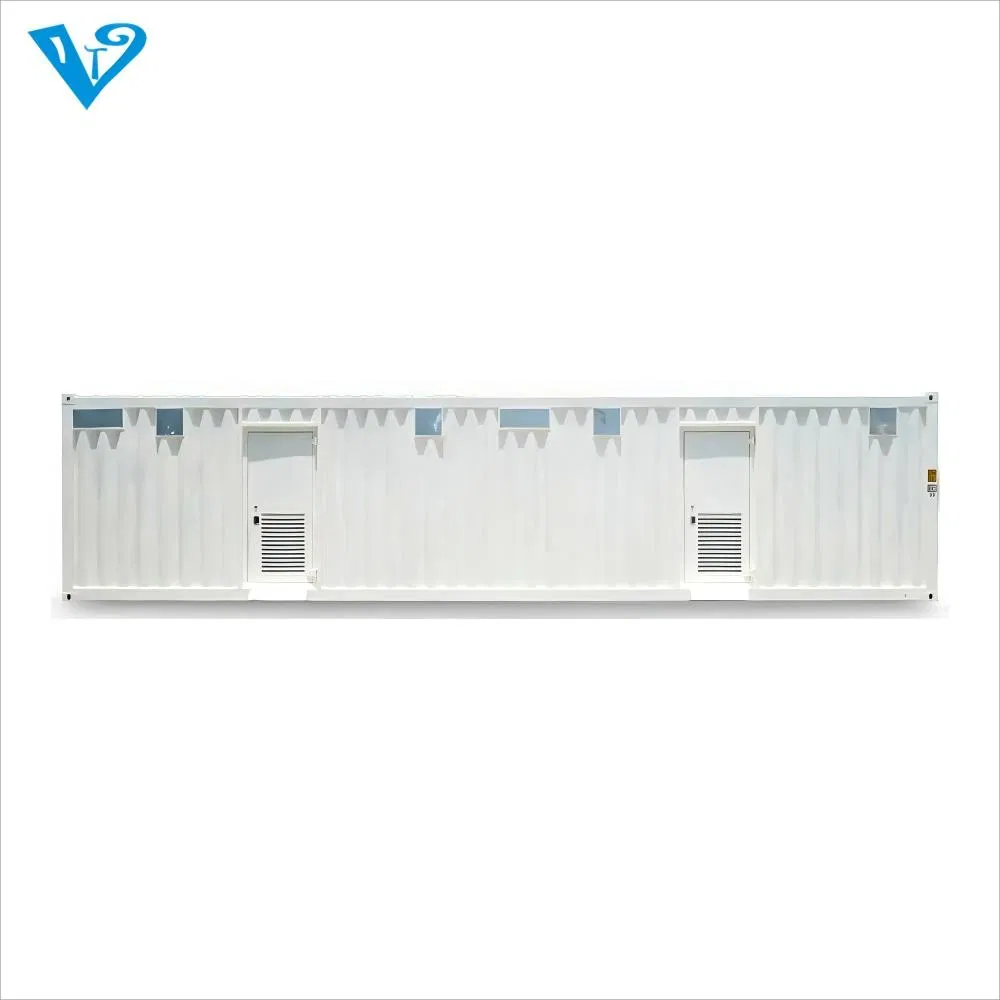

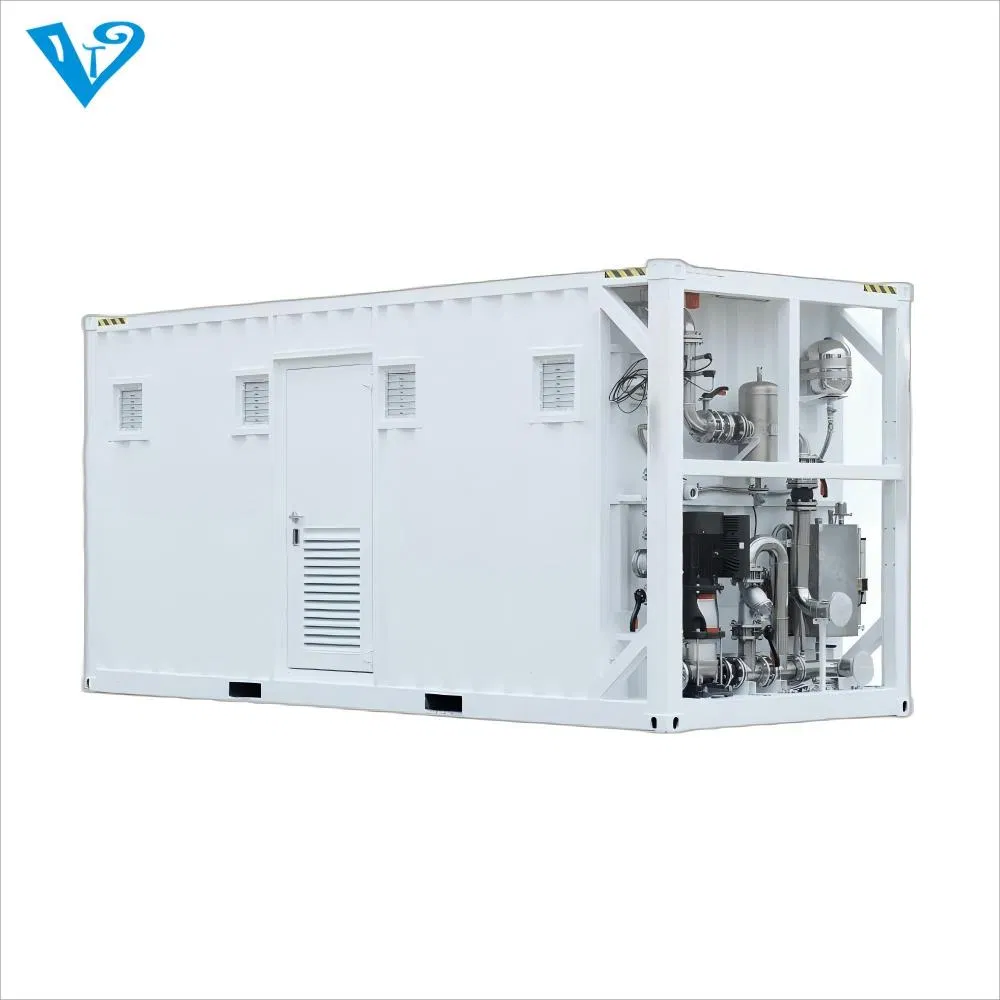

This Liquid-Cooled Crypto Mining Container is a professional solution designed for high-efficiency thermal management in blockchain operations. With over 16 years of expertise in HVAC manufacturing, these systems are engineered for durability and optimal performance in diverse environments.

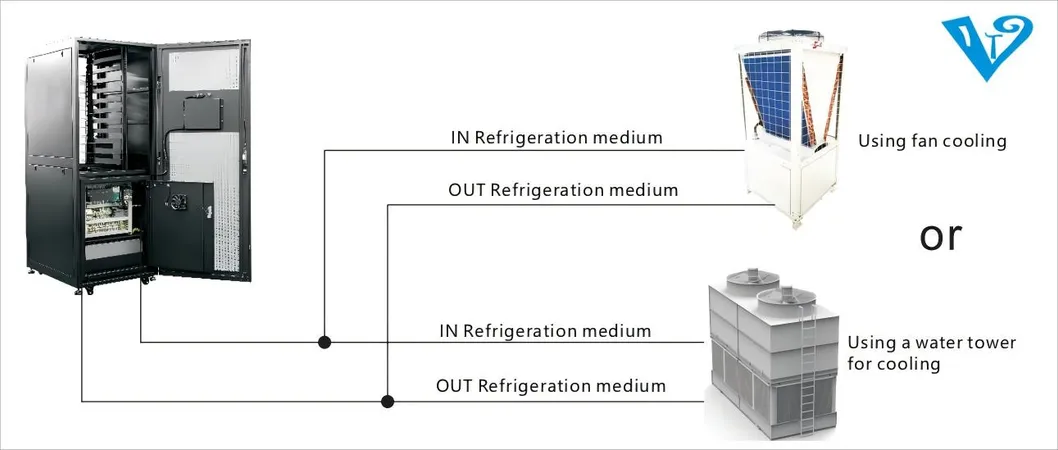

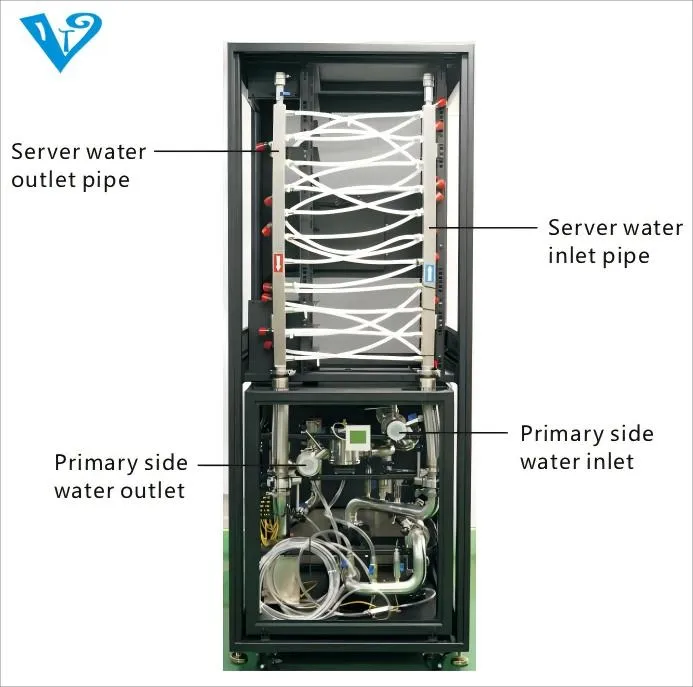

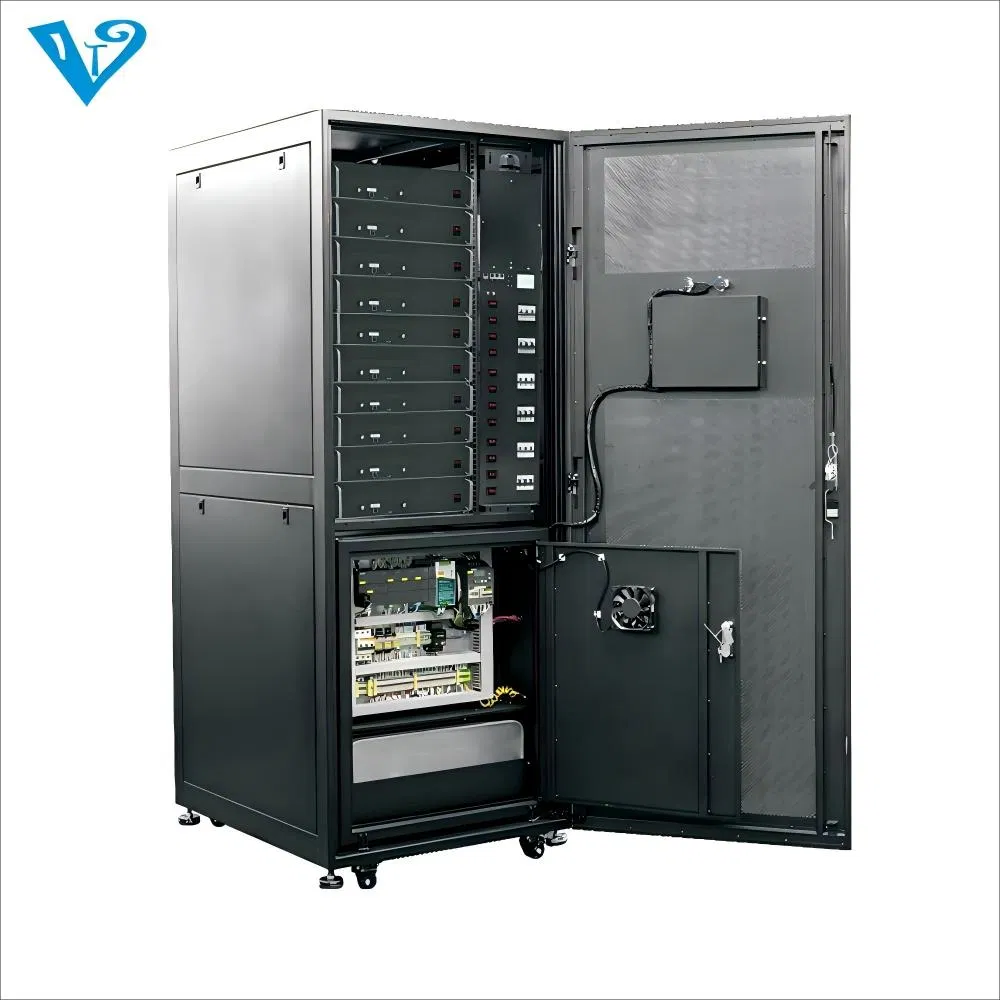

Cabinet Cooling System (100kW Type)
| Dimensions (W x D x H) | 800mm x 1000mm x 2000mm |
|---|
| Gross Weight | 480kg |
|---|
| Miner Capacity | 10 PCS 2U servers |
|---|
| Input Voltage | 380V@50Hz, 415V@60Hz |
|---|
| Power Rating | 100 kW |
|---|
| Heat Dissipation | Dry-cooler / Wet Cooling tower |
|---|
| Cooling Medium | Softened water / Antifreeze fluid |
|---|
| Monitoring | Temperature, liquid, water ban, pressure sensors, 10-inch touch screen |
|---|

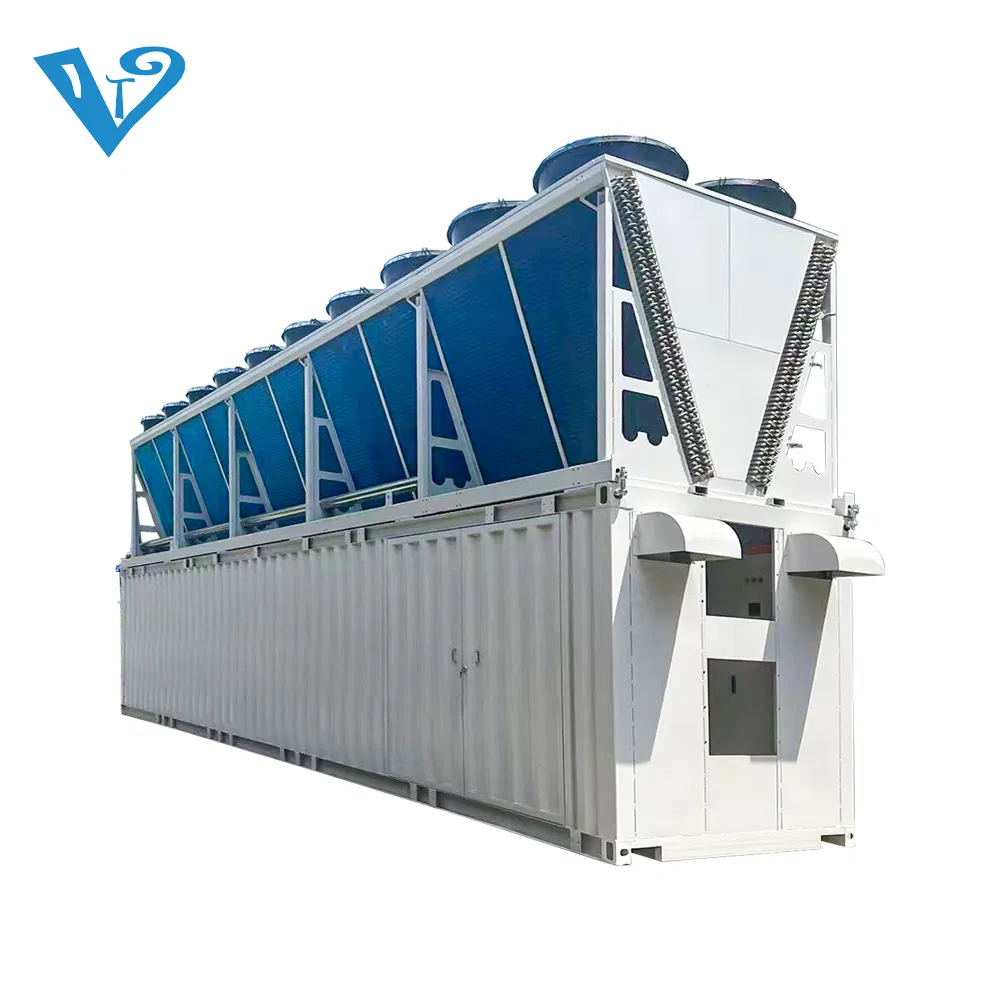

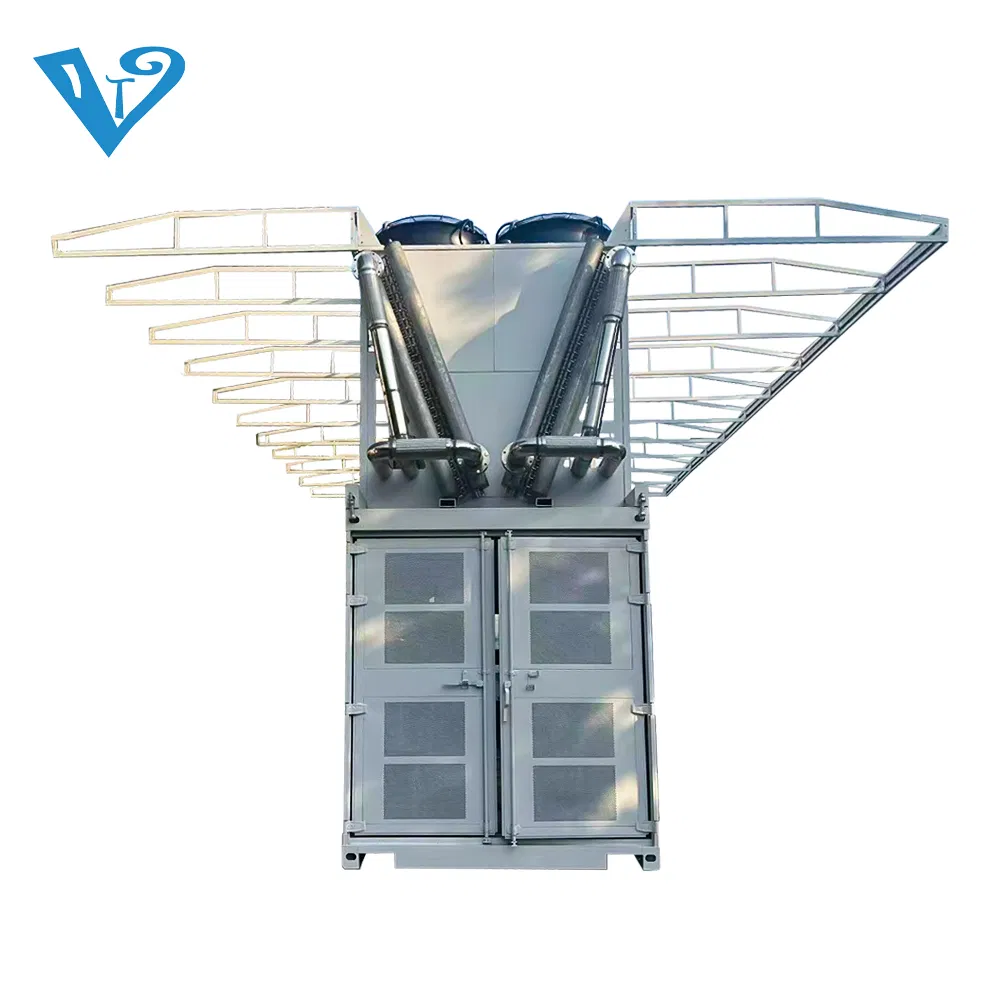

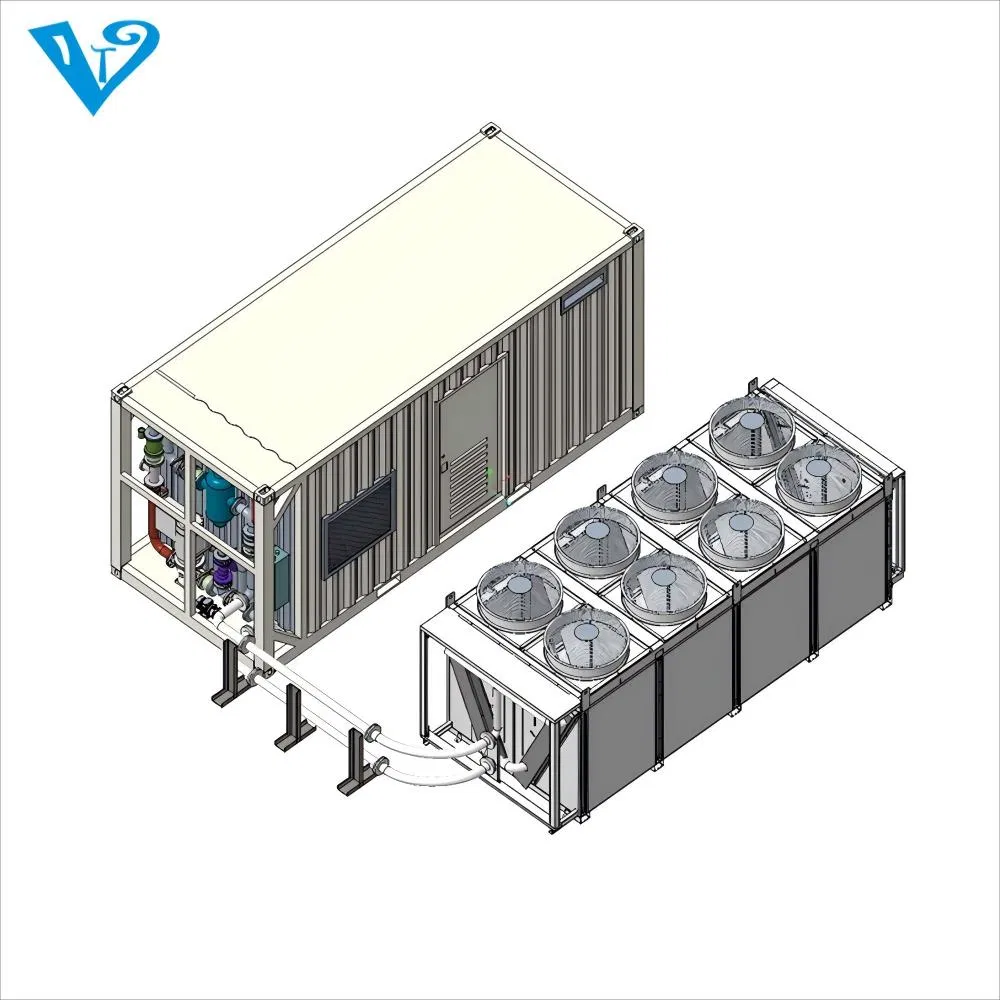

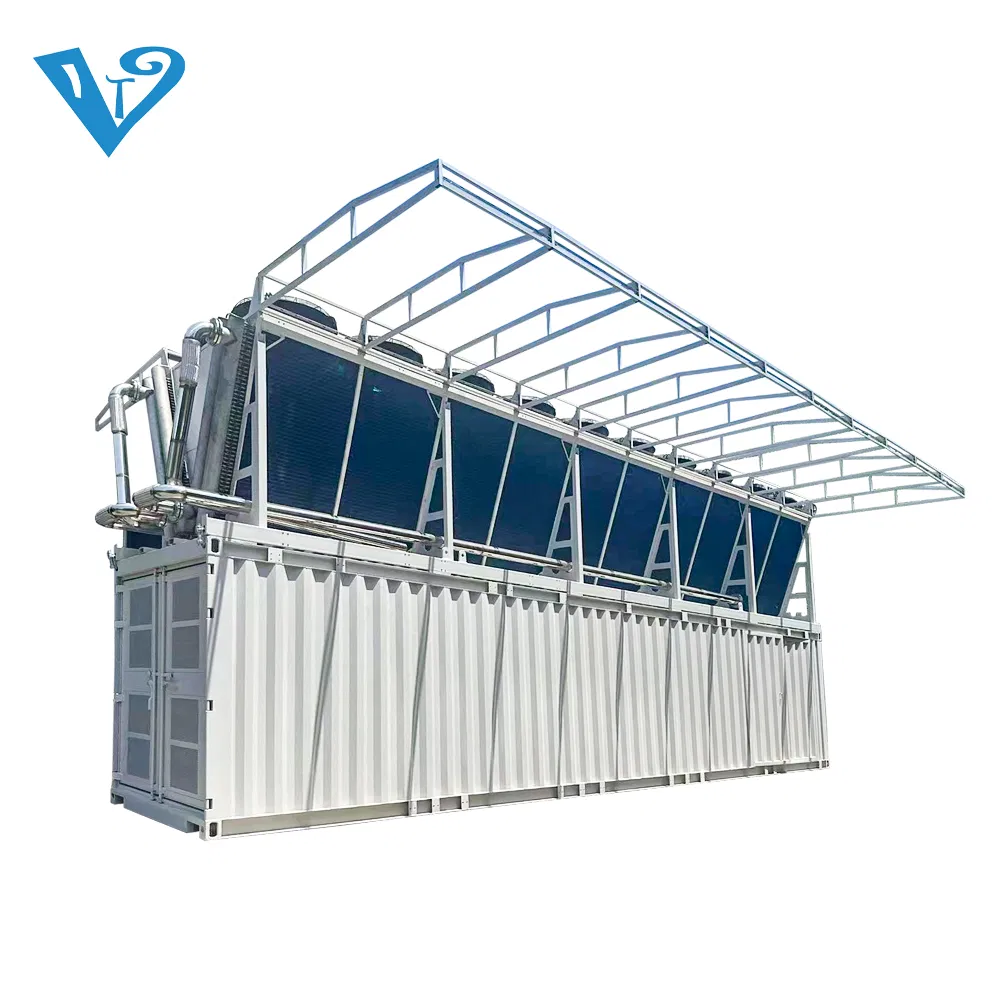

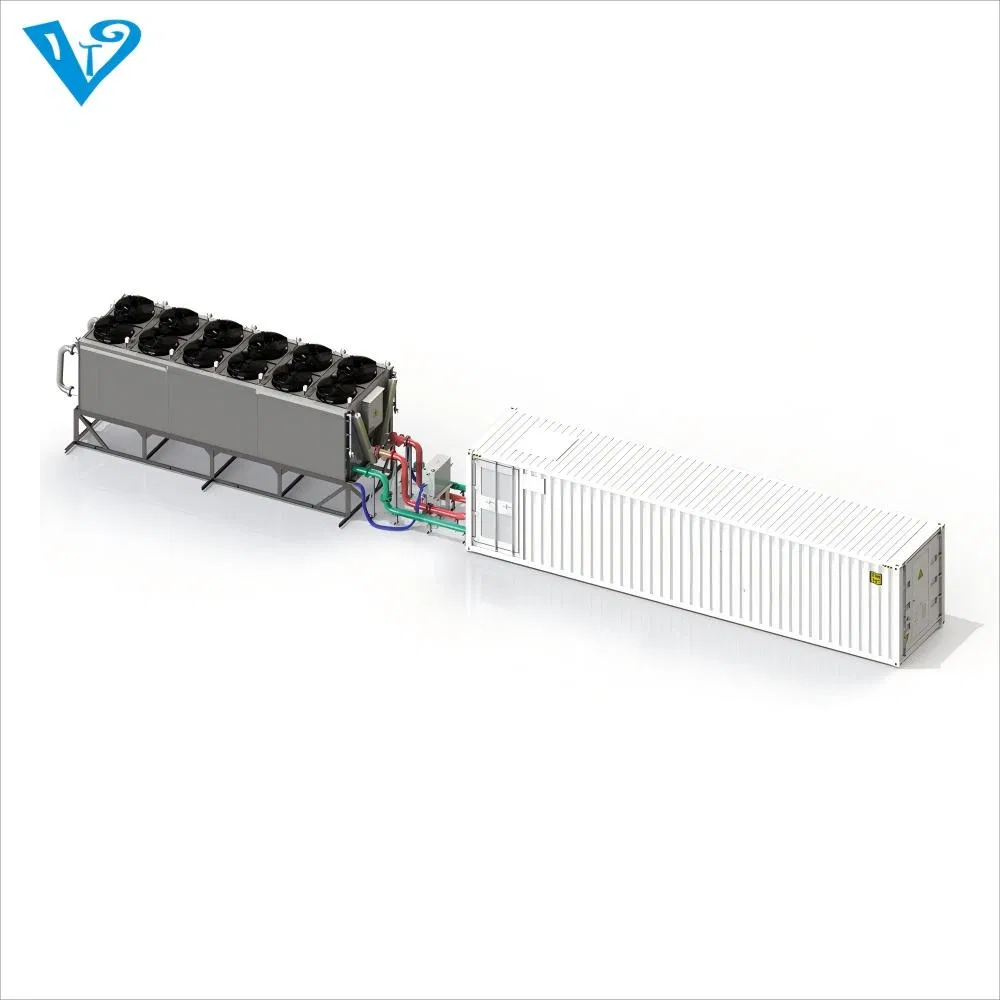

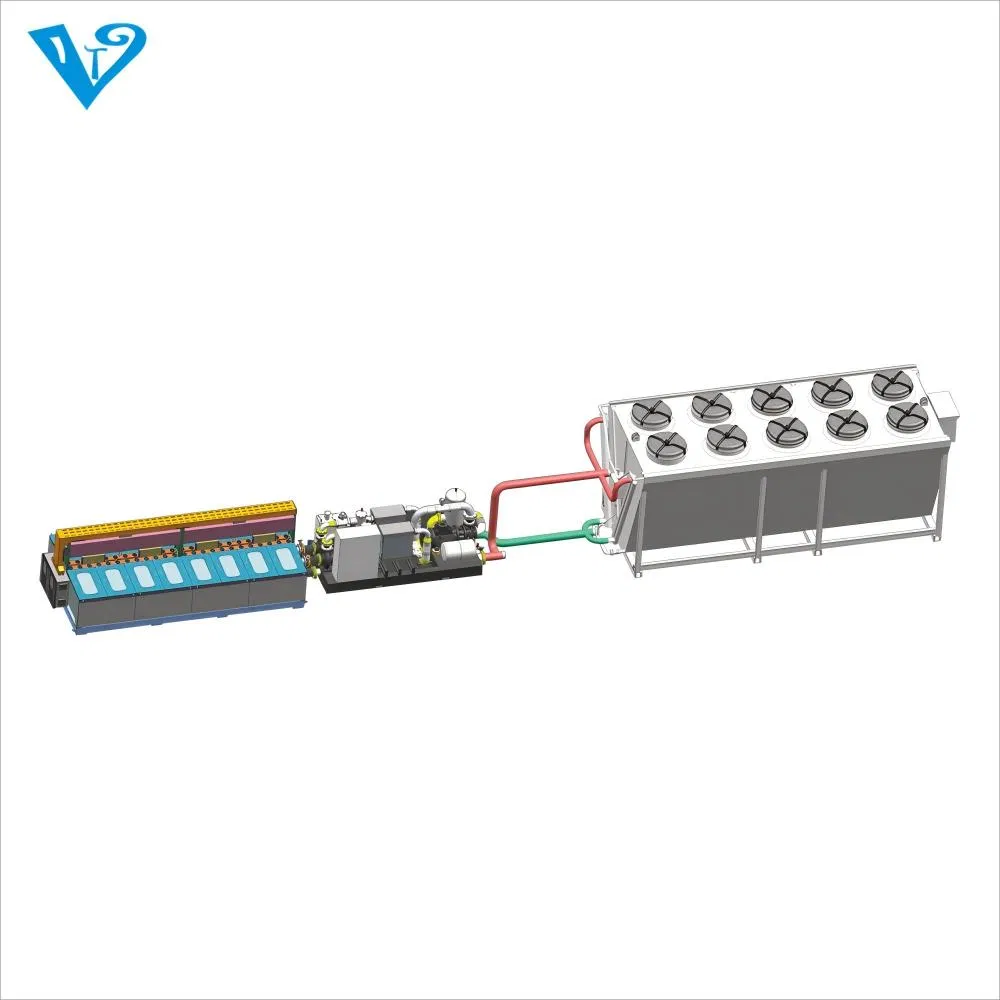

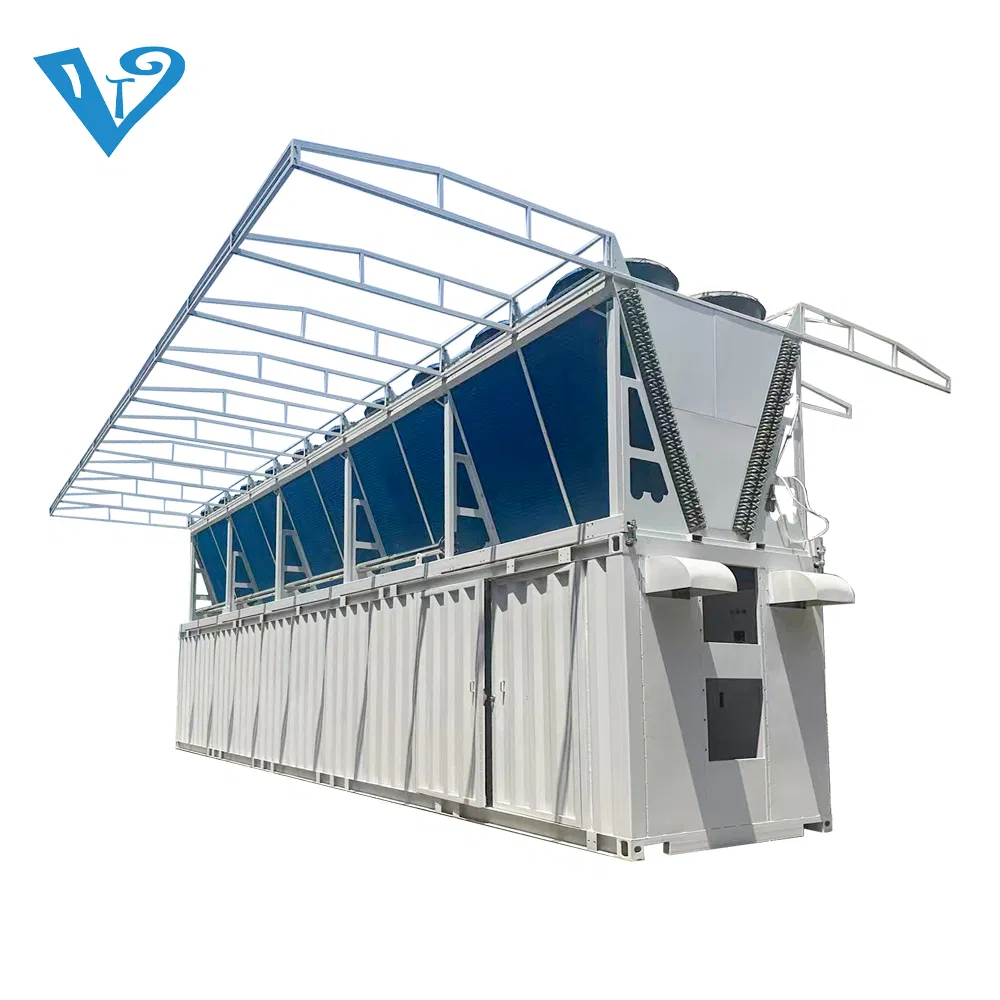

Hydro Cooling Container (1000kW Specification)
| Dimensions (W x D x H) | 6058mm x 2438mm x 2896mm |
|---|
| Gross Weight | Approx. 6500kg (6.5 tons) |
|---|
| Miner Capacity | 126pcs 2U |
|---|
| Power Rating | 1000 kW |
|---|
| Heat Dissipation Options | Dry-cooler / Cooling tower / Hybrid / Heat recovery system |
|---|
| Monitoring Content | Industrial PC, Web/APP Monitoring, Pressure & Water sensors, Smoke alarm, Smart PDU |
|---|
| Working Temp | -25~40ºC |
|---|
?
Frequently Asked Questions

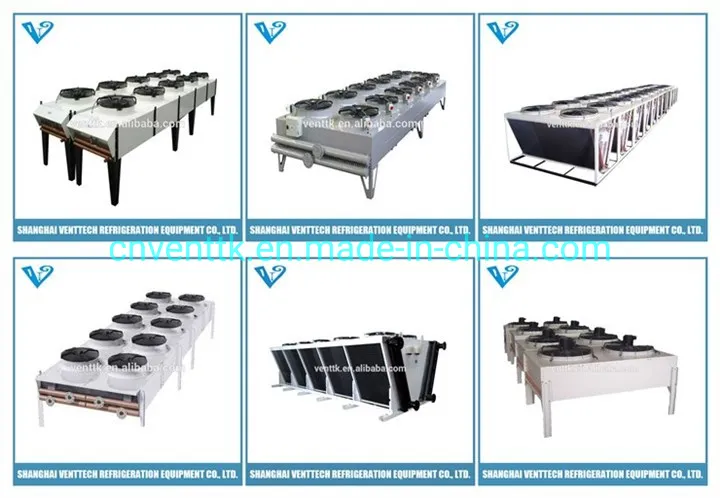

Can the dry coolers be customized to specific requirements?
Yes, we can manufacture outdoor dry coolers according to your specific technical drawings or provided samples.
What payment methods are accepted for orders?
Payments can be processed via T/T (Telegraphic Transfer), Western Union, or PayPal.
What kind of quality guarantee is provided?
We provide a one-year warranty starting from the B/L date. If any quality issues arise, we promise to replace the products.
What should I do if a specific product is not listed on the website?
You can provide descriptions and pictures of the products you need via email, and we will verify if custom manufacturing is possible.
Is it possible to order a single unit for quality testing?
Yes, we understand that quality testing is crucial for industrial projects and are happy to send 1 unit for evaluation.
What is the standard delivery time for container systems?
Standard delivery ranges from 30 working days for cabinet systems to 45 working days for full-scale hydro cooling containers.
