5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
1 / 5
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid
5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid

5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage off Grid

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
SY1563
Protection
Overvoltage
Application
Home Power Supply
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Decentralized
Lead Time
20 Work Days
Life Time
5 Years
Product Size
About 45*35*15cm
Voltage
51.2V
Capacity
100Ah
Cycle Life
3000 Cycles
HS Code
8504402000
★

Performance & Parameters

Parameter Details
Battery TypeLiFePO4/ Lithium Iron Phosphate Battery
Nominal Voltage51.2V
Rated Capacity100Ah

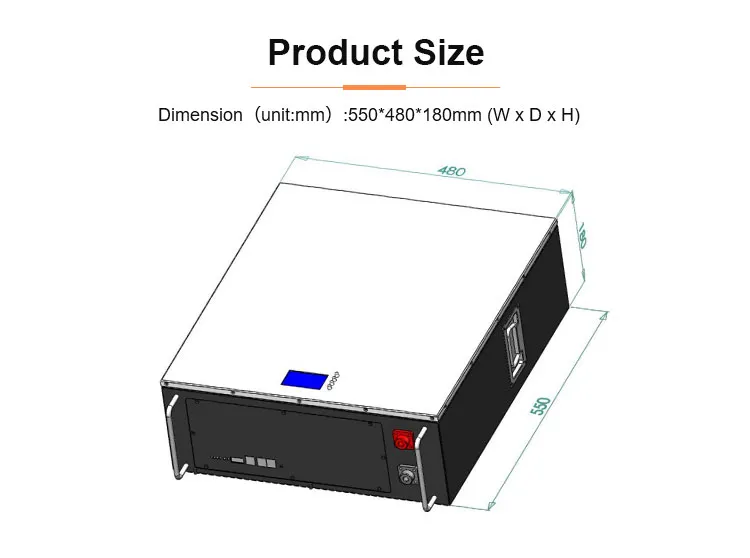

Battery Size550*480*180mm
Net Weight57kg
Gross Weight65kg
Case MaterialMetal
Rated Charging Current30A
Max Charging Current50A
Discharge Current50A
Pulse Current150A/3S
Charge Temperature0 ~ 45ºC
Working Temperature-10 ~ 60ºC
Communication PortCAN, RS485
📦

Packaging & Delivery

Package Size
54.00cm * 43.00cm * 39.00cm
Wooden Package Size
650*600*320mm
Gross Weight
46.50kg / 65.00kg
Transport Package
Transportation with Wooden Frame
🖼

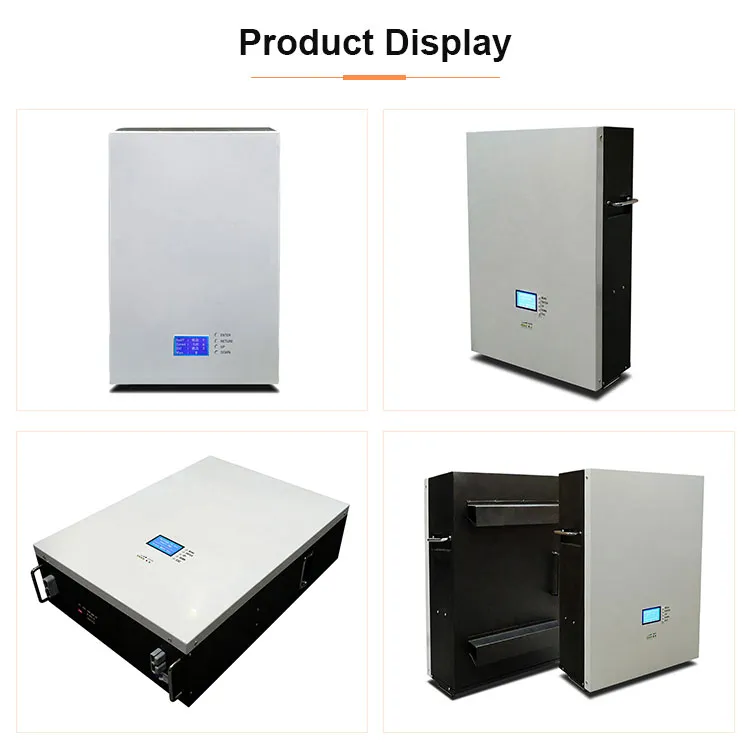

Product Display

Solar Energy Storage System 1
Solar Energy Storage System 2
Solar Energy Storage System 3
Solar Energy Storage System 4
Solar Energy Storage System 5
Solar Energy Storage System 6
Solar Energy Storage System 7
Solar Energy Storage System 8
?

Frequently Asked Questions

What is the battery type used in this system?
The system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) batteries, known for their safety and long cycle life.
How many cycles can I expect from this energy storage system?
This battery system is designed for a cycle life of 3000 cycles, providing reliable long-term energy storage.
What protection functions are built into the system?
The system features an integrated Smart BMS that provides protection against overvoltage, low voltage, overtemperature, overload, and output short circuits.
Can multiple battery packs be used in parallel?
Yes, the system supports parallel connection of up to 3 units, provided the voltage difference between packs is ≤0.5V.
What communication interfaces are available?
The system is equipped with CAN and RS485 communication ports for seamless integration and monitoring.
What is the recommended operating temperature range?
The charging temperature should be between 0 ~ 45ºC, while the working environment temperature range is -10 ~ 60ºC.
