OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

1 / 5

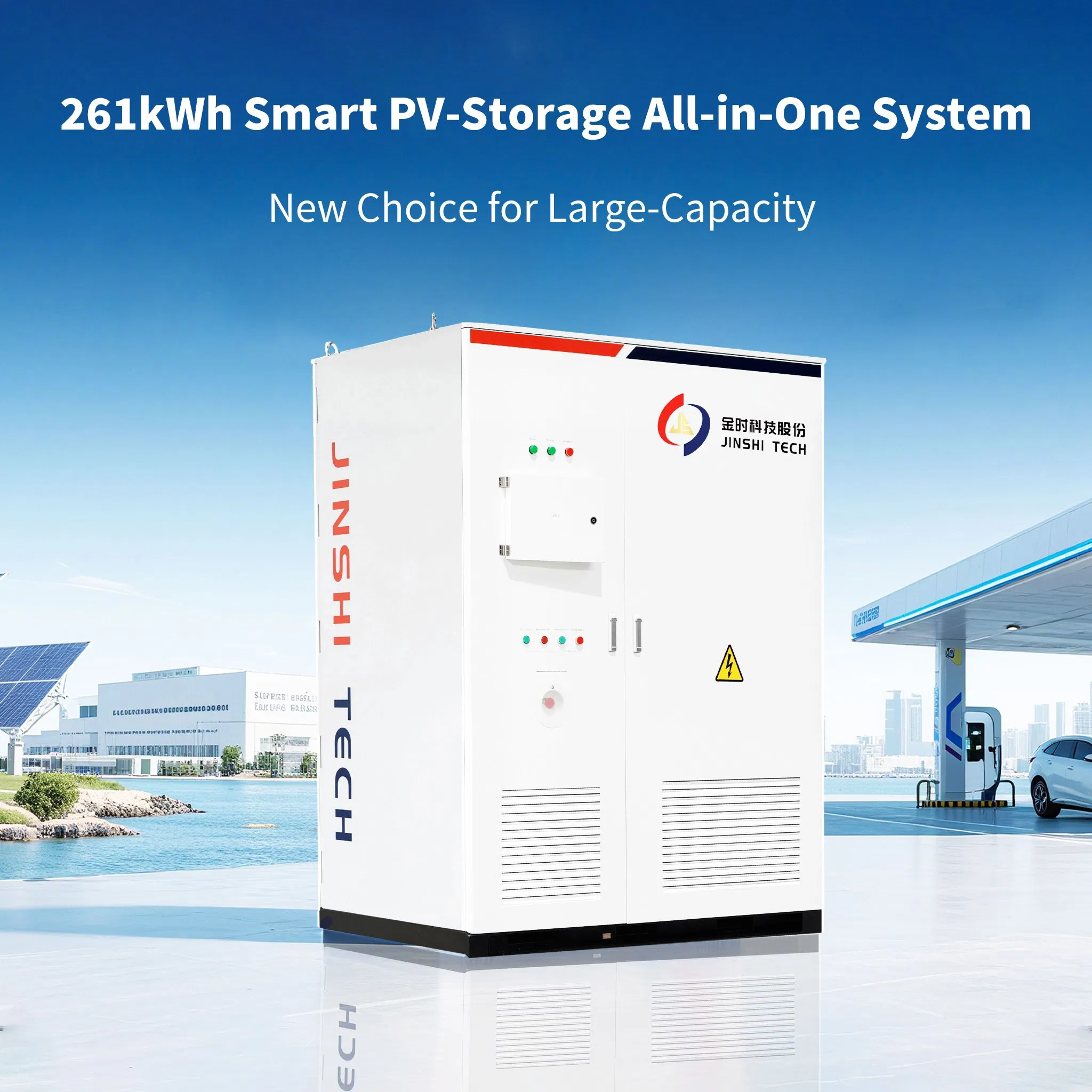

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Customization:	Available
Nominal Voltage:	832V
Warranty:	2 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

Smart PV-ESS All-in-One Unit-a-A

Nominal Capacity

314Ah

Cycle Life

6000 Cycles

Rated Power

125kW

Overload Capacity

110% Long-Term

Max PV Power

125kW

MPPT Voltage Range

438-900V

Battery Type

3.2V/314Ah/LFP

Rated Voltage

832V

Battery Energy

261kWh

Cooling System

Intelligent Liquid Cooling

Protection Level

IP54

Fire Protection

Perfluorohexane/Aerosol

HS Code

8537109090

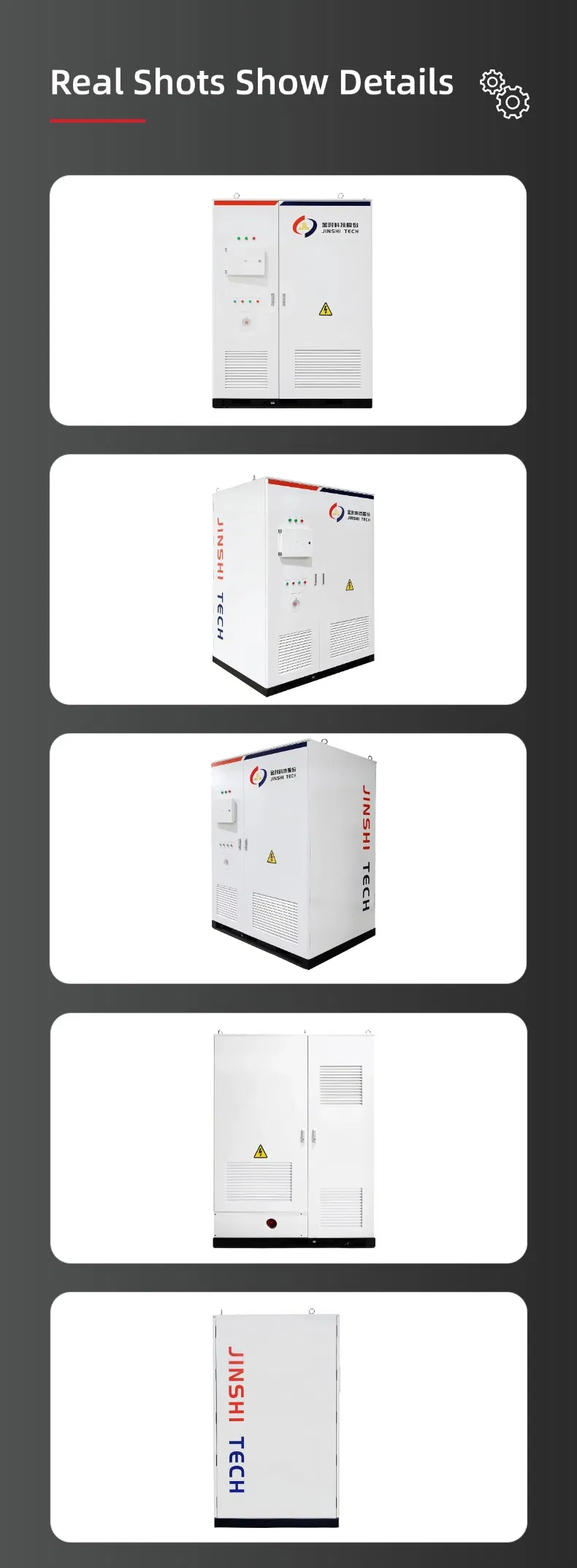

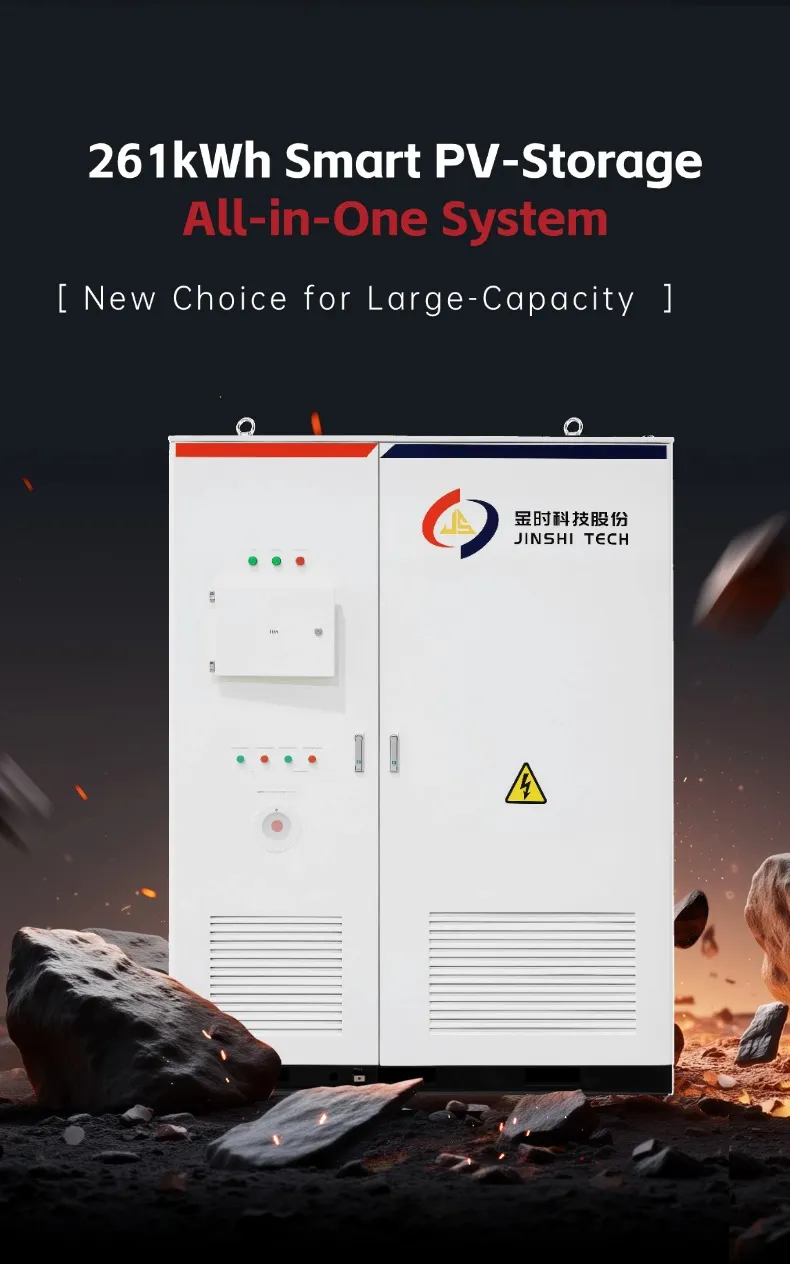

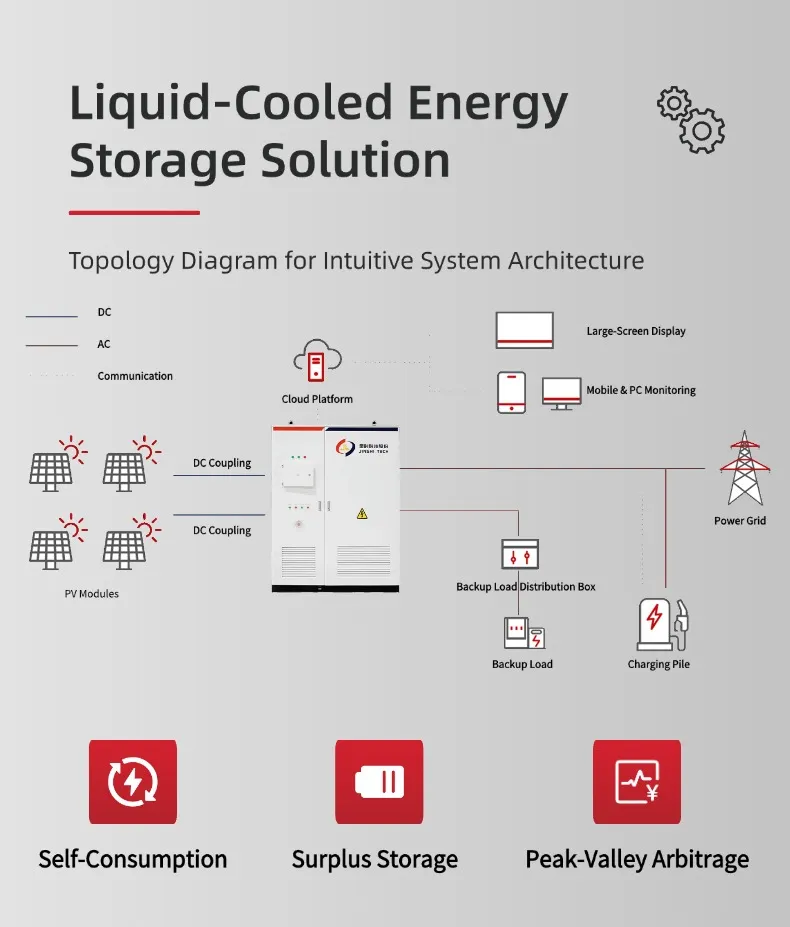

Product Visualization

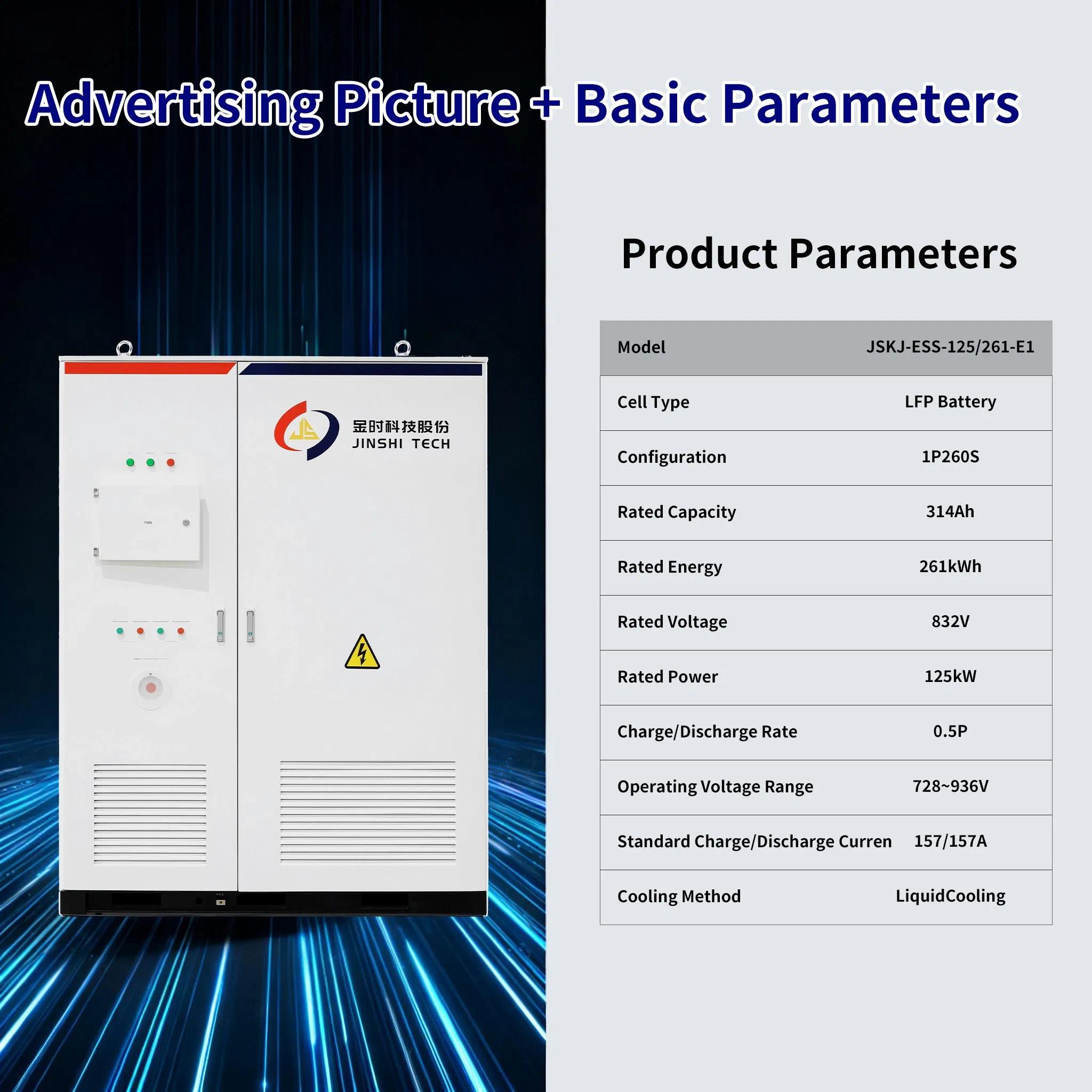

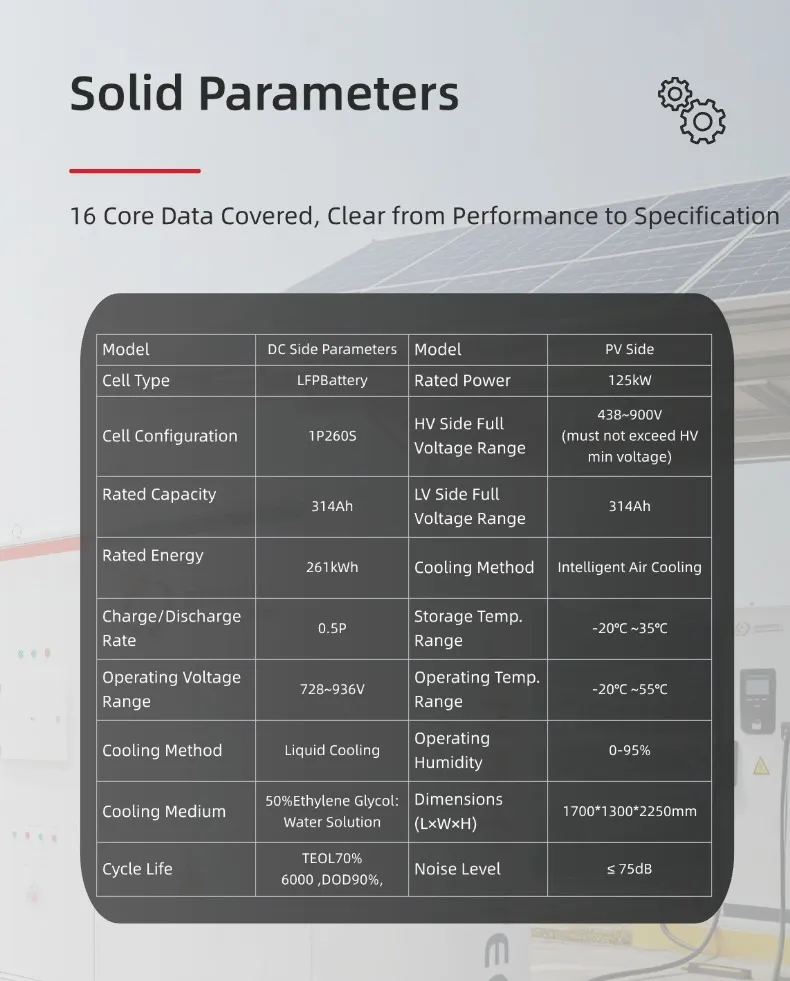

Technical Parameters

Product Parameter Detailed View
Cell Type	LFP Battery
Configuration	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Charge/Discharge Rate	0.5P
Operating Voltage Range	728~936V
Standard Charge/Discharge Current	157/157A
Cooling Method	Liquid Cooling
Maximum Efficiency	99%

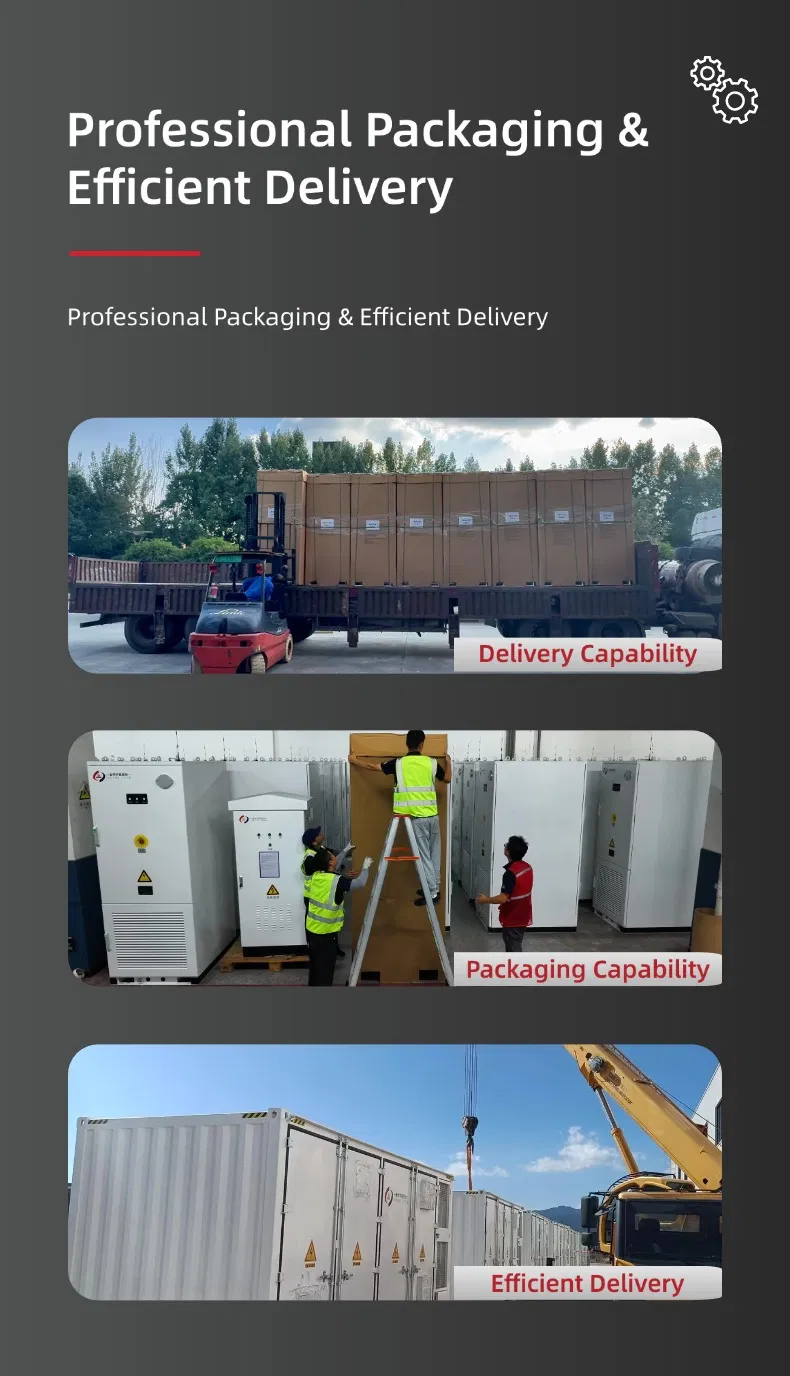

Packaging & Logistics

Package Size

170.00cm * 130.00cm * 225.00cm

Package Gross Weight

3000.000kg

Transport Package

Standard Packaging or Customized

Frequently Asked Questions

What is the cycle life of the Smart PV-ESS All-in-One Unit?

The system features a high-performance LFP battery with a cycle life of up to 6000 cycles.

What type of cooling system does the unit use?

It utilizes an Intelligent Liquid Cooling system to ensure optimal thermal management and high efficiency.

Can this unit be installed outdoors?

Yes, the unit is designed with an IP54 protection level, making it suitable for outdoor cabinet installations.

What are the fire protection options available?

The system comes with Perfluorohexane or Aerosol fire protection systems as optional safety features.

What is the maximum charging and discharging rate?

The unit supports a maximum charge and discharge rate of 0.5P, ensuring stable energy throughput.

What is the total nominal energy capacity of the battery?

The battery has a nominal capacity of 261kWh with a rated voltage of 832V.
