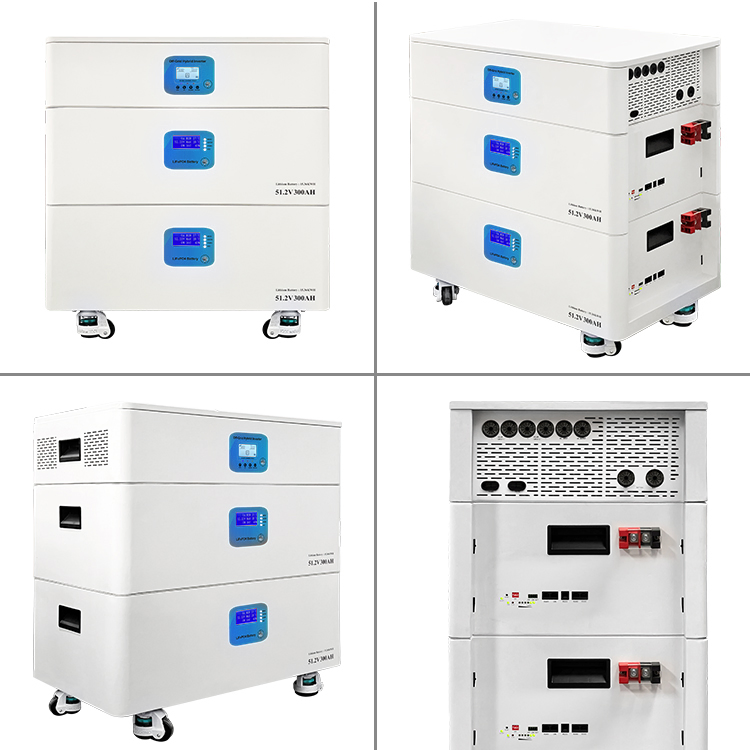

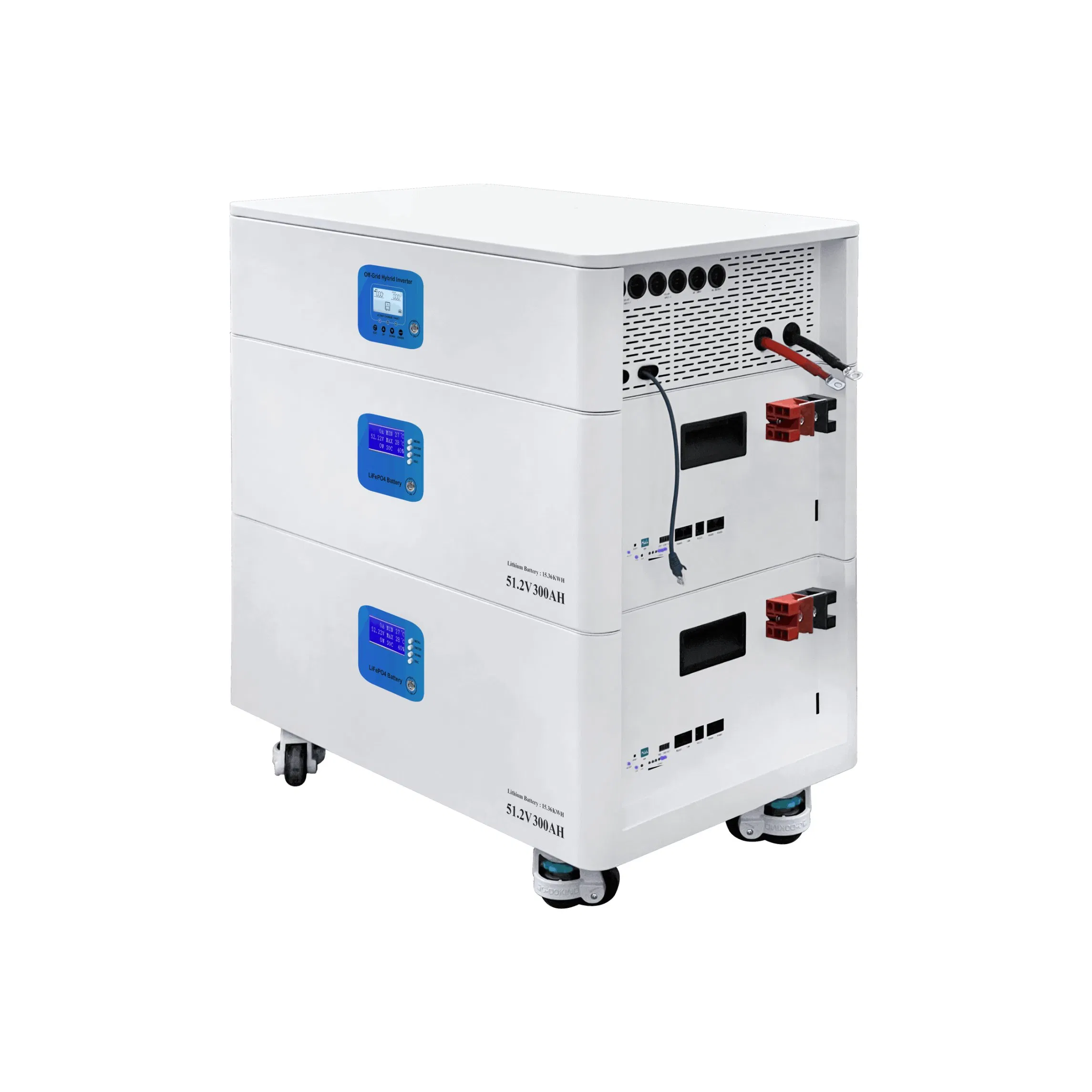

off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
1 / 5
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System
off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System

off Grid Energy Storage System 3.6kw Wheel Solar Inverter 3.8kwh Lithium Battery Integrated Household Energy Storage System

Customization: Available
Weight: 61.5kg
Warranty: 5 Years
Send Inquiry

Product Description

📊
Basic Information
Model NO.
All 3.6KW
Cycle Life
6000
Nominal Capacity
3.84kwh
Rated Voltage
25.6V
Type of Battery
LiFePO4
Communication
RS485, Can, RS232
Battery Energy
3840wh
Protection Grade
IP22
Power
3.6kVA / 3.6kw
Output Waveform
Pure Sine Wave
📦
Packaging & Delivery
Package Size
46.00cm * 43.00cm * 19.00cm
Gross Weight
61.500kg
📝
Specifications
Parameter Details (AII 3.6KW)
Maximum Photovoltaic Input Power3.6KW
Two AC OutputsYes
Maximum AC Total Output Power3.6KVA / 3.6KW
Lithium-ion CommunicationYes
Lithium Battery ActivationYes (Photovoltaic or Mains)
Input Data
Rated Voltage230VAC
Voltage Range170-280VAC (Computer); 90-280VAC (Appliances)
Frequency50/60 Hz (Auto Detection)
Output Data
Instantaneous Power5400VA
Peak Efficiency (PV to INV)96%
Output WaveformPure Sine Wave
Charging Data
Charge ModeMPPT
MPPT Voltage Range60VDC-500VDC
Max. Charging Current100A
🖼️
Product Visuals

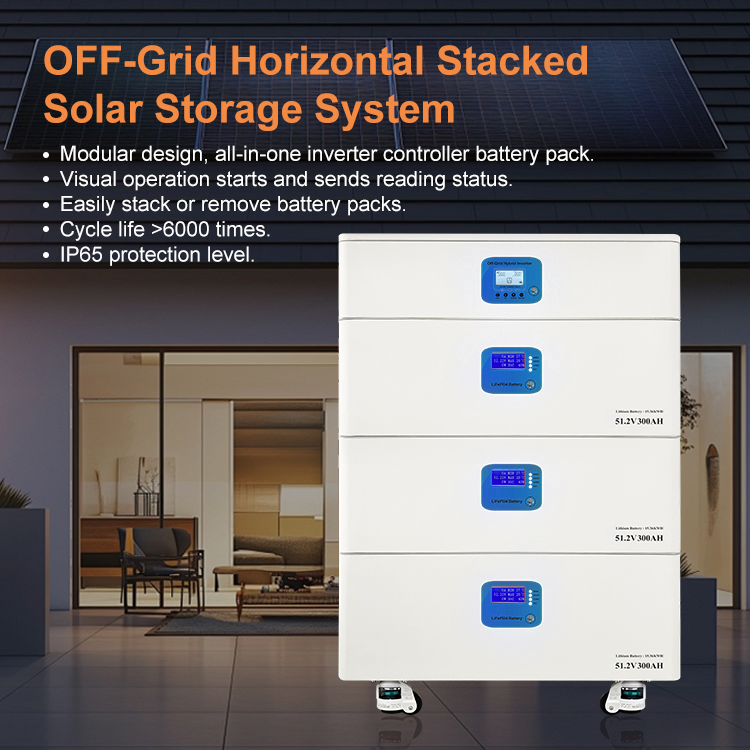

Energy Storage System Overview

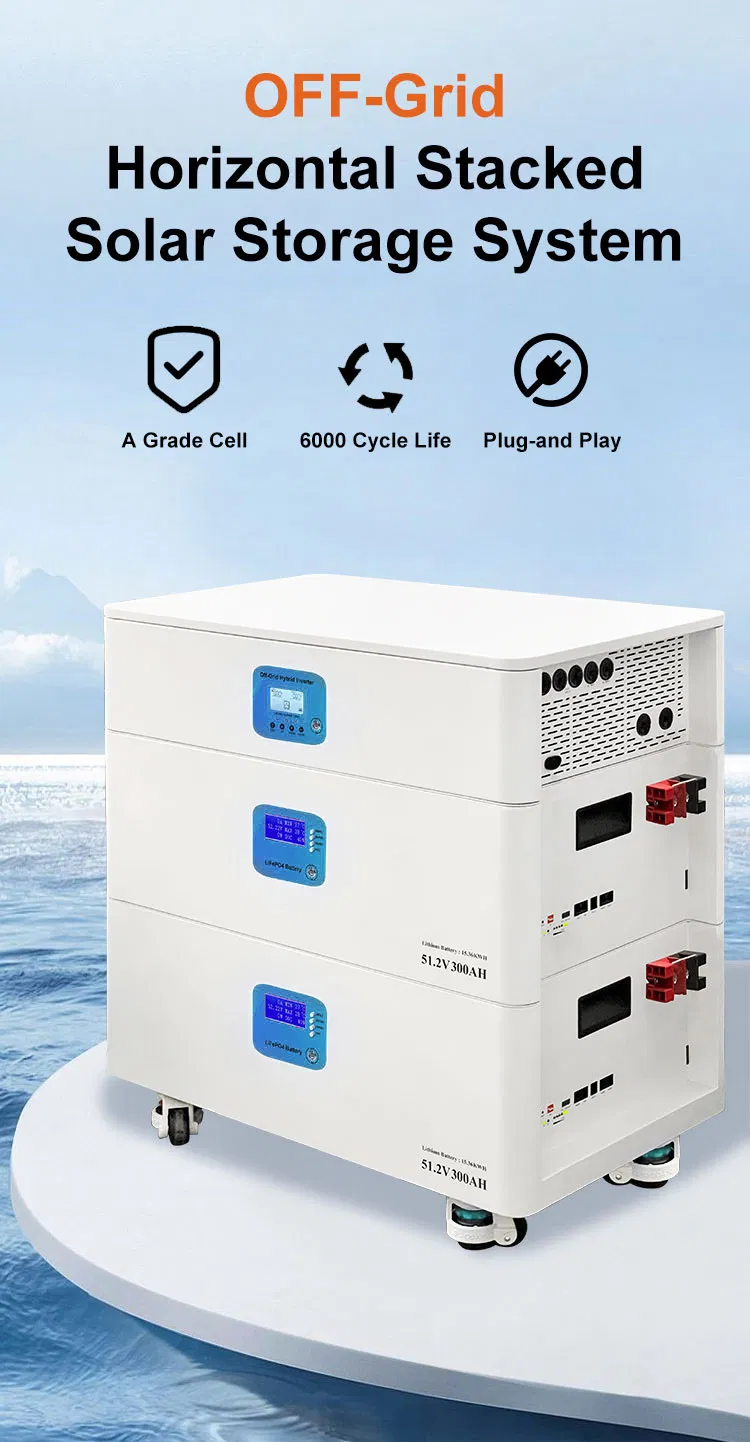

Inverter Battery Integrated System

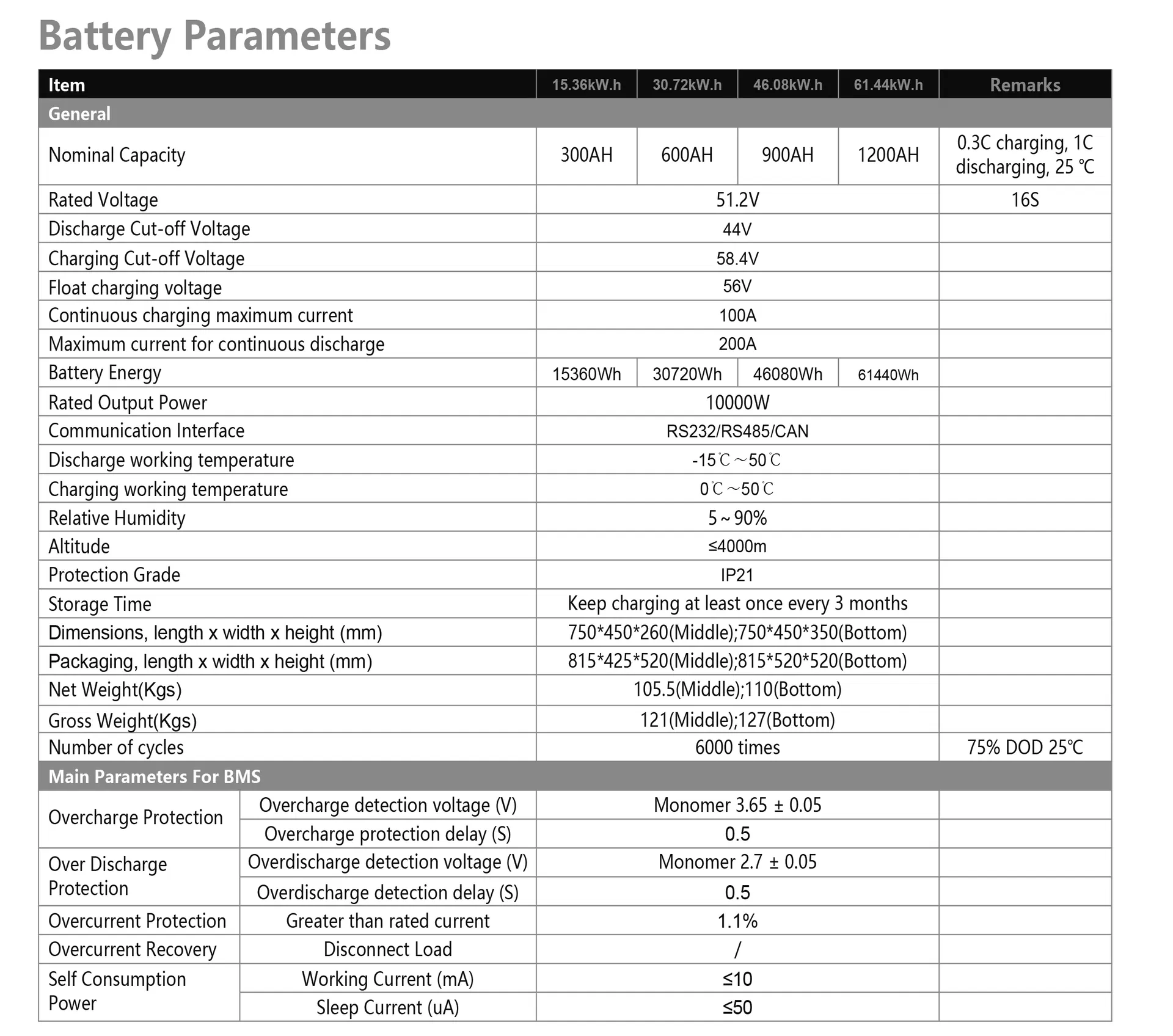

System Dimensions
Feature 1
Feature 2

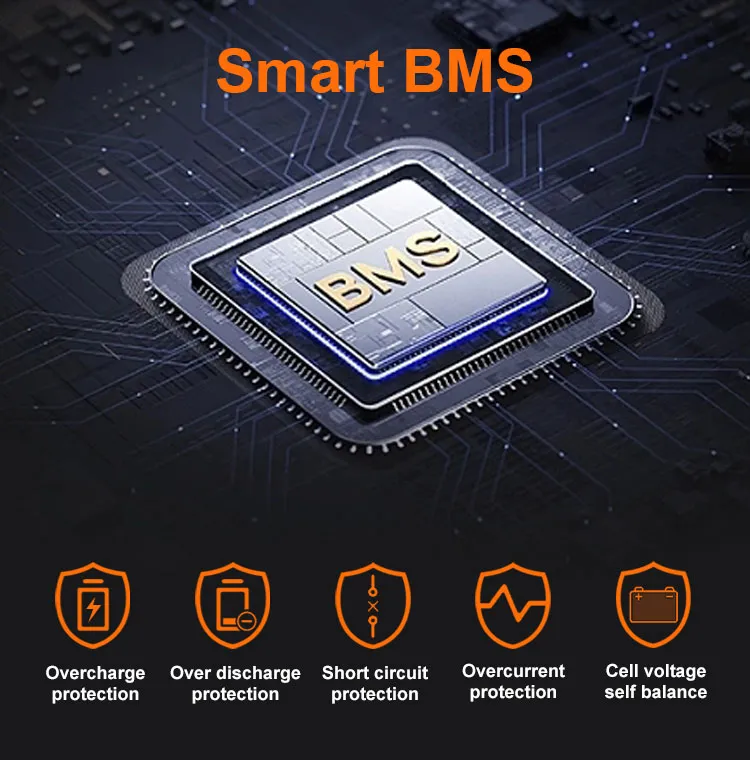

Feature 3

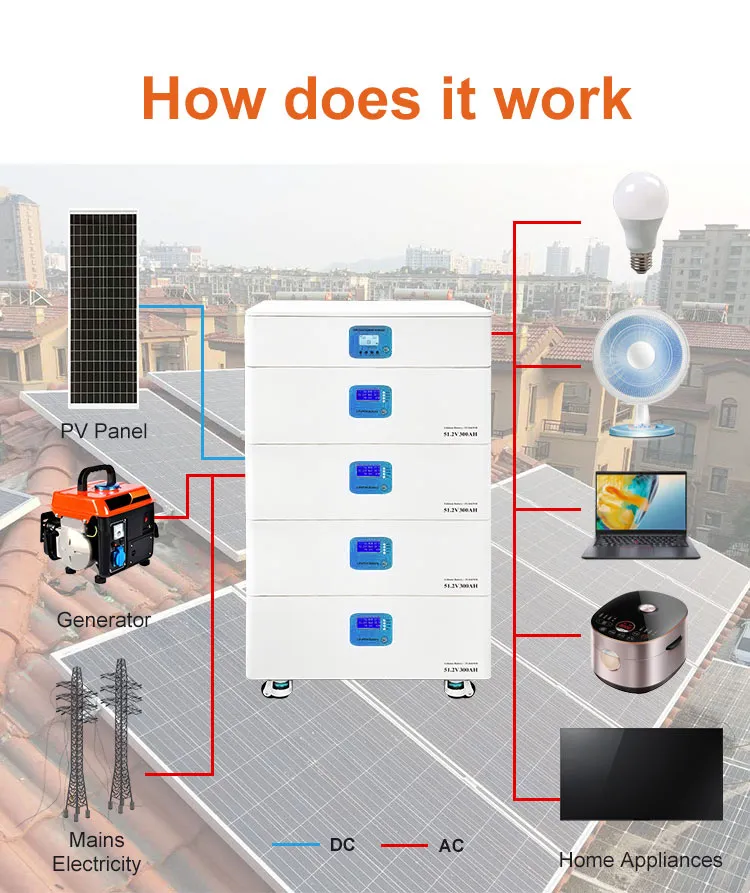

Feature 4

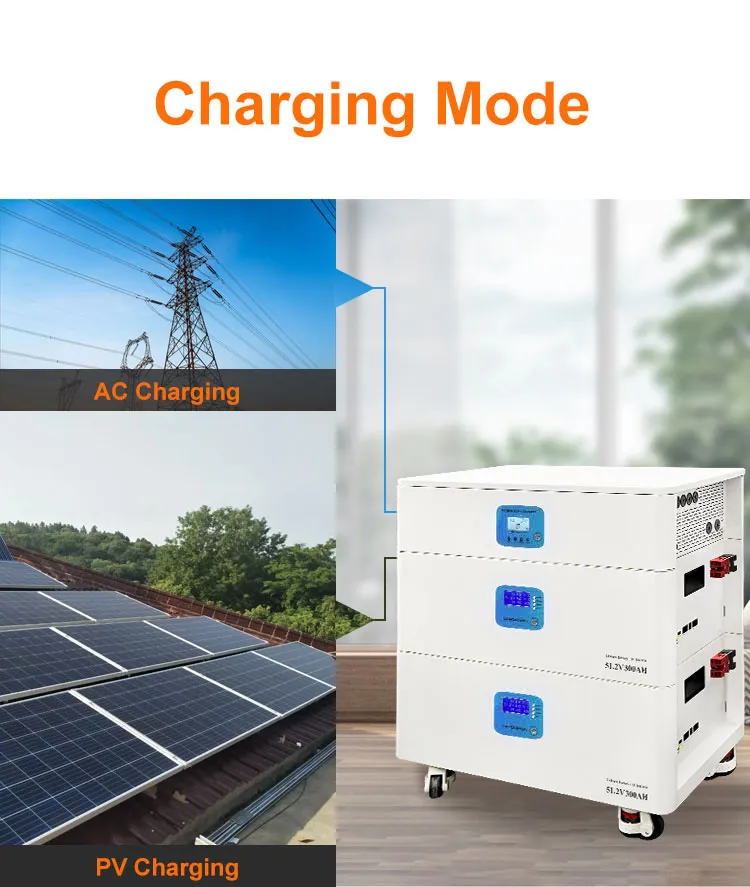

Feature 5

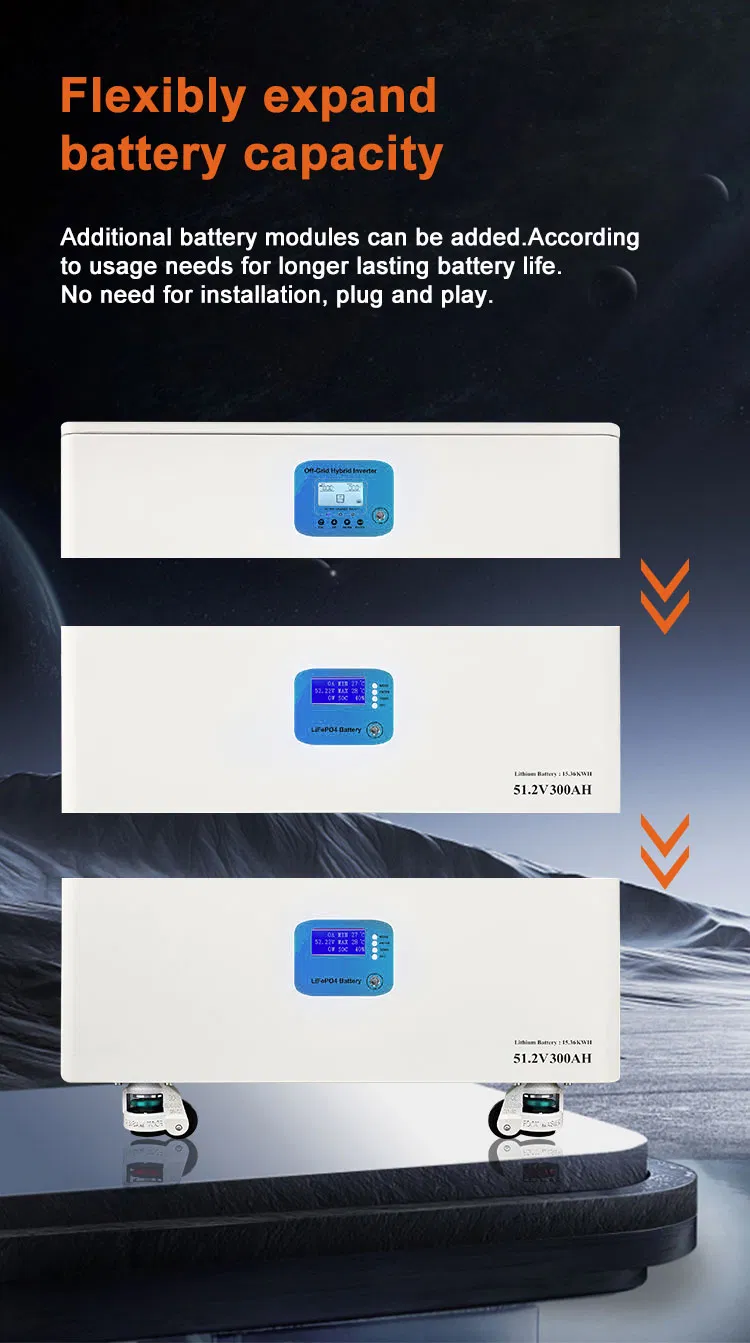

Technical Specs

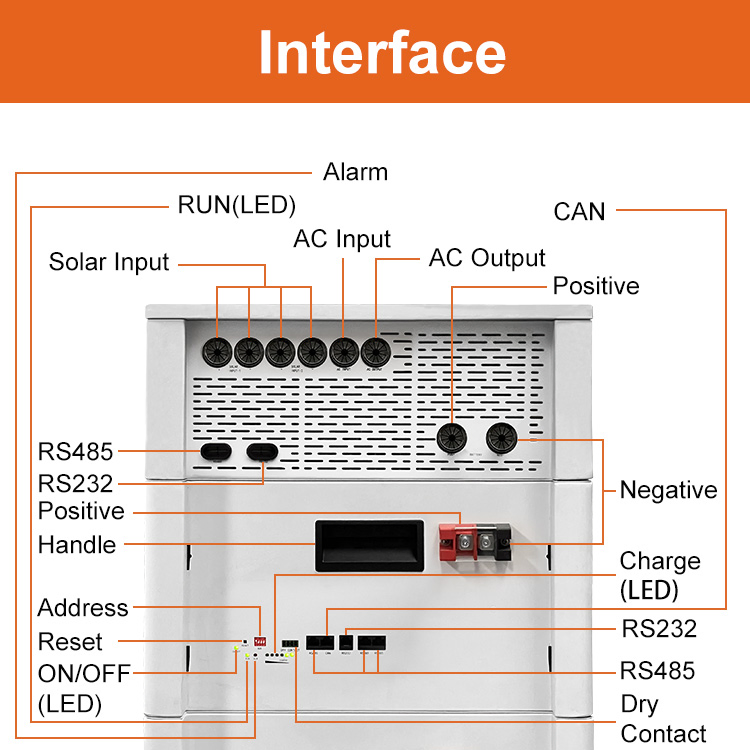

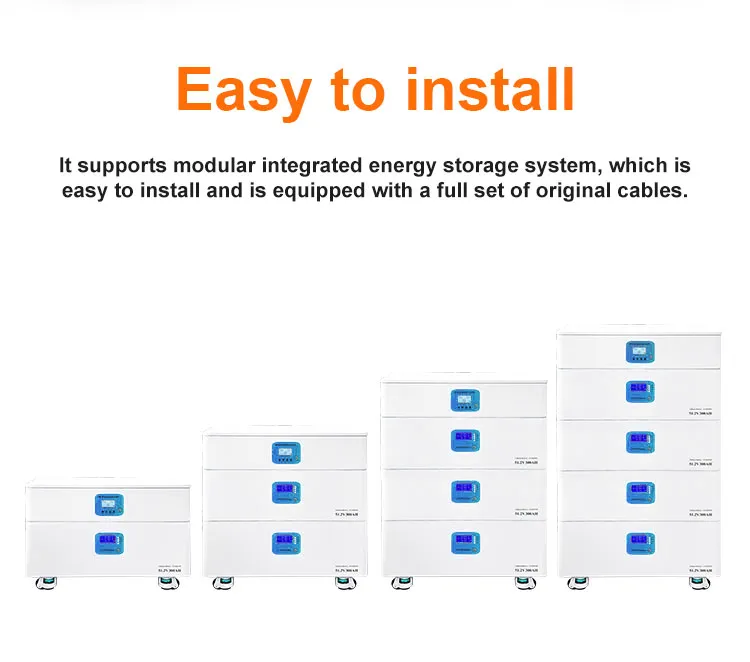

Interface Details

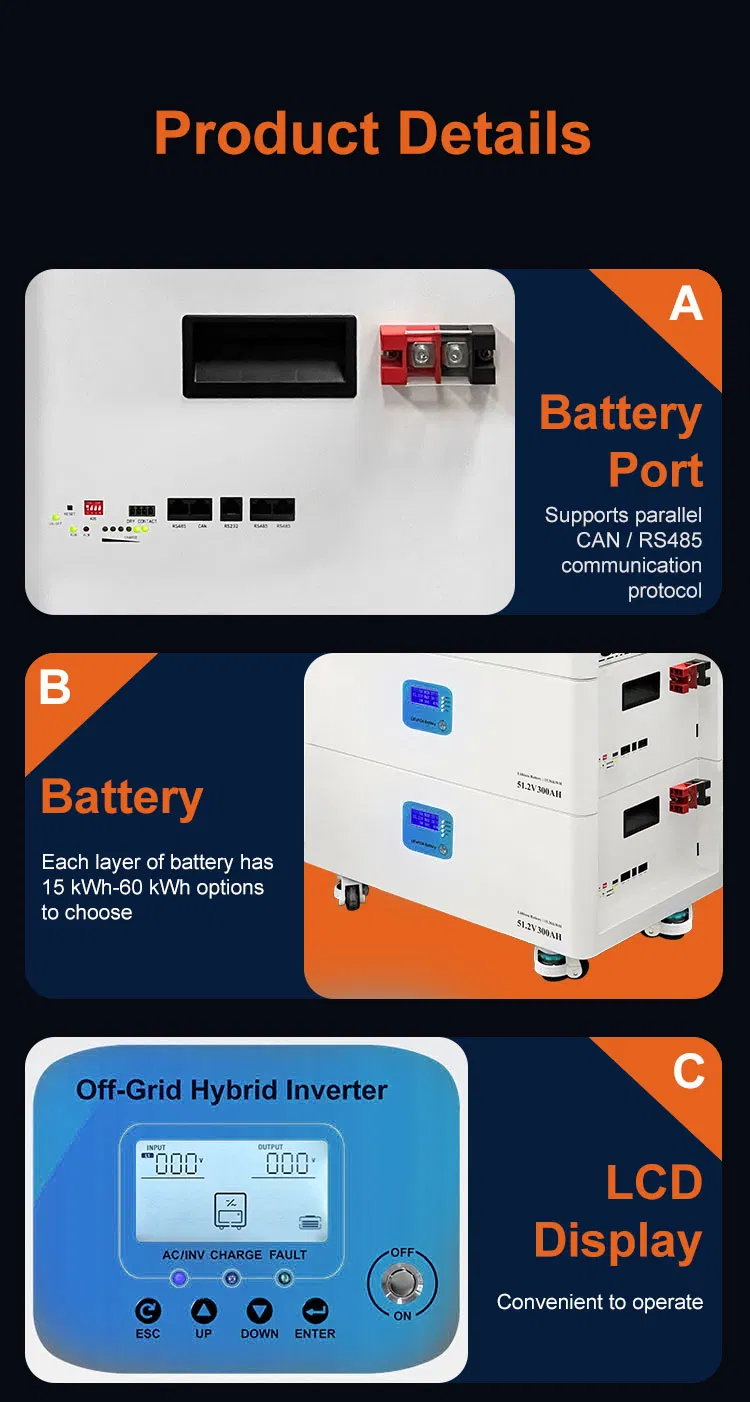

Application Scenario 1

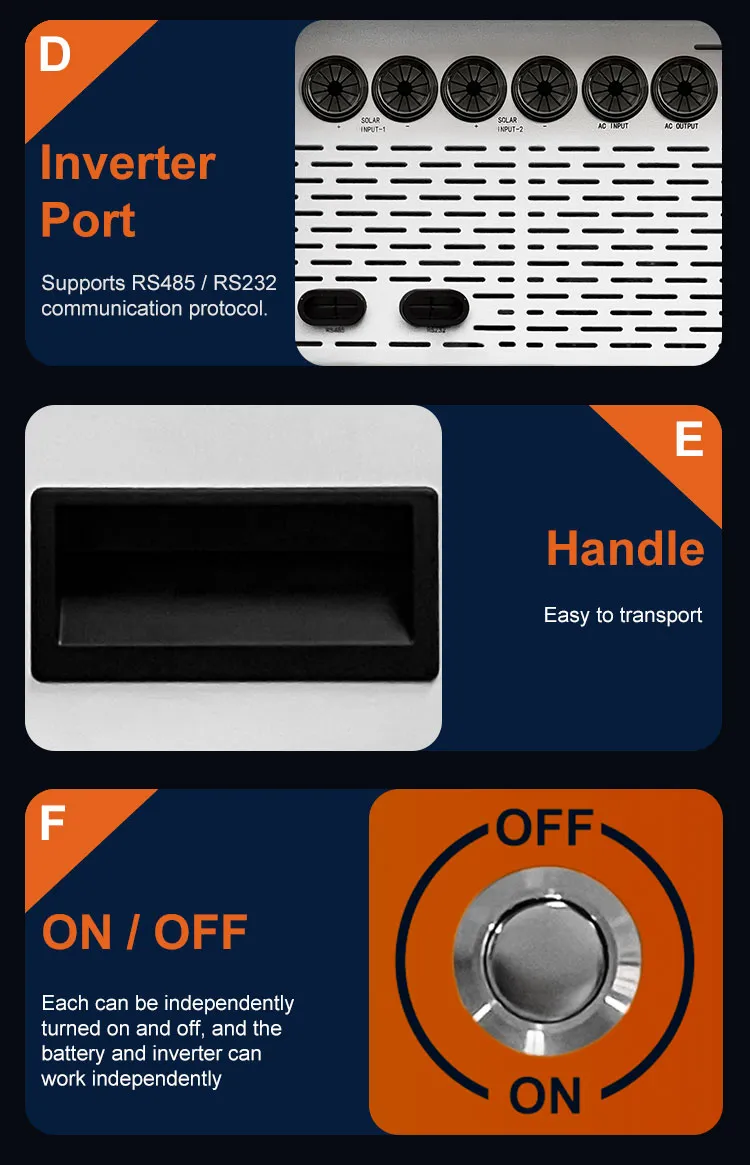

Application Scenario 2
Safety Features
🏢
Production Capability
Factory Environment
Quality Control
❓
Frequently Asked Questions
Why should you choose us?
We have more than 20 years of experience in the electrical equipment industry with professional sales and R&D teams, providing qualified products at competitive prices and timely delivery.
Can I have a sample order?
Yes, we welcome sample orders to test and check the quality of our energy storage systems.
What is your Minimum Order Quantity (MOQ)?
The MOQ depends on the specific products. Some items do not have an MOQ, and 1 piece is available for order.
Do you support OEM/ODM services?
Yes. Please inform us formally before production and confirm the design based on our sample requirements.
What customized options are available?
We provide customized options for technical specifications and professional 24-hour engineer after-sales service to meet your specific needs.
What are your technical strengths?
Our products are rigorously selected for high quality, having received multiple national-level certifications for brand influence and quality excellence.
