Customization: Available

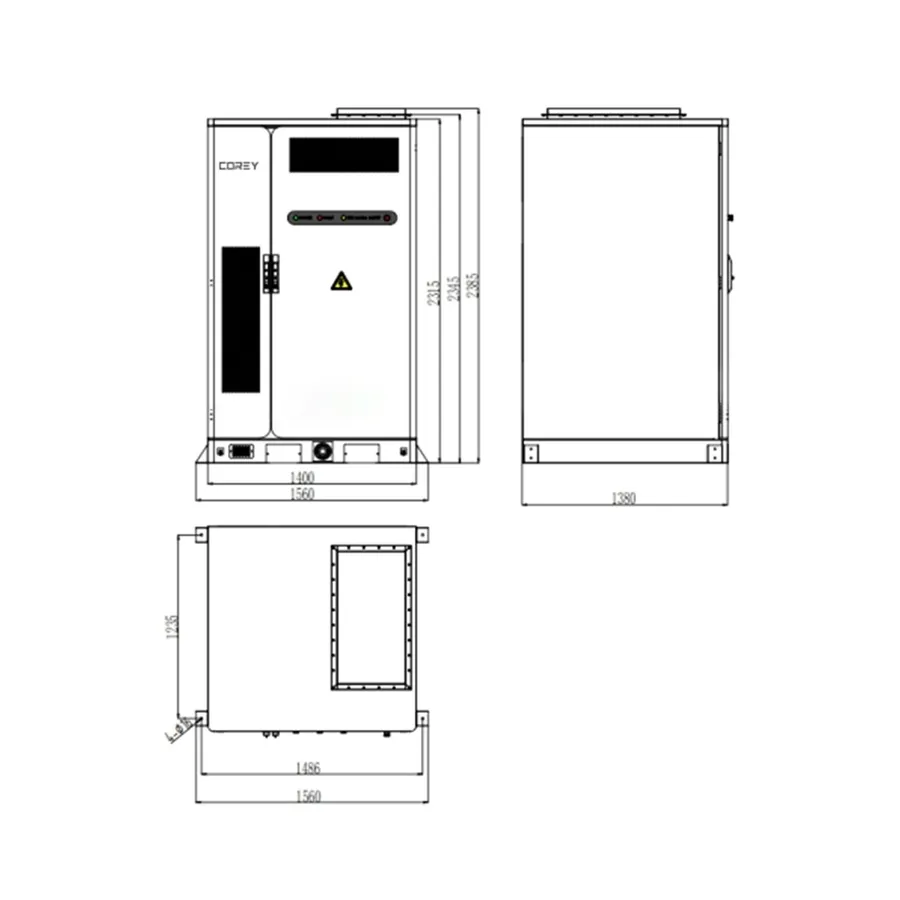

Container Size: L1560mm*D1380mm*H2385mm
Weight: 2800kg+-50kg
Send Inquiry

Product Description

📊

Basic Information

Model NO.
COREY 233 CE
Nominal Voltage
105kw
Warranty
5 Year
Nominal Capacity
233kWh
Cycle Life
9000
Product Name
Industrial Commercial Energy Storage System
Battery Cell
LFP(LiFePO4)3.2V 280ah
System Capacity
233kwh
Cooling Method
Intelligent Liquid Cooling
Protection Level
IP54 / C4
⚡

Product Description

Energy Storage System Overview

INDUSTRIAL COMMERCIAL ENERGY STORAGE SYSTEM

The industrial and commercial energy storage cabinets use an integrated design with high flexibility. This ensures that operations can easily expand storage capacity to meet growing electricity demands or adapt to operational shifts.

  • ✅ Safe & Reliable: C4 anti-corrosion, IP54 protection, and multi-stage fire suppression.
  • ✅ Intelligent Management: Advanced BMS to significantly extend battery life cycle.
  • ✅ Versatile Application: Ideal for factories, commercial buildings, and remote areas with power shortages.
📋

Technical Parameters

System Specifications Electrical Parameters
Battery TypeLFP (LiFePO4) 280Ah Rated AC Voltage230V/400V (±15%)
System Capacity233kWh Rated Frequency50/60 Hz
Rated Power105kW Max Current167A
Cooling MethodLiquid Cooling Power Factor≥0.99
Fire SuppressionAerosol + Water Protection Switching Time<20ms (Optional)
Operating Temp-20°C to 50°C CommunicationCAN/RS485/Ethernet/4G
ProtectionIP54 / C4 CertificationsCE, UN38.3, EN62619, VDE
📸

Detailed Features

🌟 Strong Flexibility: Modular design adapts to various power requirements and supports seamless equipment expansion.

🌟 Intelligent Management: Equipped with an EMS for power dispatching, load optimization, and remote monitoring.

🌟 Economic Efficiency: Optimizes peak-to-valley electricity price differences to reduce corporate energy expenses.

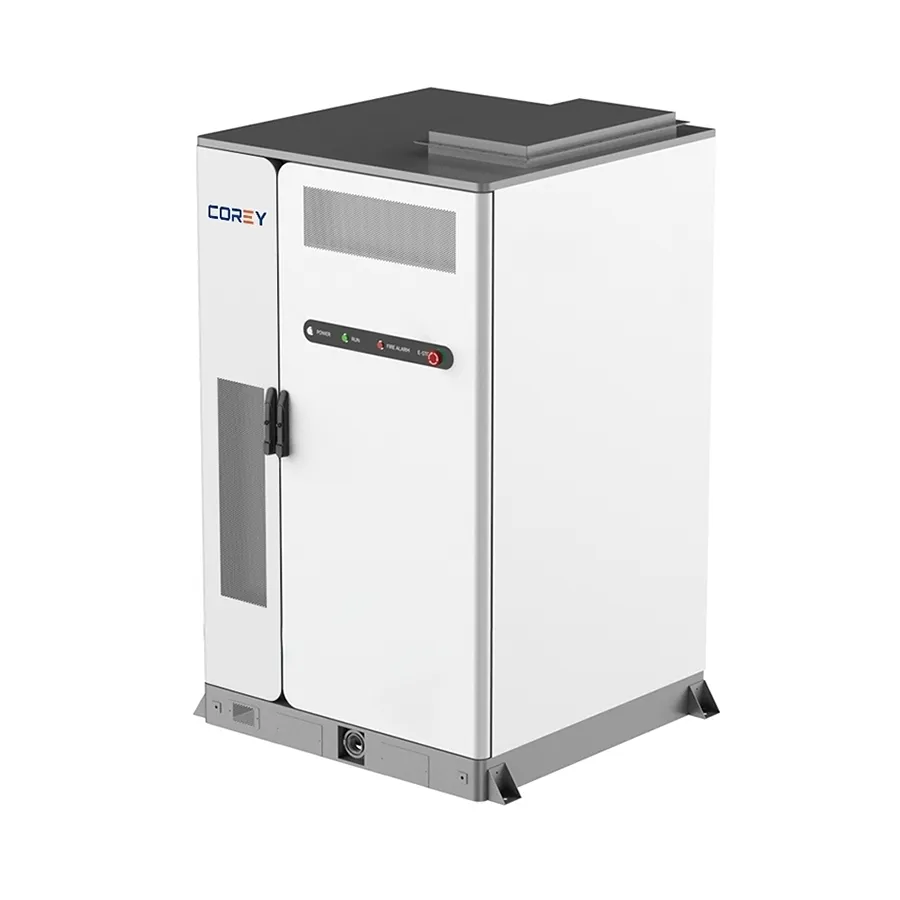

Feature 1

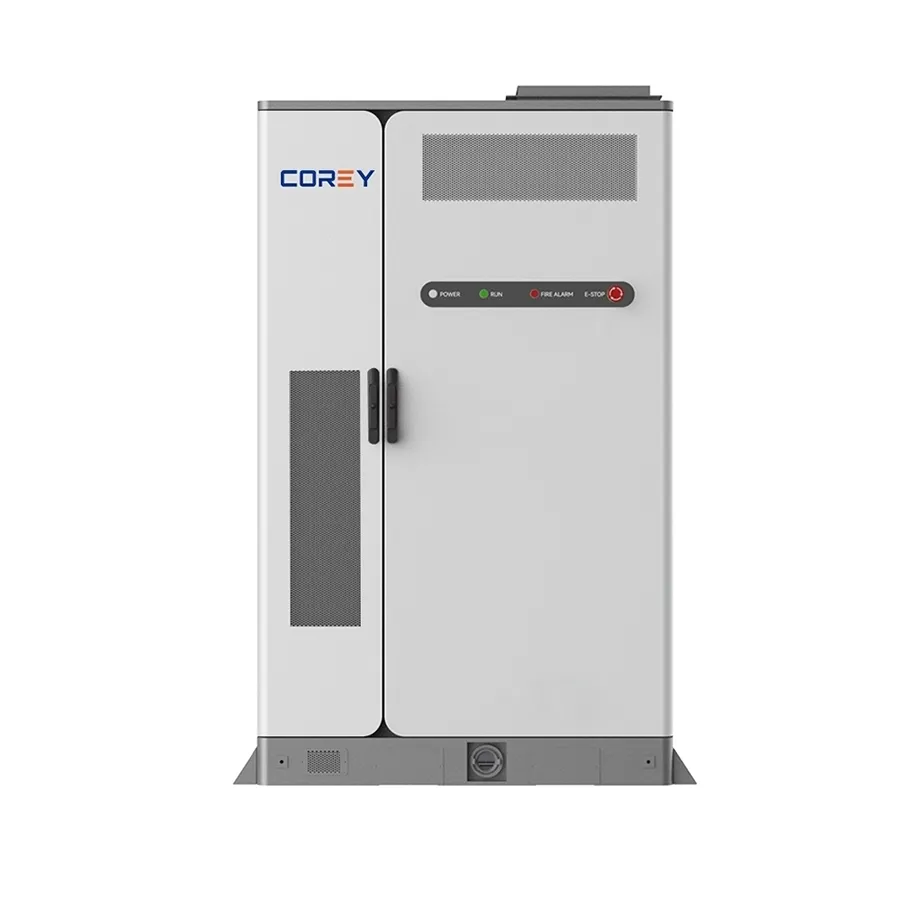

Feature 2

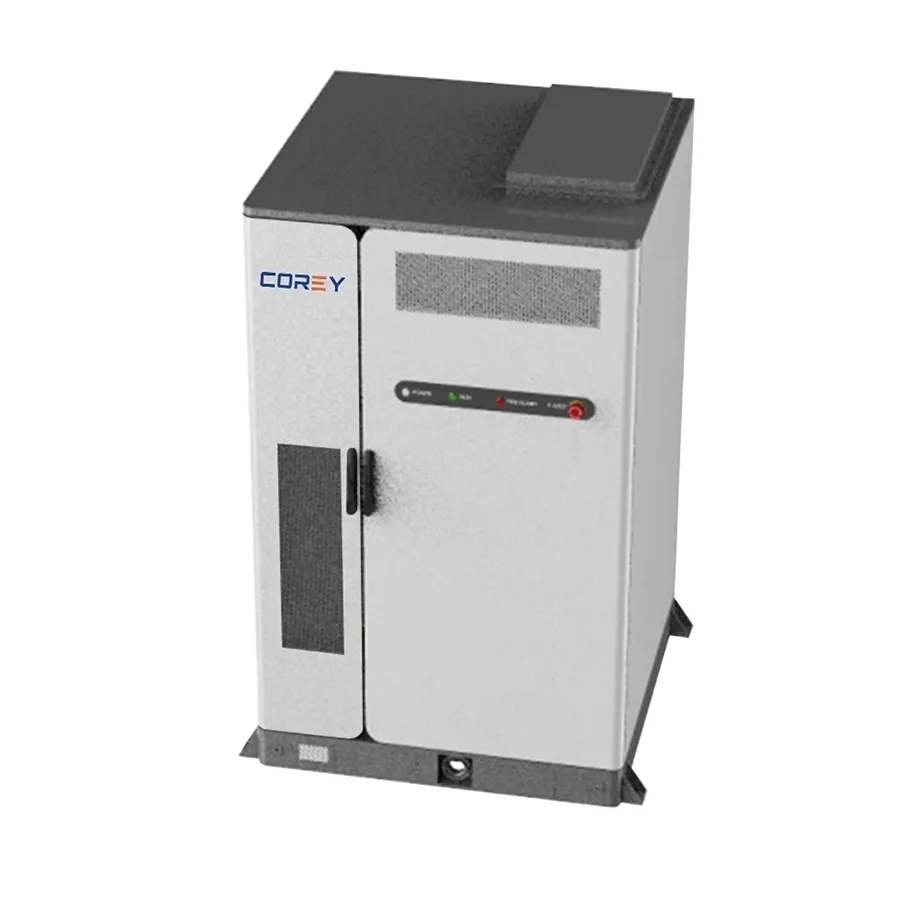

Feature 3

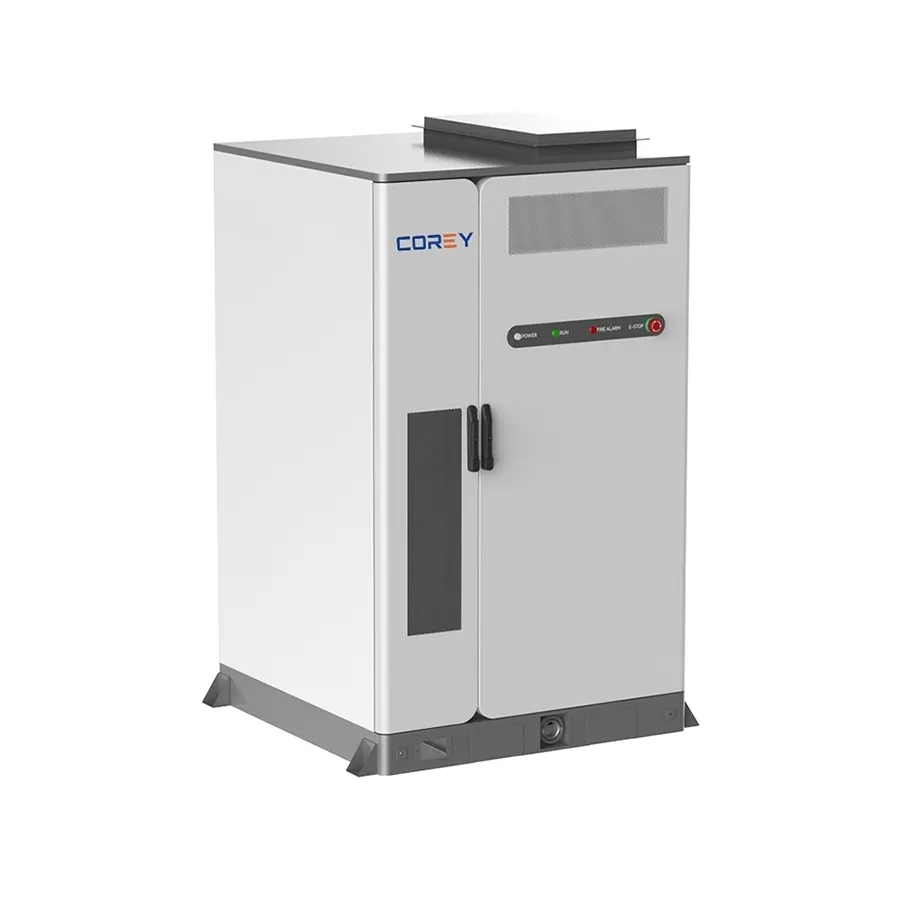

Interior 1
Interior 2
Interior 3
Detail 1
Detail 2
System 1
System 2
System 3
❓

Frequently Asked Questions

What is the expected cycle life of this energy storage system?
This system features a high-performance LFP battery with a cycle life of up to 9,000 cycles, ensuring long-term reliability and cost-effectiveness.
Is the system suitable for harsh outdoor environments?
Yes, the cabinet is designed with IP54 protection and C4 anti-corrosion levels, making it suitable for industrial environments and outdoor installations.
How does the cooling system work?
The system utilizes an Intelligent Liquid Cooling method, which provides more uniform temperature control compared to air cooling, enhancing battery safety and lifespan.
Does the system support grid-connected and off-grid switching?
Yes, the system supports automatic switching between grid-connected and off-grid modes with an optional switching time of less than 20ms.
What fire safety features are included?
Safety is a priority. The system includes multi-level fire protection, including aerosol suppression at the pack and cluster levels, plus cabinet-level water fire protection.
Can the product be customized for specific requirements?
We support on-demand customization, including capacity scaling, color options, appearance size, and logo placement to fit your specific industrial needs.
