Design of Integrated Container Type Energy Storage System for Industry and Commerce 372kwh Three-Phase off Grid Solar Hybrid Energy Storage System

Customization: Available
Container Size: 2700*2900*1900mm
Weight: 4.5t

Product Description

📋 Basic Information
Model NO.
PLPF0280C0-1331R2A
Nominal Voltage
1331.2V
Nominal Capacity
373kWh
Battery Type
302V/280ah
Rated Output Power
2200kVA
Rated Grid Voltage
690V
Operating Temperature
-30℃— 60℃
Specification
2300*2500*1400mm

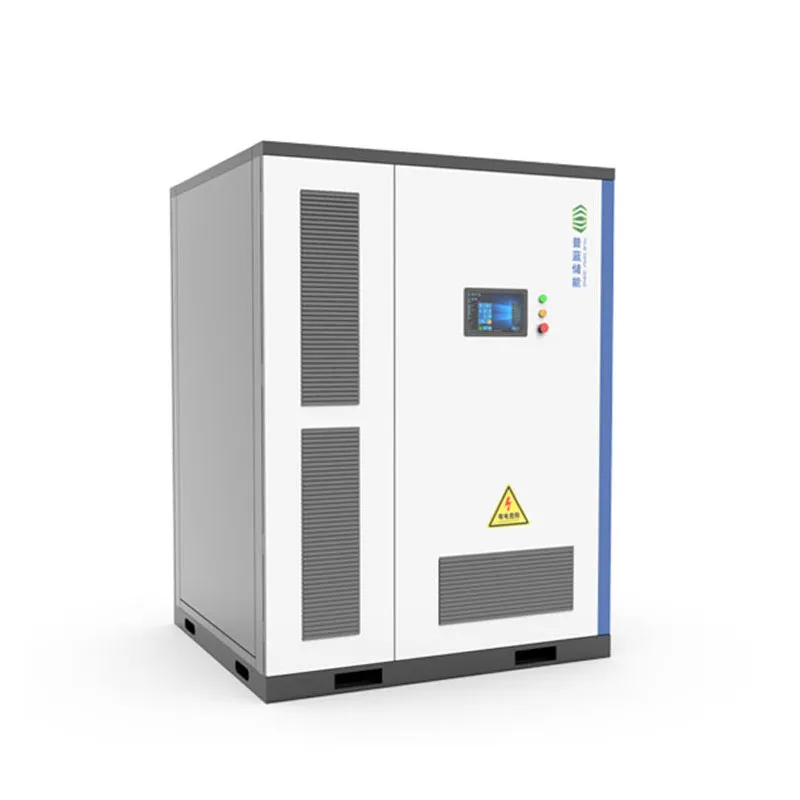

🖼️ Product Overview
📊 Technical Parameters
Battery System Parameters
Product modelPLPF0280C0-1331R2A
Battery parameter1p416s

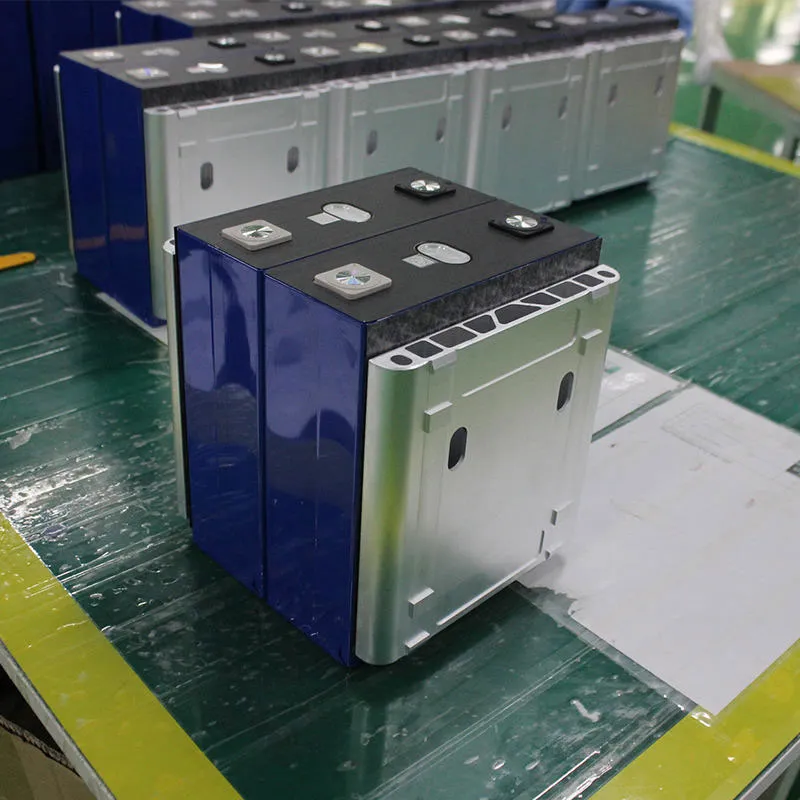

Cell type3.2V/280Ah
Cell life≥6000 @ 100%DOD, 80%EOL
Rated battery capacity373kWh
AC Parameters
Rated output power110kW
AC output current184A
Rated grid voltage690V
Grid voltage range±15%
Rated grid frequency50Hz/60Hz
Grid connected power factor-1(leading)~1(lagging)
Current harmonics THDI≤3% (at rated power)
System Configuration
Dimensions (W x H x D)2300 x 2500 x 1400 mm
Operating temperature-30℃ ~ 60ºC (>40ºC derating)
Cooling methodAir / Liquid Cooled
Fire extinguishing systemAerosol / Perfluorocopper (optional)
Communication protocolModBus-TCP / ModBus-RTU / IEC104

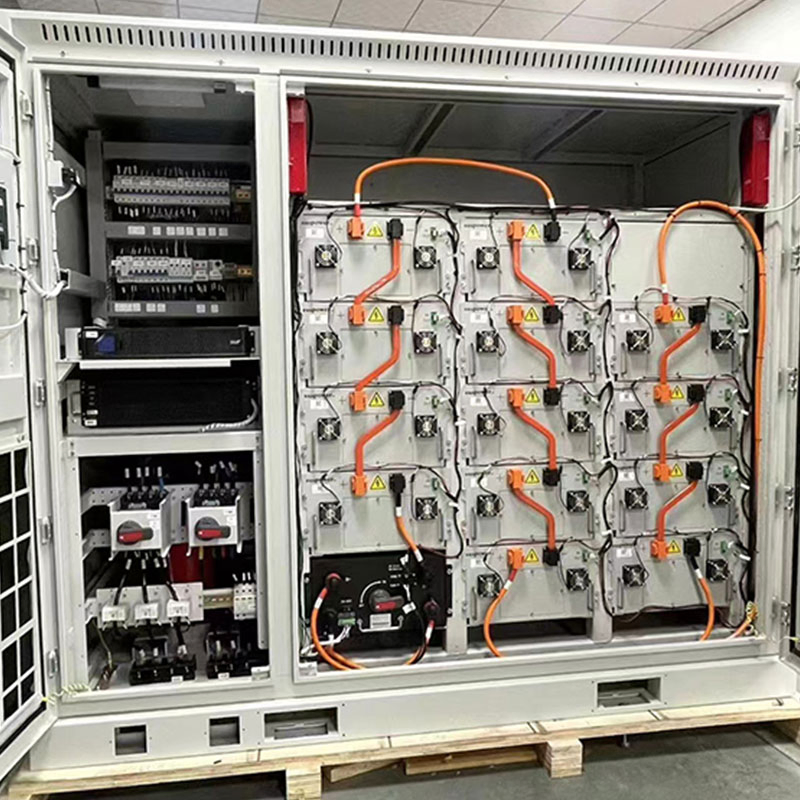

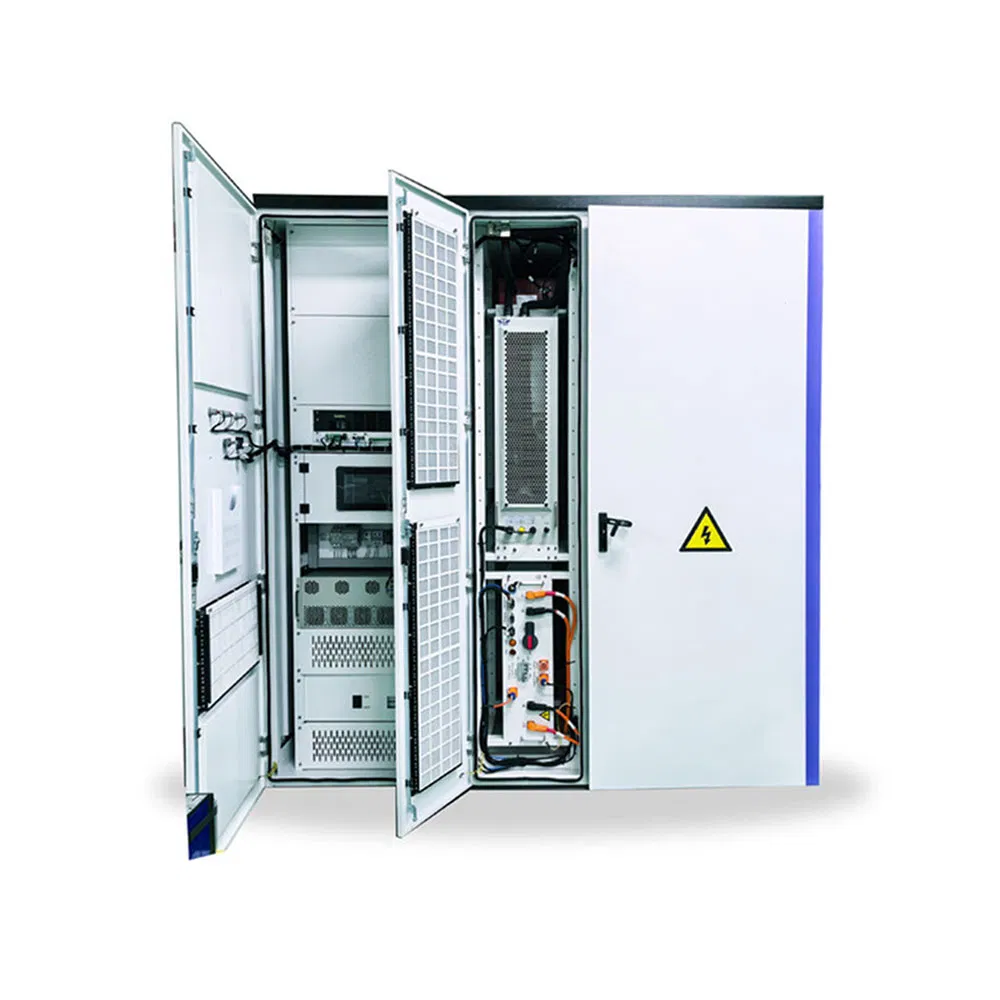

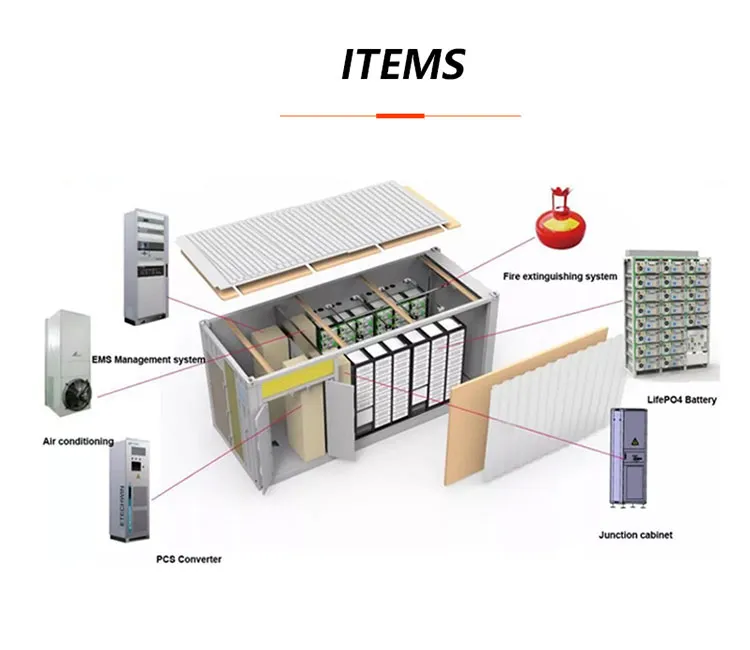

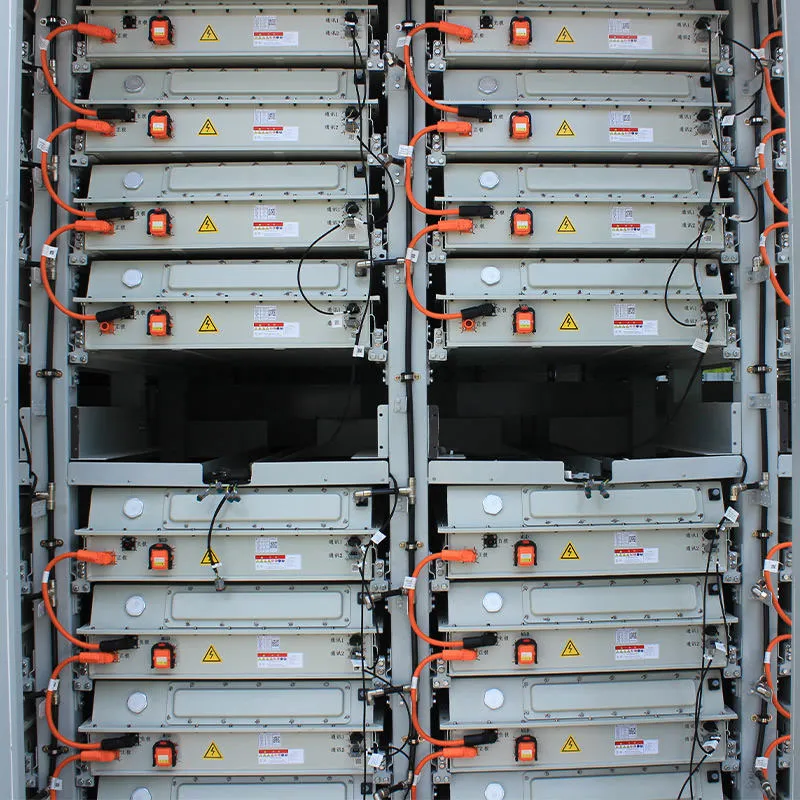

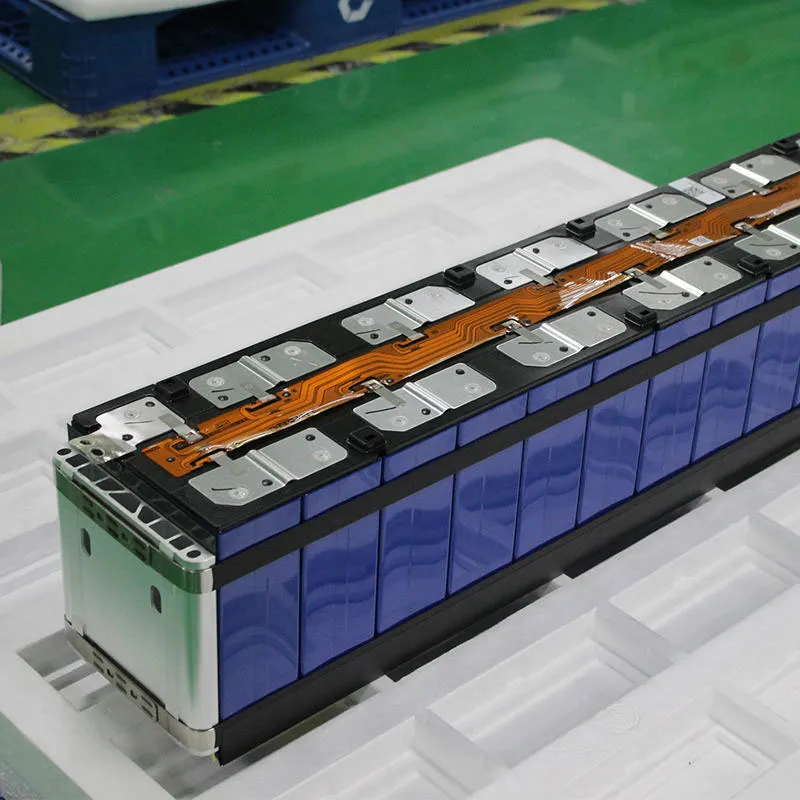

🔍 Detailed Product Views

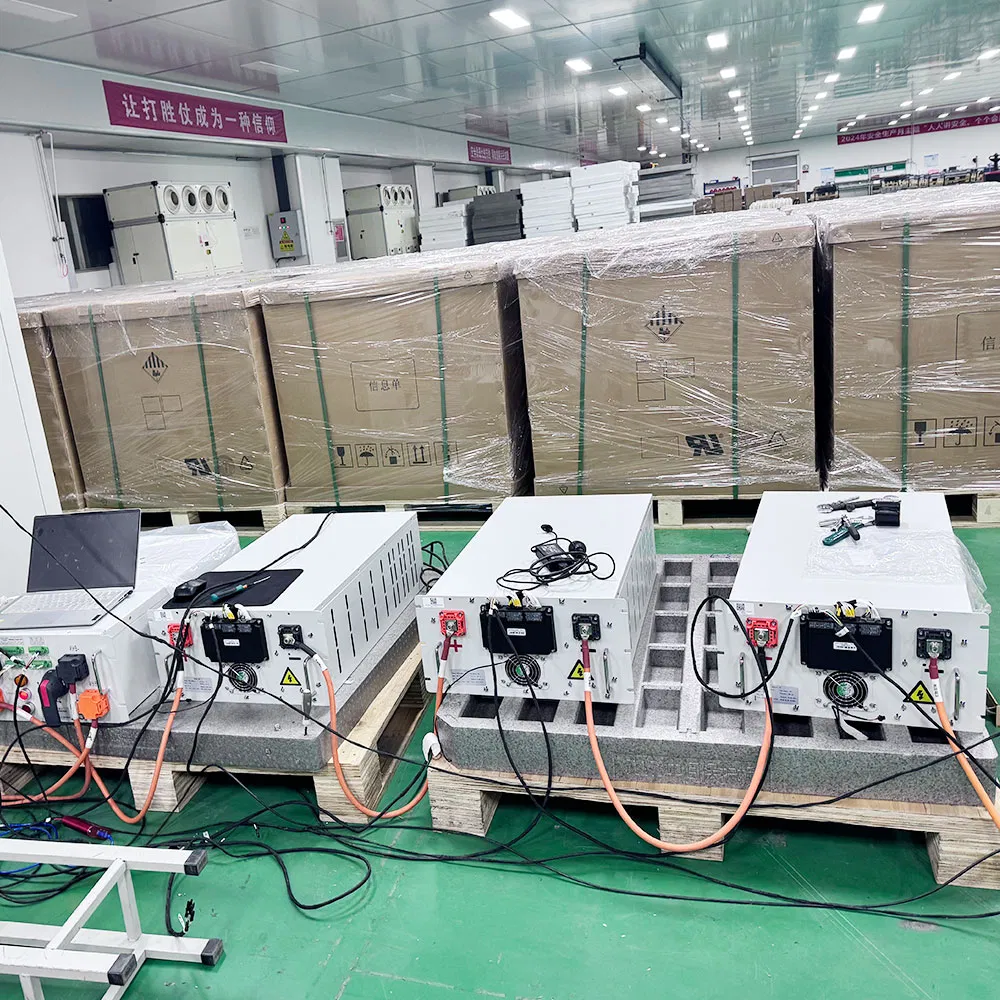

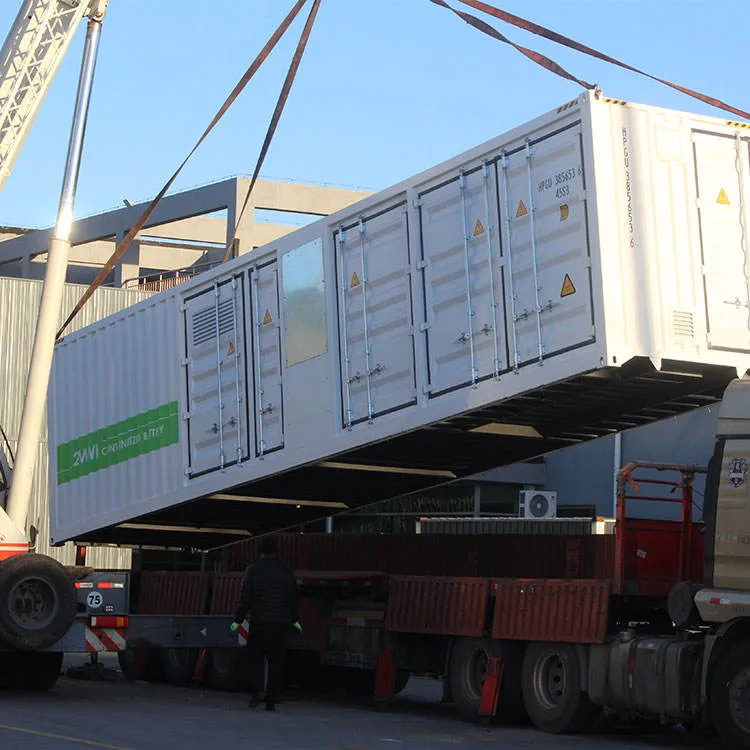

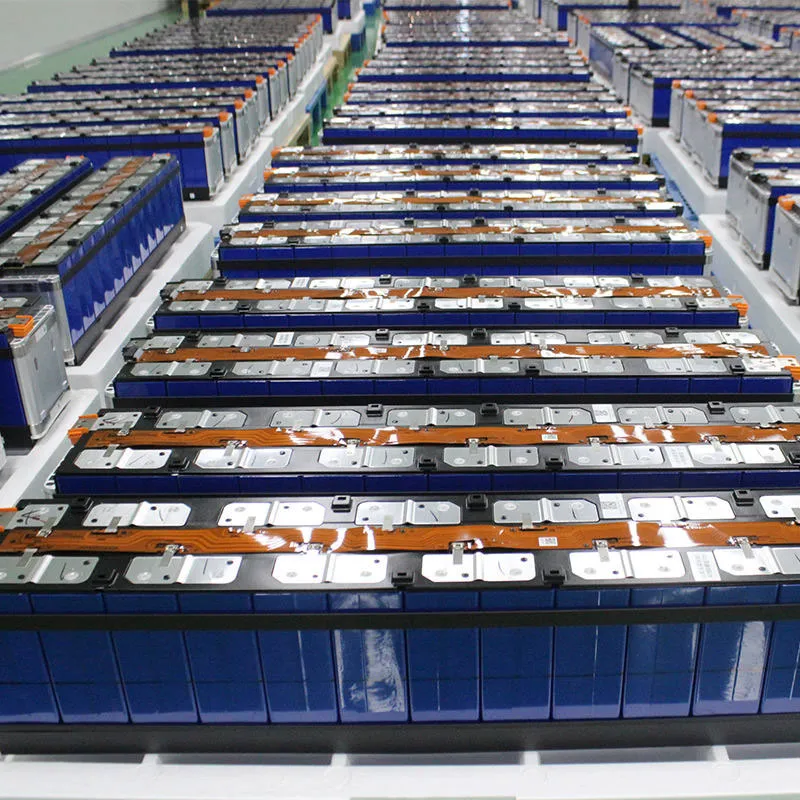

📦 Packaging & Logistics

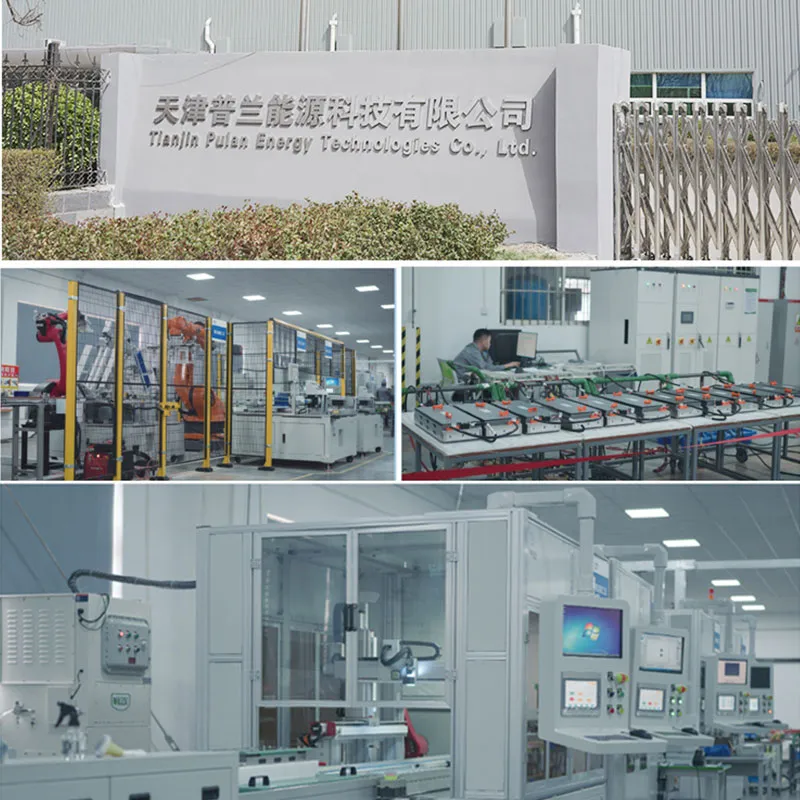

🏢 Industry Expertise
A high-tech enterprise focusing on the research, development, manufacturing, and technical service of graphene-based materials and their applications in clean energy. The entity is dedicated to supplying complete solutions for green-energy storage and power systems.

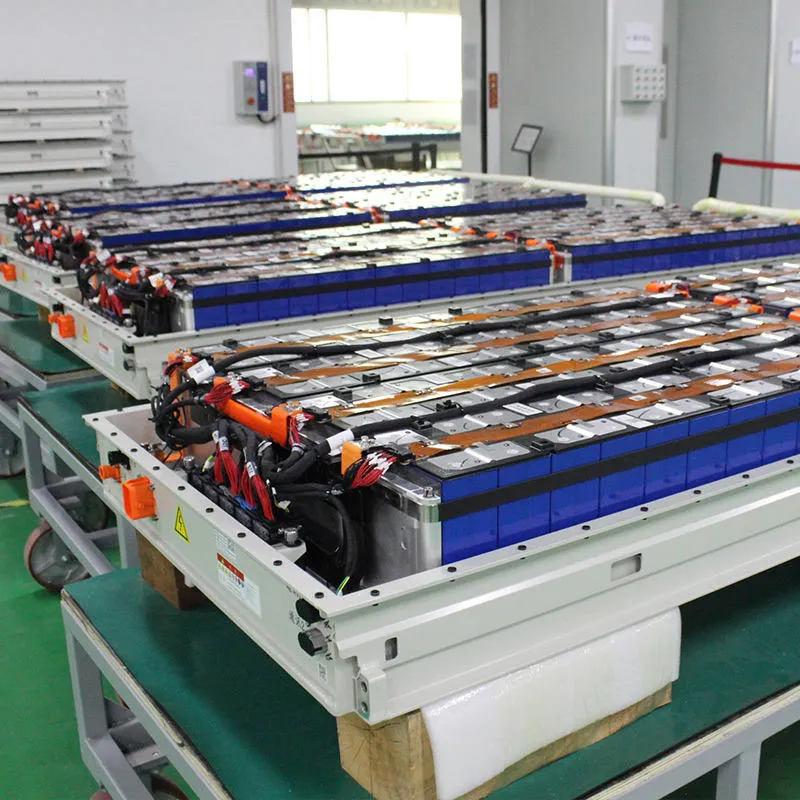

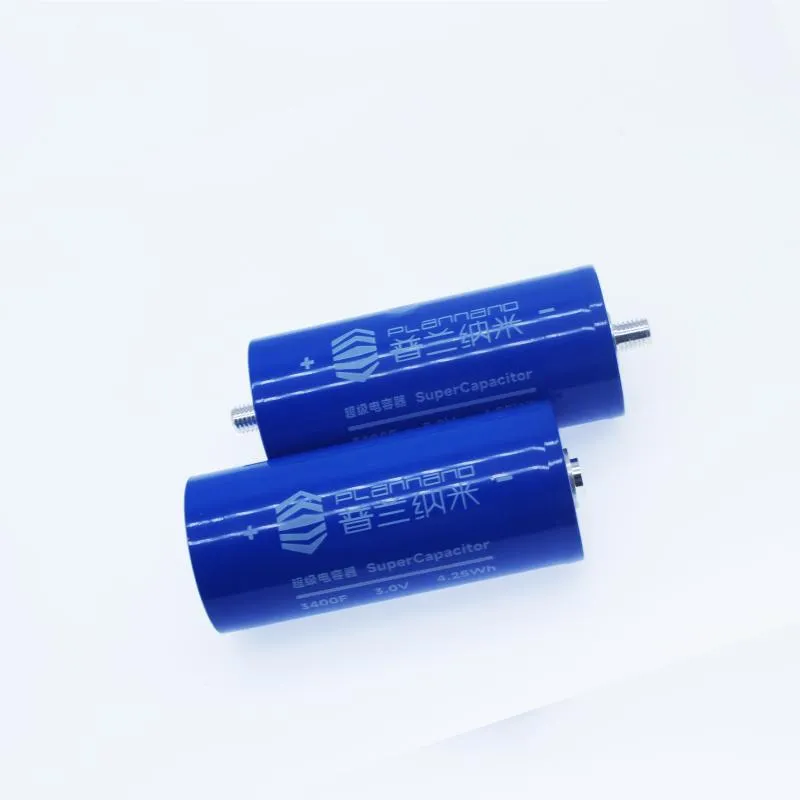

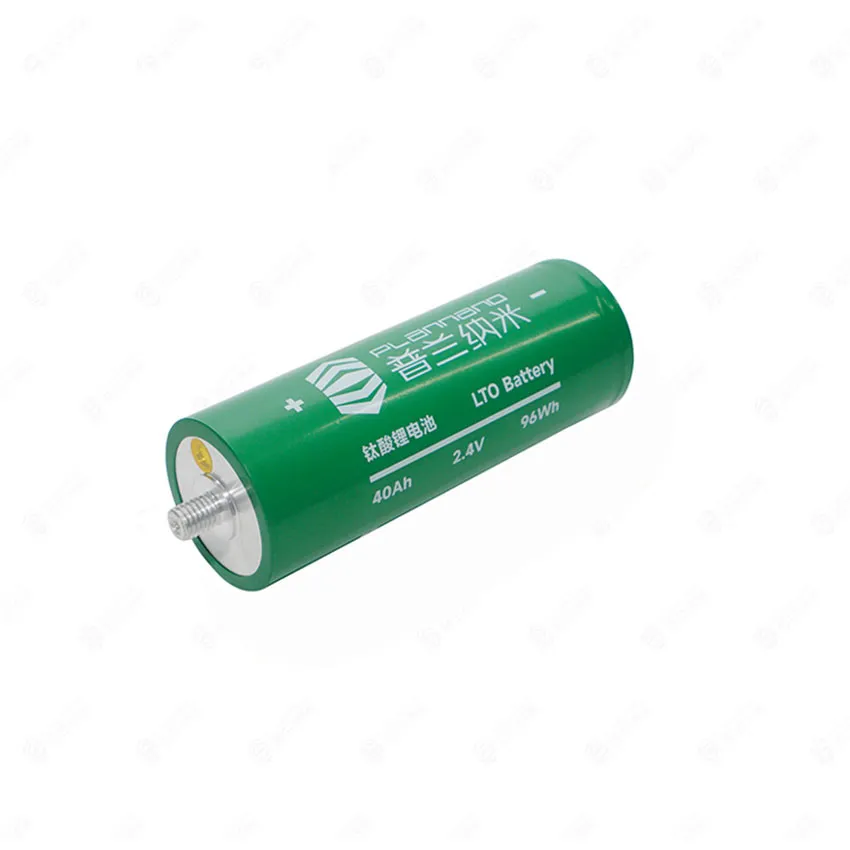

Equipped with high-standard test instruments and a top-class technical management team, the operation holds more than 50 patents in the preparation and application of advanced materials. Success has been achieved in mass-producing products including graphene, LTO, Si/C materials, and supercapacitor cells ranging from 0.1F to 3000F, as well as high-capacity battery modules.

These advanced solutions are widely applied in new-energy vehicles, rail transportation, smart grids, micro-grids, engineering machinery, and industrial energy-saving sectors. The focus remains on scientific achievement to manufacture high-quality clean-energy products and supply reliable systems for global green energy development.
Frequently Asked Questions
What is the expected cycle life of the battery cells?
The system features a cell life of ≥6000 cycles at 100% Depth of Discharge (DOD) before reaching 80% End of Life (EOL).
What are the environmental operating limits?
The system operates efficiently in temperatures ranging from -30℃ to 60ºC, with power derating applicable above 40ºC.
Is the fire extinguishing system included?
Yes, the system supports Aerosol or Perfluorocopper fire extinguishing options to ensure maximum safety.
Can this unit be installed at high altitudes?
Yes, the system is designed to function at a maximum altitude of up to 4000 meters.
How is the system monitored and controlled?
The unit includes a Touch Screen display and supports ModBus-TCP, ModBus-RTU, and IEC104 communication protocols for seamless integration.
What cooling methods are available for the converter?
The system can be configured with either air cooling or liquid cooling depending on the specific application requirements.
