off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
1 / 5
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage
off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage

off Grid Solar Power System 5kw 110 Voltage 220V Integrated Hot Sale Solar Energy Systems Home Ess Energy Storage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
SY1562
Protection
Overvoltage
Application
Home Power Supply
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Lead Time
20 Work Days
Life Time
5 Years
Product Size
45*35*15cm
Specification
48V 200Ah
Production Capacity
100PCS/Day
D

Product Description

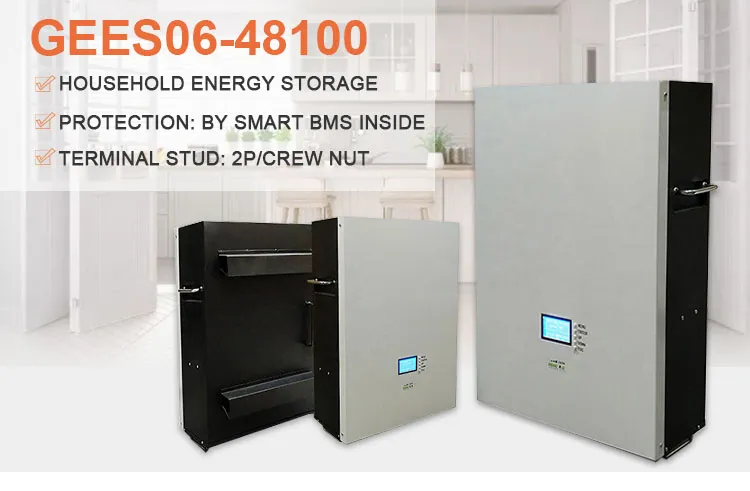

48V 100Ah Off-Grid Solar Energy Storage System Power Wall Battery System

Essential Details
Battery TypeLiFePO4 (Lithium Iron Phosphate)
Voltage51.2V
Capacity100AH
Cycle Life3000 Cycles
Net Weight57kg
CertificationCE, RoHS, UN38.3
T

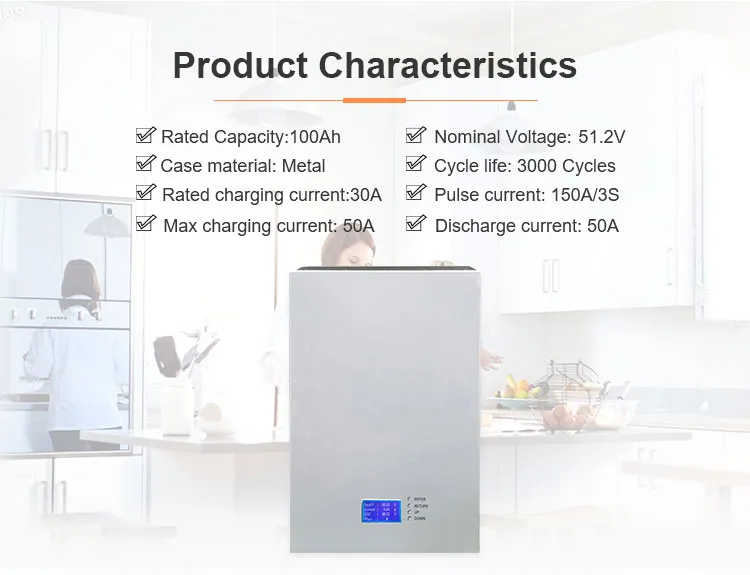

Technical Specifications

Performance Nominal Voltage51.2V
Rated Capacity100Ah

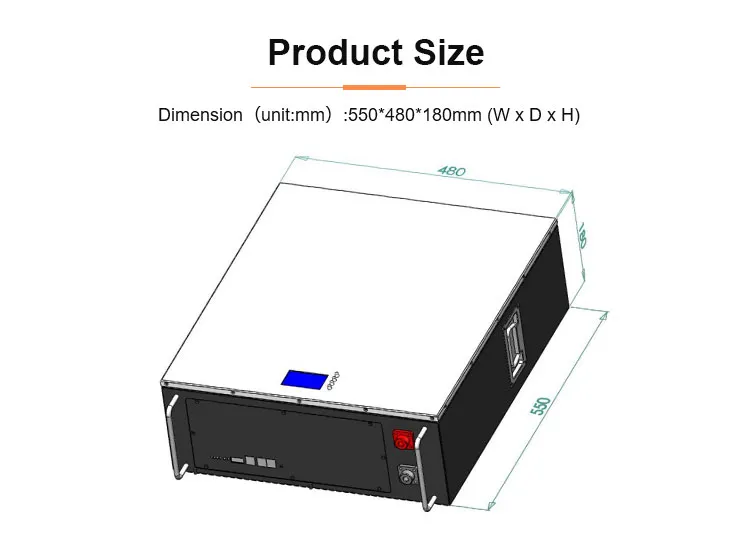

Battery Size550*480*180mm
Rated Charging Current30A
Max Discharging Current100A
Charging Cut-off Voltage56.8V~58.4V
Conditions Charge Temperature0 ~ 45ºC
Working Temperature-10 ~ 60ºC
Storage Humidity30%~75%
Functions ProtectionSmart BMS Built-in

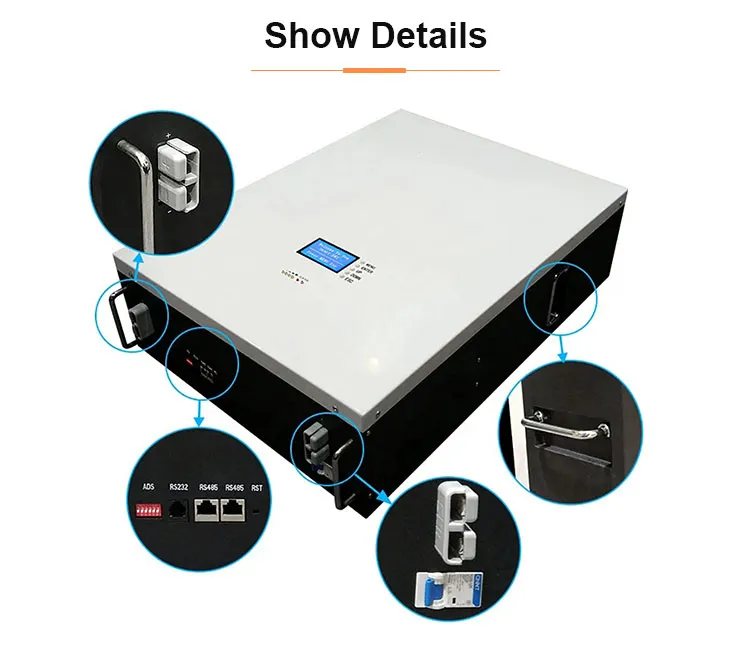

Communication PortCAN, RS485
Parallel SupportUp to 3 units
P

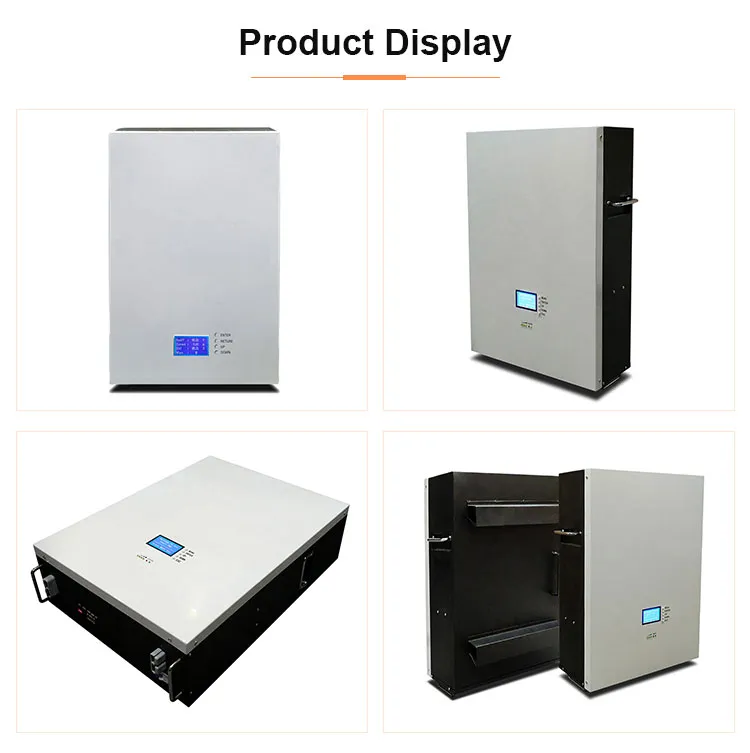

Product Showcase

Solar Storage 1
Solar Storage 2
Solar Storage 3
Solar Storage 4
Solar Storage 5
Solar Storage 6
Solar Storage 7
Solar Storage 8
?

Frequently Asked Questions

What type of battery cell is used in this system?
The system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) cells, known for their safety, stability, and long cycle life.
What is the expected lifespan of the battery?
The battery is designed for a cycle life of over 3,000 cycles and a total service life of approximately 5 years depending on usage.
Does the system include protection features?

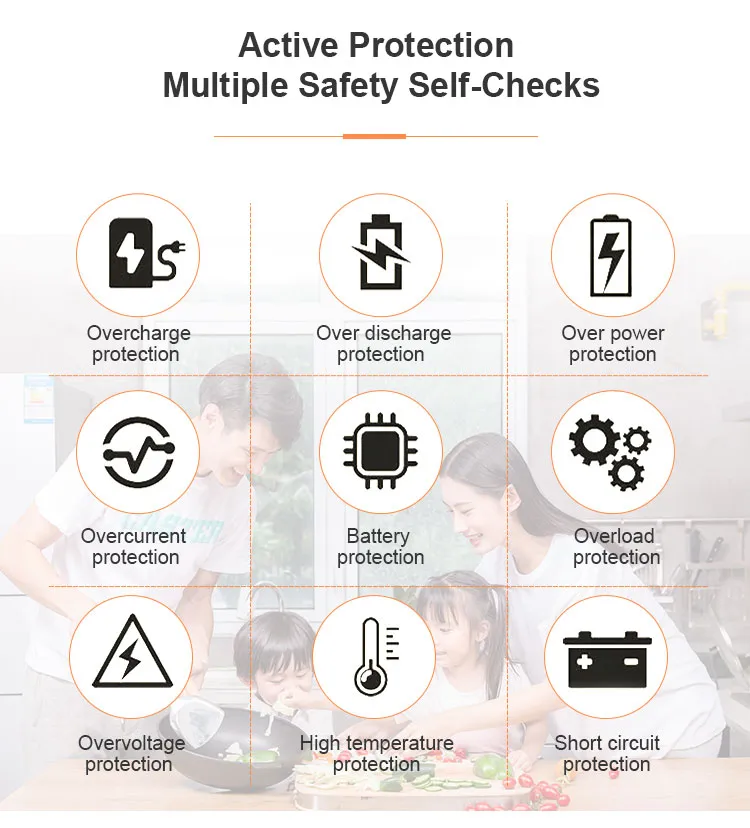

Yes, it features a built-in Smart BMS (Battery Management System) that provides protection against overvoltage, low voltage, overtemperature, overload, and short circuits.
Can multiple battery units be connected together?
Yes, the system supports parallel connection of up to 3 units, provided the voltage difference between packs is ≤0.5V.
What are the primary applications for this energy storage system?
It is ideal for off-grid solar energy storage, household power backup, telecommunications, and other home energy storage solutions.
What communication protocols are supported?
The battery system supports standard CAN and RS485 communication ports for easy integration with inverters and monitoring systems.
