Yangde Integrated off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

yd-sps-0090

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, 5KW

Solar Panel

Mono Type

Battery

Lithium/Gel

Inverter

Intelligent

Type

Off-Grid

Transport Package

Wooden Box

HS Code

8541402000

Capacity

5000 Pcs/Month

Product Description

Integrated Off-Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

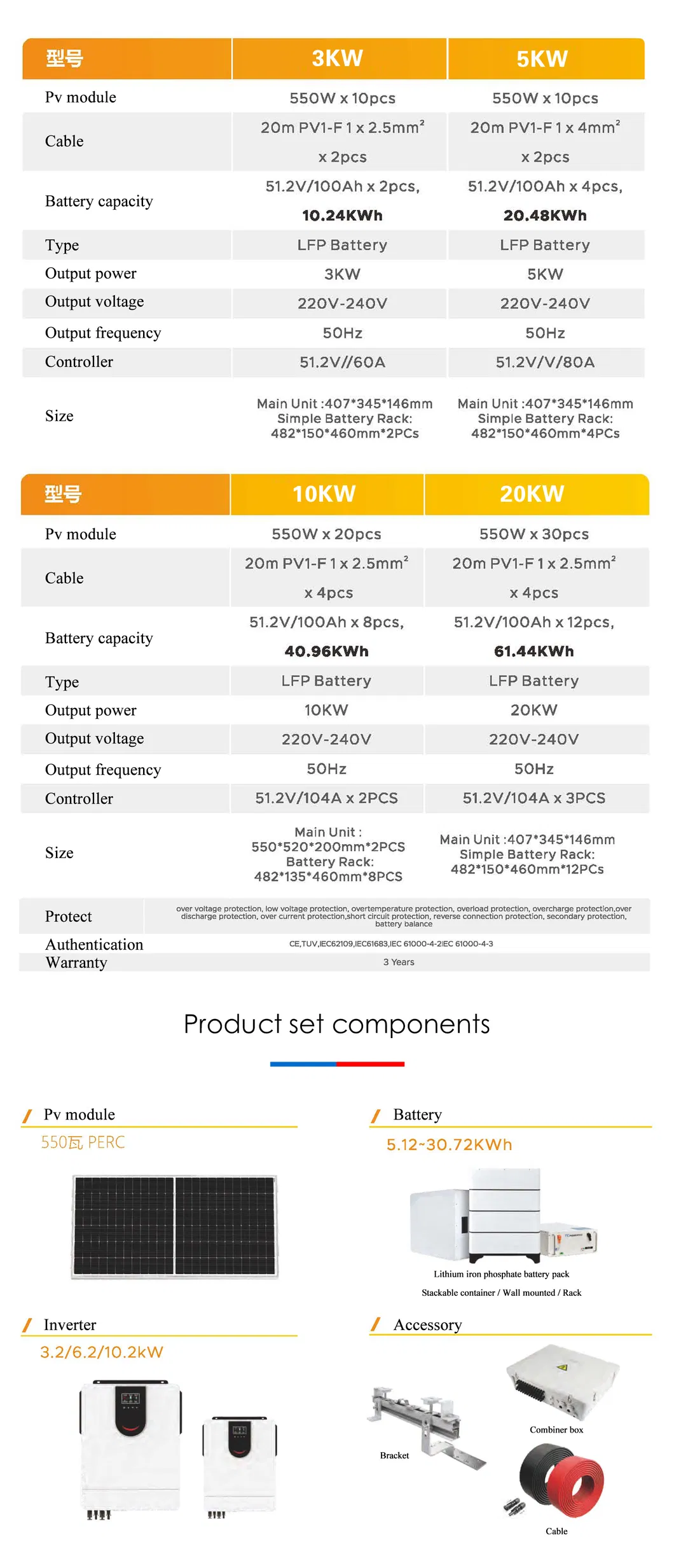

Model	5KW	10KW	15KW	20KW

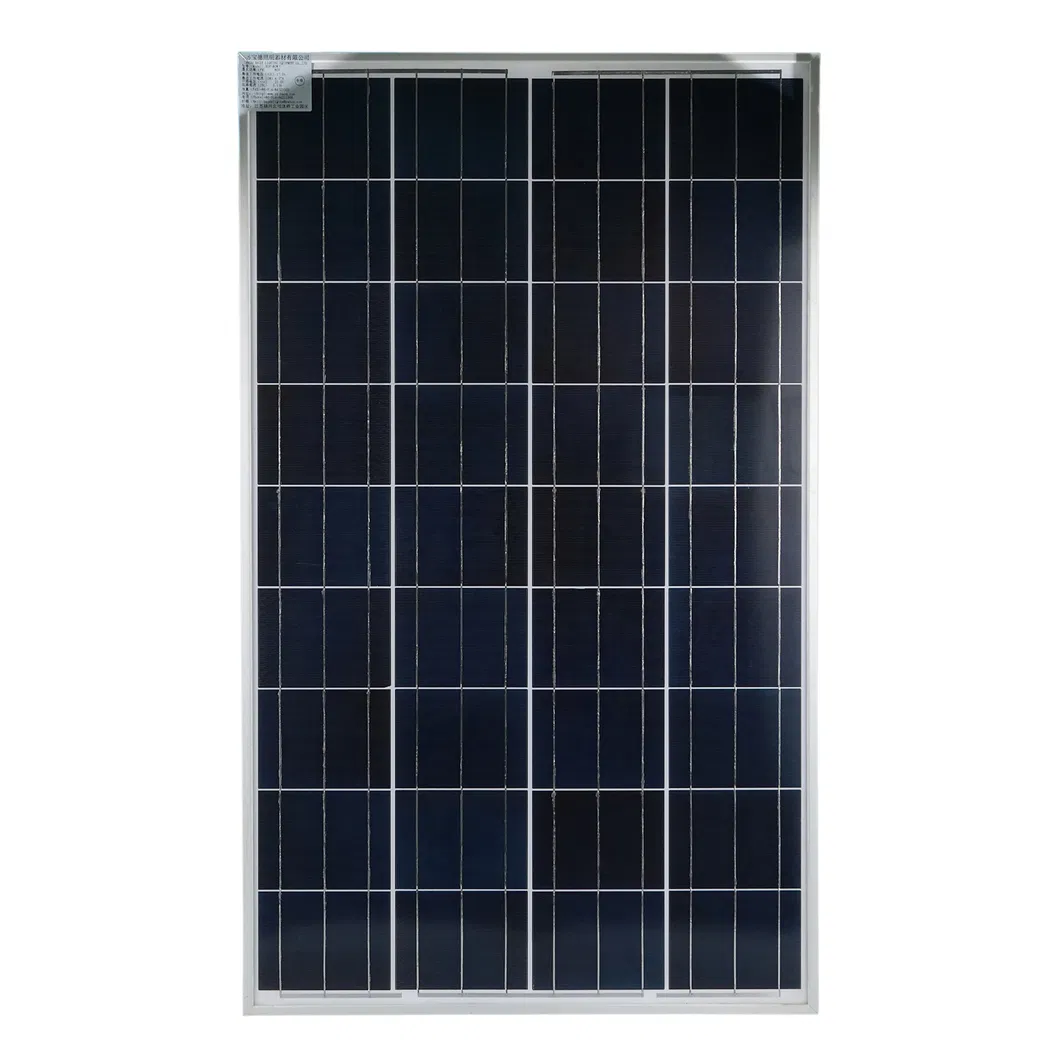

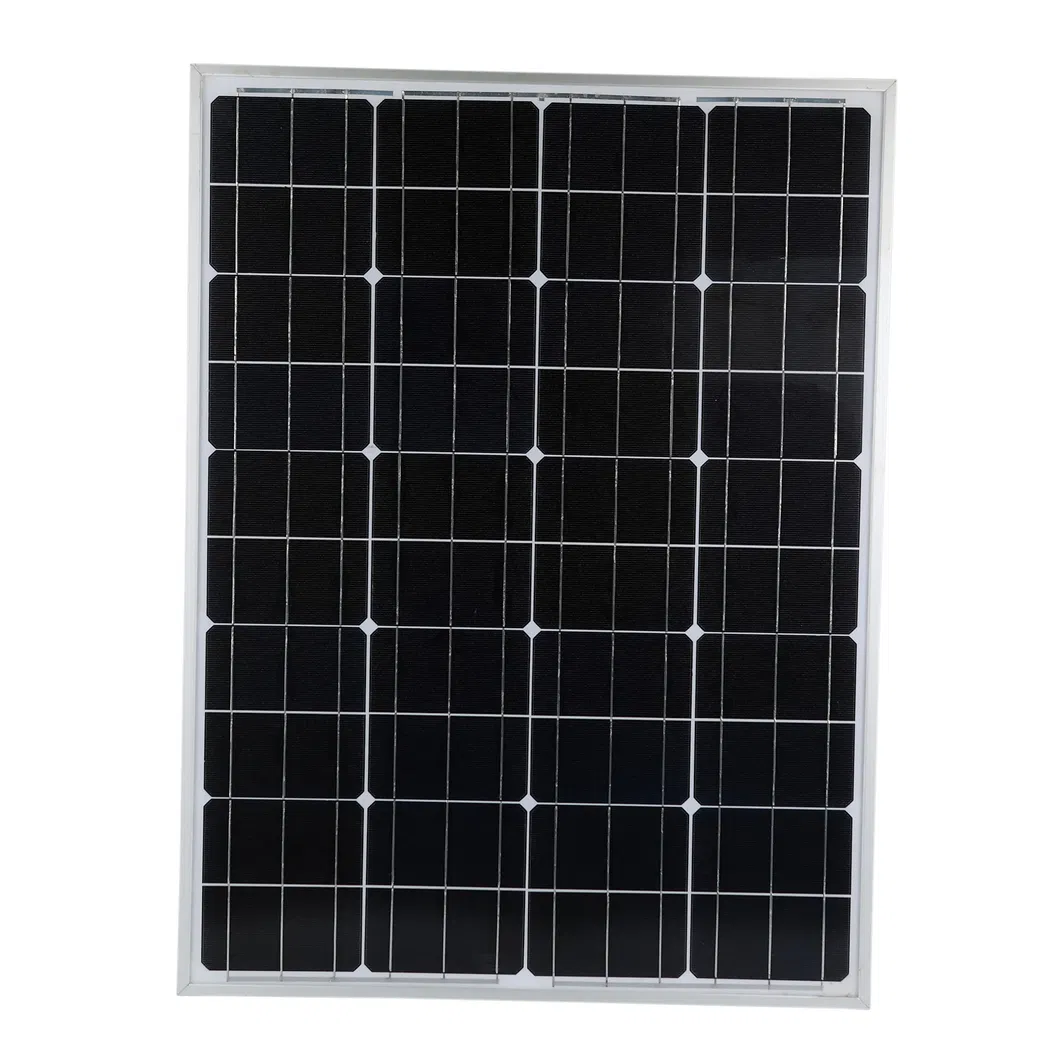

Solar Panel
Size	250W
Quantity	20PCS	40PCS	60PCS	80PCS
Connection	5 Series*4 String	10 Series*4 String	10 Series*6 String	10 Series*8 String
Control Reverse Machine
Size	96V/8KVA	192V/15KVA	216V/30KVA	216V/30KVA
Feature	AC output 220VAC, 50/60HZ, sine wave; Support mains/diesel input

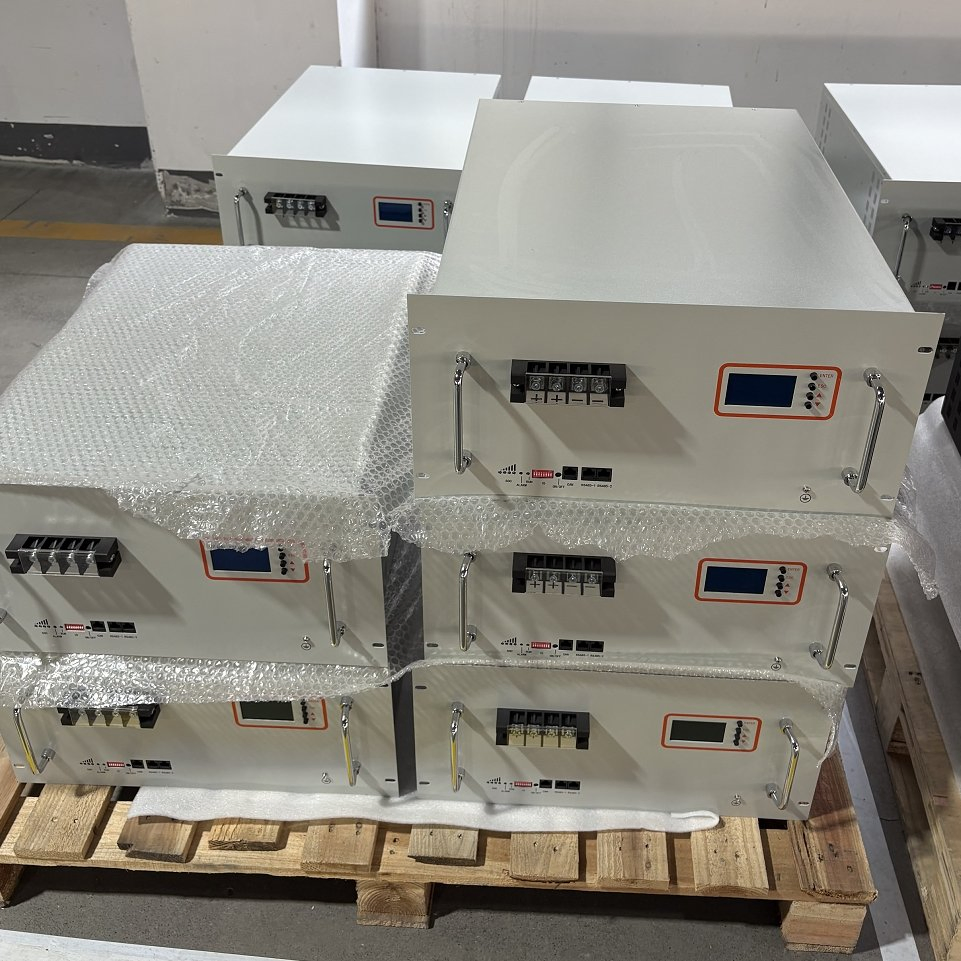

Battery
Size	200AH/12V
Quantity	8PCS	16PCS	36PCS	36PCS
Performance	2KW load 8H	5KW load 6H	8KW load 8H	8KW load 8H
Instruction
Max Load	≤3KW	≤12KW	≤24KW	≤24KW
Charging Time	About 5-6H

Why Choose Our Solution

One-stop Service

Solutions for street lighting, square lighting, landscape, and commercial lighting.

Integrated Production

We manufacture main components including LED sources, solar panels, and poles to ensure cost-effectiveness.

10 Years Experience

Reliable manufacturing expertise since 2012 in the outdoor lighting and solar industry.

Advanced Technology

Over 20 national patents and collaboration with top institutes for R&D.

Our Services & Maintenance

Warranty: 2-year guarantee for new solar lighting systems covering defects in materials and workmanship.

Installation: Detailed instructions and videos provided. Onsite training available for large projects.

Maintenance Schedule:
• Weekly: Inspect light functionality.
• Bi-Monthly: Clean solar panels from dust/sand.
• 5-7 Years: Replace batteries if voltage drops.

Frequently Asked Questions

What appliances can this solar system power?

The system is designed to provide power for household appliances such as televisions, computers, fans, lights, and air conditioners.

How long does it take to fully charge the system?

Under standard conditions, the component charging time is approximately 5 to 6 hours.

Does the system support backup power from other sources?

Yes, the intelligent inverter supports both mains electricity and diesel generator input as backup.

What is the expected lifespan of the batteries?

The batteries have an expected service life of five to seven years, depending on usage and environmental conditions.

Is maintenance difficult for the outdoor cabinet?

The system is designed to be essentially maintenance-free. Periodic cleaning of solar panels and weekly inspections are recommended for optimal performance.

Do you offer customized solutions?

Yes, we provide ODM and OEM services to meet specific requirements for different project scales and technical specifications.
